Dodge Stealth 1994 - Luggage Compartment

8-54

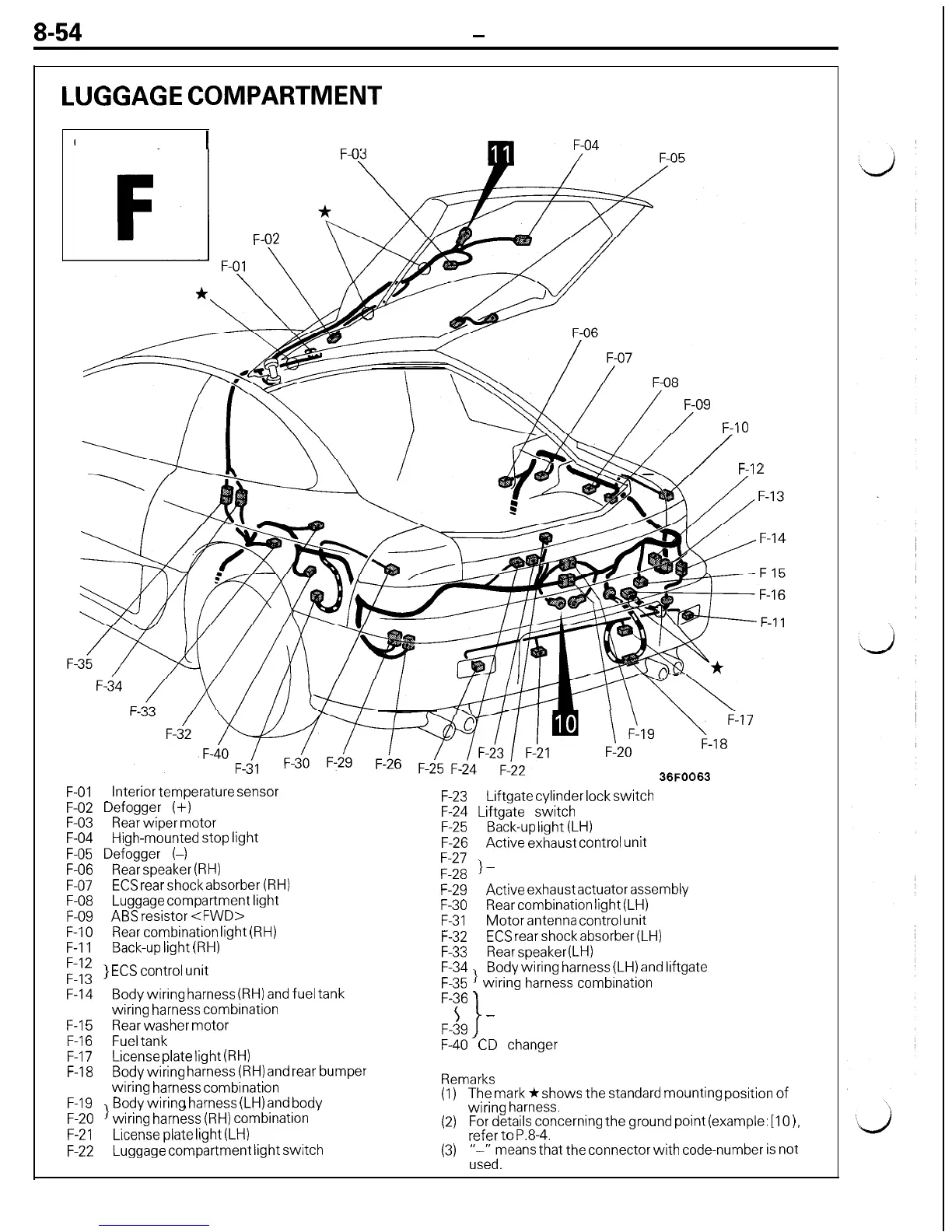

CONFIGURATION DIAGRAMS - Luggage Compartment
LUGGAGE COMPARTMENT
Connector symbol 1
F-03
F-02
F-01
\ \
-?k/
/ ;;,, F-IO
-/ h --
F-l 2
F-34
!,“I’
‘-18’-17
36FOO63
F-01
Interior temperature sensor
F-02 Defogger (+)
F-03 Rear wiper motor
F-04 High-mounted stop light
F-05 Defogger (-)
F-06 Rear speaker (RH)
F-07 ECS rear shock absorber (RH)
F-08 Luggage compartment light
F-09 ABS resistor <FWD>
F-IO Rear combination light (RH)
F-l 1 Back-up light (RH)
F11 z } ECS control unit
F-14 Body wiring harness (RH) and fuel tank
wiring harness combination
F-l 5 Rear washer motor
F-l 6 Fuel tank
F-l 7 License plate light (RH)
F-18 Body wiring harness (RH) and rear bumper
wiring harness combination
F-l 9 Body wiring harness (LH) and body
F-20 ) wiring harness (RH) combination
F-21 License plate light (LH)
F-22 Luggage compartment light switch
F-23 Liftgate cylinder lock switch
F-24 Liftgate switch
F-25 Back-up light (LH)
F-26 Active exhaust control unit
;I;; I-
F-29 Active exhaust actuator assembly
F-30 Rear combination light (LH)
F-31
Motor antenna control unit
F-32 ECS rear shock absorber (LH)
F-33 Rear speaker (LH)
F-34 Body wiring harness (LH) and liftgate
F-35 ) wiring harness combination
F-36
\ -
F-39
I
F-40 CD changer
Remarks
(1) The mark Sr shows the standard mounting position of
wiring harness.
(2) For details concerning the ground point (example: [IO ),
refer to P.8-4.
(3) “s’dmeans that the connector with code-number is not
