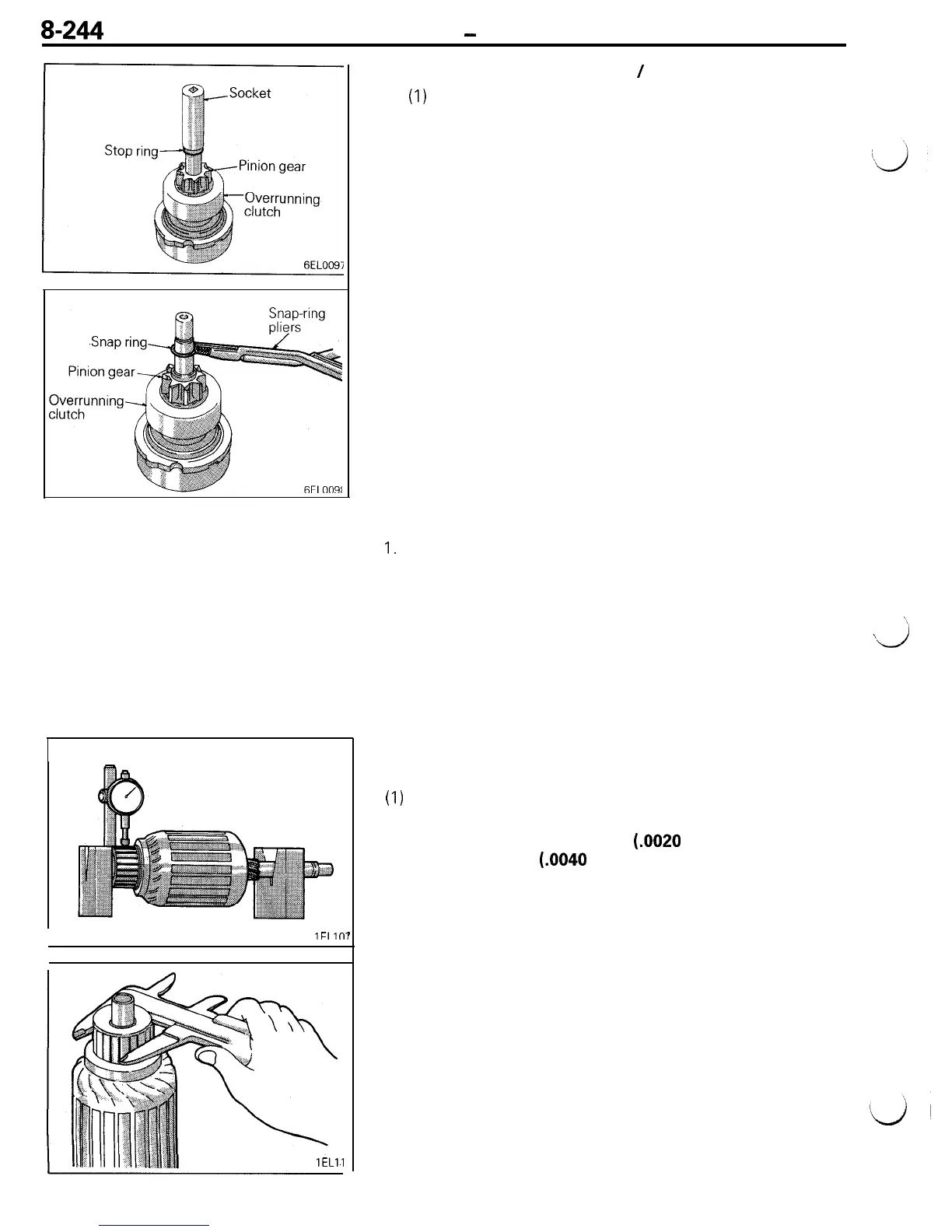

17. REMOVAL OF SNAP RING
/
18. STOP RING
(1)
Press the stop ring, by using an appropriate socket
wrench, to the snap ring side.
(2) After removing the snap ring (by using snap-ring pliers),
remove the stop ring and the overrunning clutch.
,
CLEANING STARTER MOTOR PARTS
1.
Do not immerse parts in cleaning solvent. Immersing the
yoke and field coil assembly and/or armature will damage
insulation. Wipe these parts with a cloth only.
2.
Do not immerse drive unit in cleaning solvent. Overrunning
clutch is pre-lubricated at the factory and solvent will wash
x5
lubrication from clutch.
\
a
3.
The drive unit may be cleaned with a brush moistened with
cleaning solvent and wiped dry with a cloth.
INSPECTION
CHECKING THE COMMUTATOR
(1)
Place the armature on a pair of V-blocks, and check the
deflection by using a dial gauge.
Standard value: 0.05 mm
(.0020
in.)
Limit: 0.1 mm
(.0040
in.)
(2) Check the outer diameter of the commutator.
Standard value: 29.4 mm (1.158 in.)
Limit: 28.4 mm (1.118 in.)
