CIRCUIT DIAGRAMS - MFI Circuit <DOHC NON TURBO>

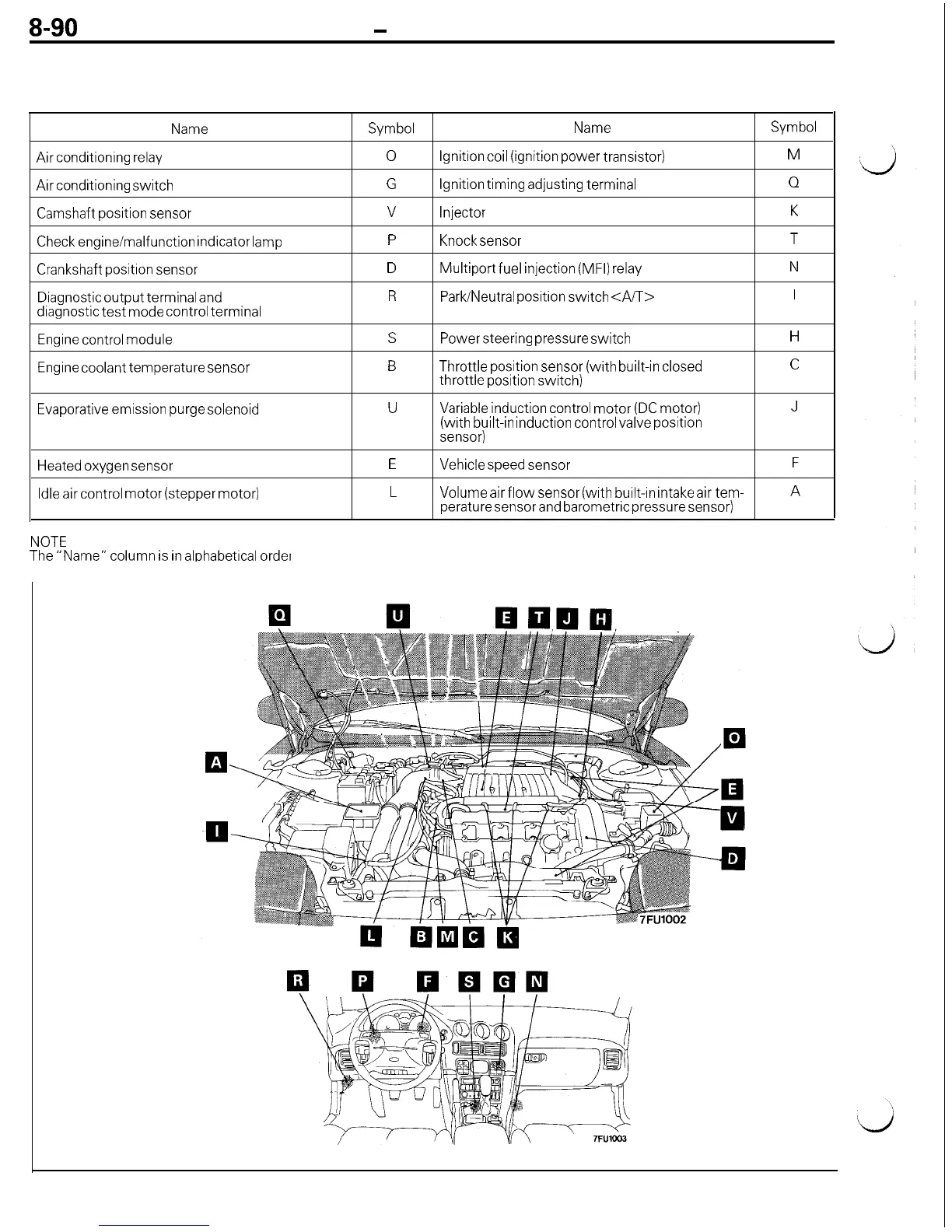

COMPONENT LOCATION
<DOHC NON TURBO> (FEDERAL AND CANADA)
Name
Air conditioning relay
Air conditioning switch
Camshaft position sensor
Check engine/malfunction indicator lamp
Crankshaft positron sensor
Diagnostic output terminal and
diagnostic test mode control terminal
Engine control module
Engine coolant temperature sensor
Evaporative emission purge solenoid
Heated oxygen sensor
Idle air control motor (stepper motor)
Symbol
Name
Symbol
0
Ignition coil (ignition power transistor)
M
G Ignition timing adjusting terminal
0
V Injector
K
P
Knock sensor
T
D
Multiport fuel injection (MFI) relay
N
R
Park/Neutral position switch <A/T>
I
S
Power steering pressure switch
H
B Throttle position sensor (with built-in closed
C
throttle position switch)
u Variable induction control motor (DC motor)
J
(with built-in induction control valve position
sensor)
E
Vehicle speed sensor
F
L
Volume air flow sensor (with built-rn intake air tem-
A
perature sensor and barometric pressure sensor)
NOTE
The “Name” column is in alphabetical order
