Dodge Stealth 1994 - Generator (SOHC) Removal and Installation

ENGINE ELECTRICAL - Charging System
8-231 ’

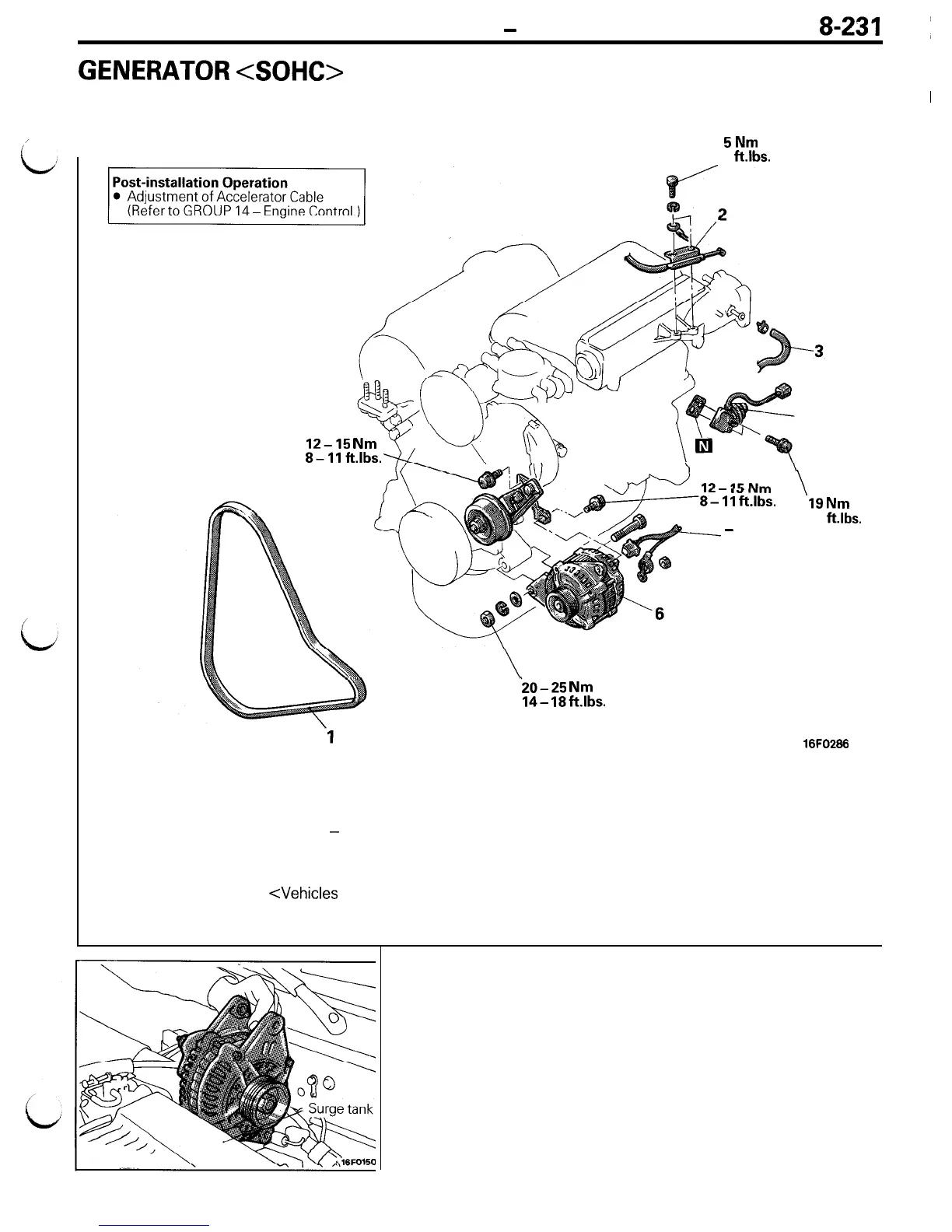

GENERATOR <SOHC>
REMOVAL AND INSTALLATION
I
5Nm
4 ft.lbs.
12-15
8-llf
B-&L,
/
4
Nm
t.lbs.
\
IL- I.# a”,,,
8- 11 ft.lbs.
‘19 Nm
-.J- -
* -
5
\
bO-25 Nm
14- 18ft.lbs.
Removal steps
1. Drive belt
(Refer to GROUP 9 - Service Adjustment
Procedures.)
l *
2. Accelerator cable
3. Connection of brake booster vacuum hose
4. EGR valve <Vehicles for California>
5. Connection of generator connector
6. Generator
13 ft.lbs.
16FO266
‘SERVICE POINT OF REMOVAL
6. REMOVAL OF GENERATOR
Take out the generator from behind the surge tank at the
center of the vehicle.
