CHASSIS ELECTRICAL
-
Radio and Tape Player
8-399
E-2 Motor antenna extends and retracts but does not receive.
>
No
Is
the antenna* itself OK?
Repair or replace it.
Yes
Is
operation normal when a new antenna assembly
is
directly installed to the radio?
Refer to
B.
“Radio trouble
shooting”.
Yes

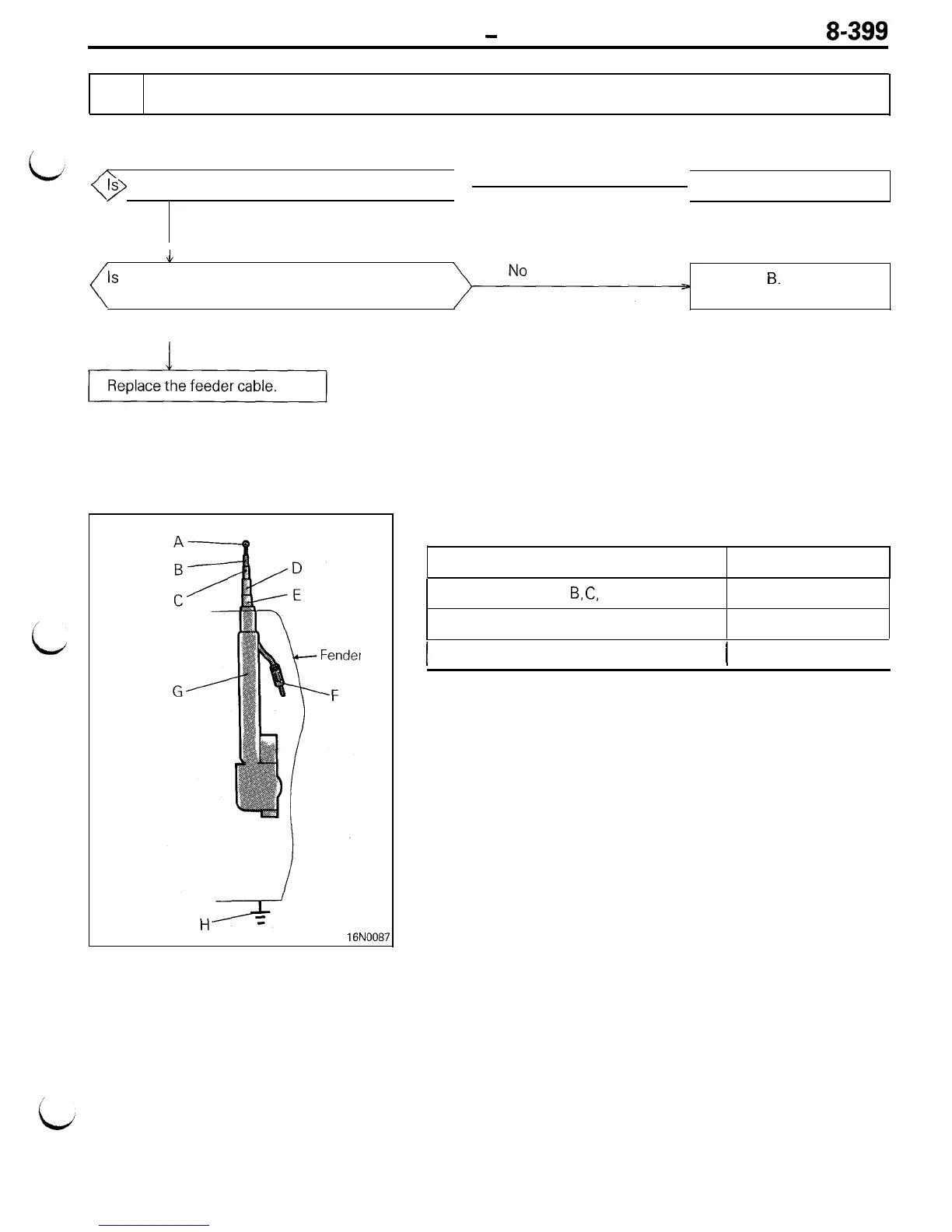

Checking the antenna*
Ohmmeter measurement locations
Result
Circuits from F to A,
B,
C,
D and E
Circuit between G and H
Continuity
Continuity
I
Circuits from H to A, B, C, D and E
I
No continuity
I
