Dodge Stealth 1994 - Round Waterproof Connector

8-26

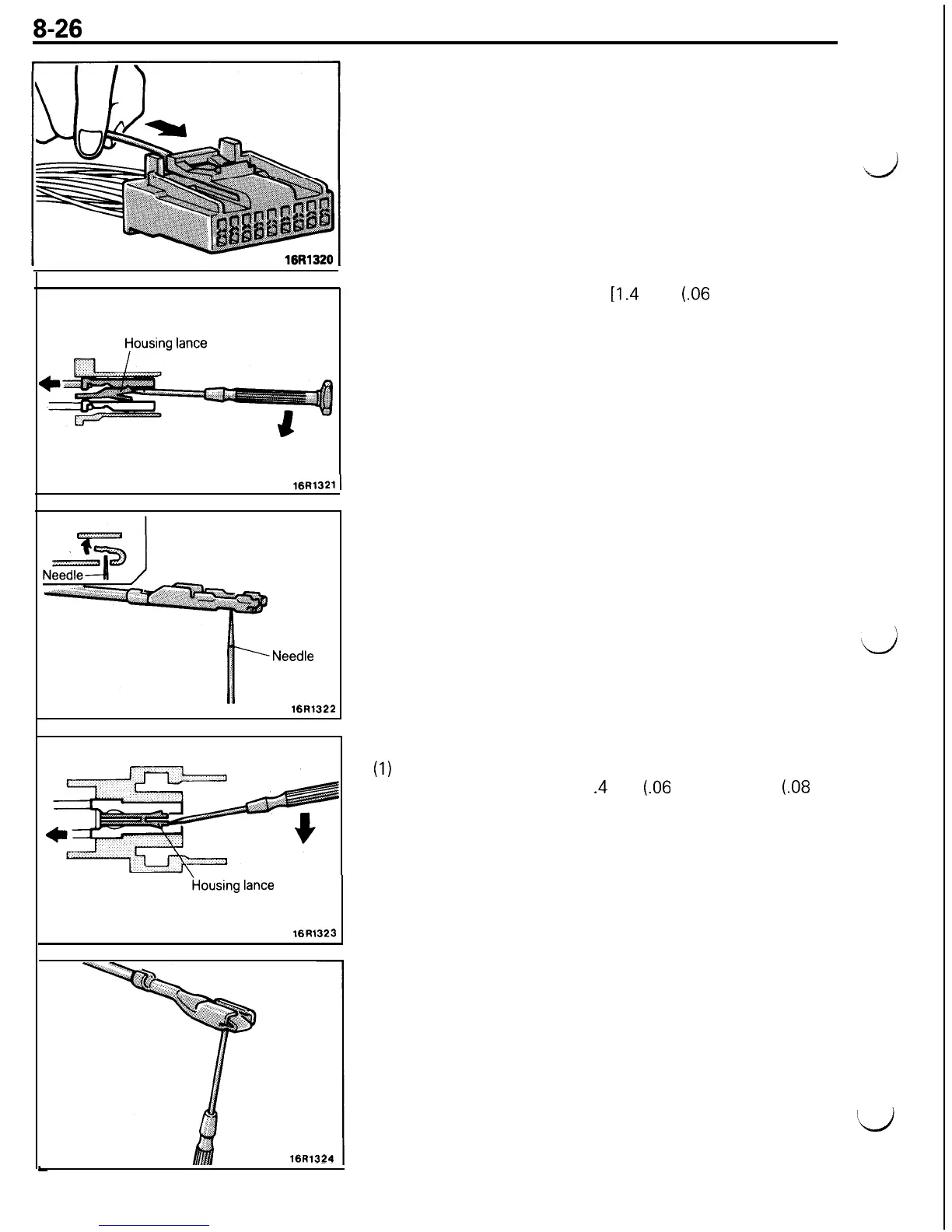

HARNESS CONNECTOR INSPECTION
(2) Insert harness of terminal to be rectified deep into
connector from harness side and hold it there.
Housing lance
16R13211
Needle
16t71322
j-lousing lance
16R1323
-1
16R1324
(3) Insert tip of screwdriver [I.4 mm (.06 in.) width] into
connector in a manner as shown in the figure, raise housing
lance slightly with it and pull out harness.
Caution
Tool No. 753787-l supplied by AMP can be used instead
of screwdriver.
(4) Insert needle through a hole provided on terminal and raise
contact point of male terminal.
ROUND WATERPROOF CONNECTOR
(1) Remove waterproof cap by using a screwdriver.
(2)
Insert tip of screwdriver [I .4 mm (.06 in.) or 2.0 mm (.08 in.)
width] into connector in a manner as shown in the figure,
raise housing lance slightly with it and pull out harness.
(3) Insert screwdriver through a hole provided on terminal and
raise contact point of male terminal.
