Dodge Stealth 1994 - Engine and Transaxle (DOHC-A;T)

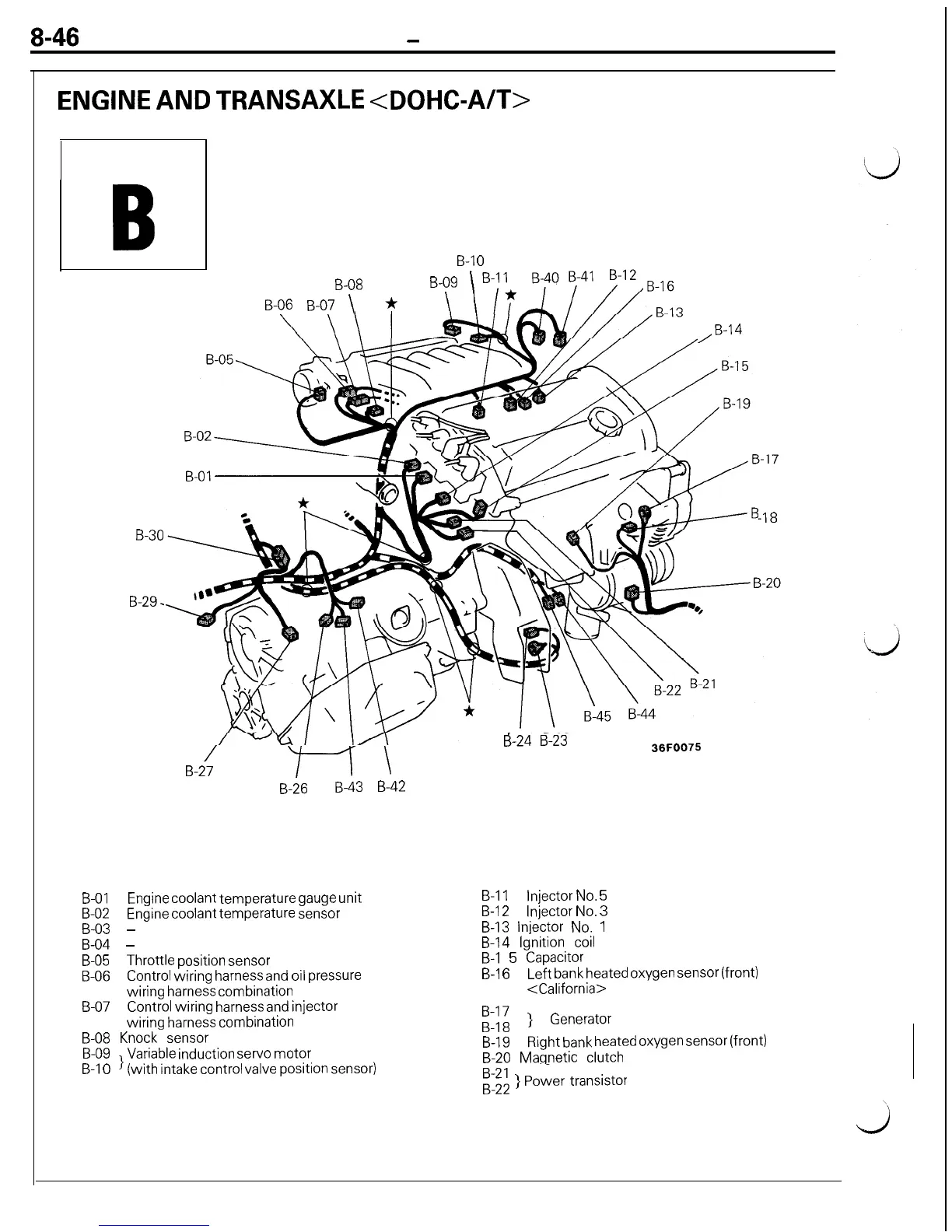

8-46 CONFIGURATION DIAGRAMS -
Engine and Transaxle <DOHC-A/T>
ENGINE AND TRANSAXLE <DOHC-A/T>
Connector symbol
B
Front View
B-l 0
B-08
B-09
B-06 B-07 \
\
I
B-30
B-29.
/
B-27
7-M
B-26
B-43 B-42
I
/B-l4
B-01
Engine coolant temperature gauge unit
B-02
Engine coolant temperature sensor
B-03 -
B-04 -
B-05
Throttle position sensor
B-06
Control wiring harness and oil pressure
wiring harness combination
B-07
Control wiring harness and injector
wiring harness combination
B-08 Knock sensor
B-09
Variable induction servo motor
B-l 0
} (with intake control valve position sensor)
B-24 B-23
36FOO75
-18
B-l 1 Injector No. 5
B-l 2 Injector No. 3
B-13 Injector No. 1
B-14 Ignition coil
B-l 5 Capacitor
B-l 6 Left bank heated oxygen sensor (front)
<California>
:I!,: } Generator
B-19
Right bank heated oxygen sensor (front)
B-20 Magnetic clutch
iI;i } Power transistor
