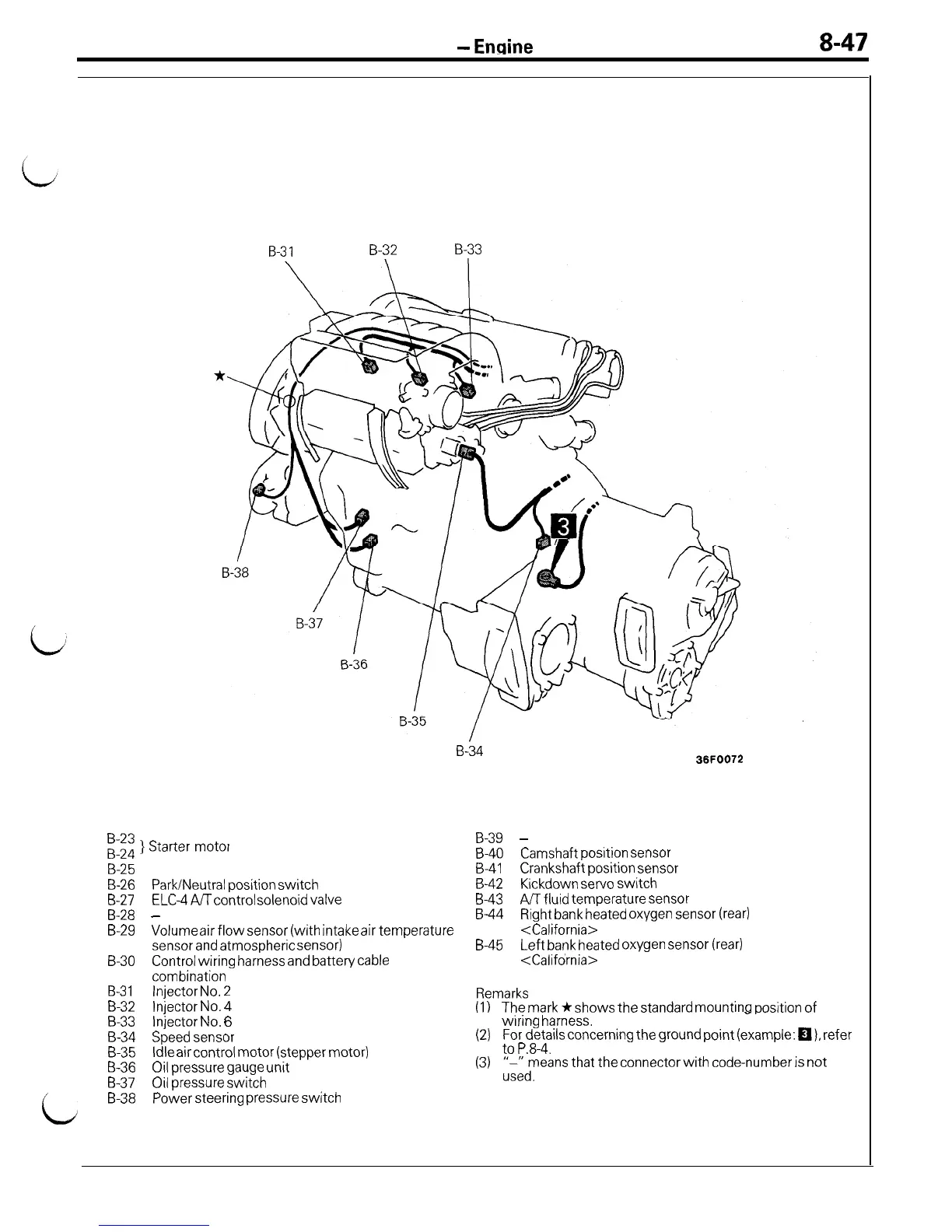

CONFIGURATION DIAGRAMS - Engine and Transaxle <DOHC-A/T>
8-47
:ygi } Starter motor
Rear View
B-3 1
B-32
B-33
B-25
B-26
B-27
B-28
B-29
B-30
B-3 1
B-32
B-33
B-34
B-35
B-36
B-37
i
B-38
Park/Neutral position switch
ELC-4 AfT control solenoid valve
-
Volume air flow sensor (with intake air temperature
sensor and atmospheric sensor)
Control wiring harness and battery cable
combination
Injector No. 2
Injector No. 4
Injector No. 6
Speed sensor
Idle air control motor (stepper motor)
Oil pressure gauge unit
Oil pressure switch
Power steering pressure switch
B-34
36FOO72
B-39 -
B-40 Camshaft position sensor
B-41 Crankshaft position sensor
B-42 Kickdown servo switch
B-43 AIf fluid temperature sensor
B-44 Right bank heated oxygen sensor (rear)
<California>
B-45 Left bank heated oxygen sensor (rear)
<California>
Remarks
(I 1 The mark + shows the standard mounting position of
-
wiring harness.
(2) For details concerning the ground point (example: Q), refer
to P.8-4.
(3) ;;ldmeans that the connectorwith code-number is not
