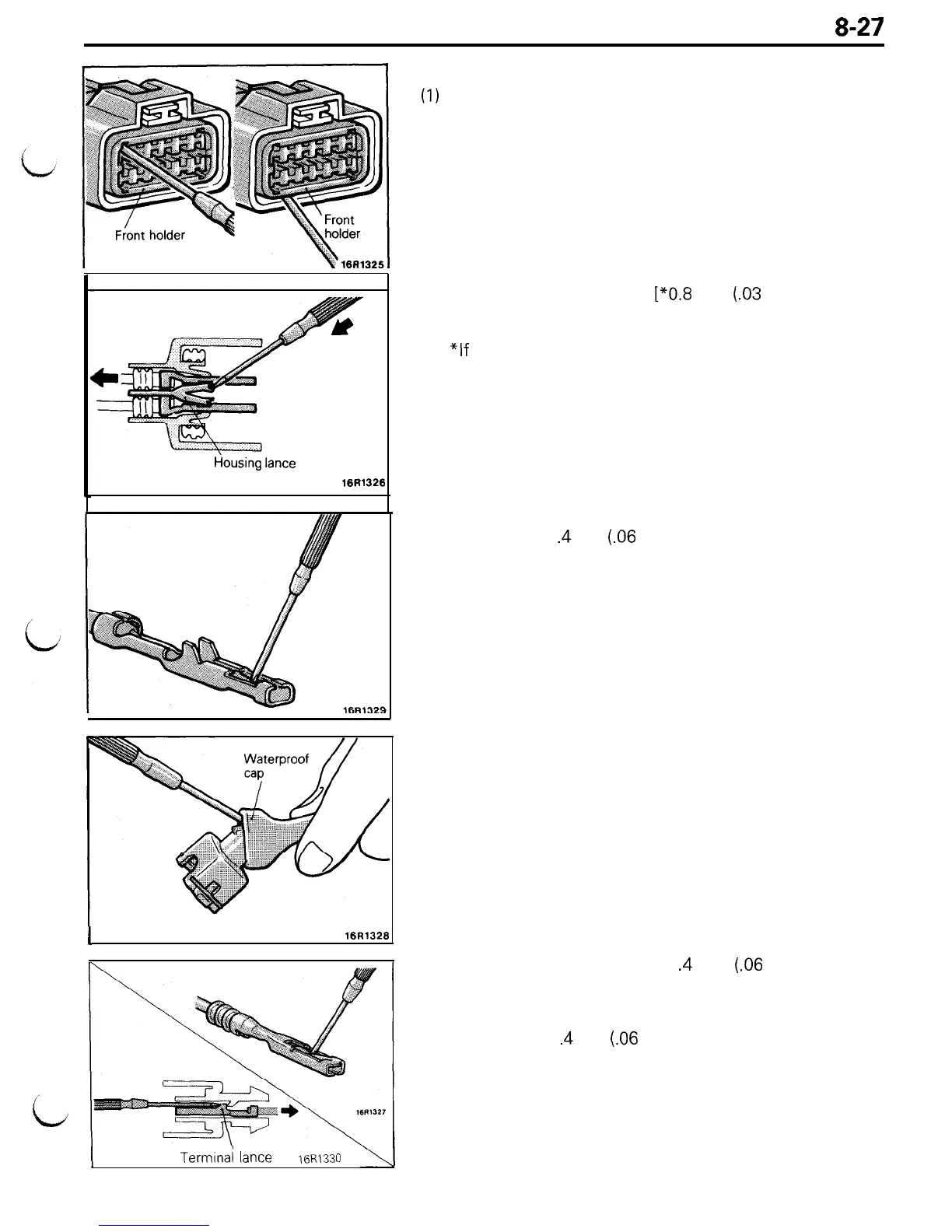

HARNESS CONNECTOR INSPECTION
8-27
RECTANGULAR WATERPROOF CONNECTOR
(1)
Disengage front holder by using a screwdriver and remove
it.
Housing
lance
16Rl326
I
16R1326
(2) Insert tip of screwdriver [*0.8 mm
(.03
in.) width] into
connector in a manner as shown in the figure, push it lightly
to raise housing lance and pull out harness.
*If
right size screwdriver is not available, convert a
conventional driver to suit the size.
(3) Press contact point of male terminal down by holding a
screwdriver [I
.4
mm
(.06
in.) width] in a manner as shown
in the figure.
INJECTOR CONNECTOR
(1) Remove waterproof cap.
(2) Insert tip of screwdriver [I
.4
mm
(.06
in.) width] into
connector in a manner as shown in the figure, press in
terminal lance and pull out harness.
(3) Press contact point of male terminal down by holding a
screwdriver [I
.4
mm
(.06
in.) width] in a manner as shown
in the figure.
Caution
Make sure that lance is in proper condition before
terminal is inserted into connector.
Tertninai
lance
16R1330
