Dodge Stealth 1994 - Starter Motor Disassembly and Reassembly

8-242
ENGINE ELECTRICAL - Starting System

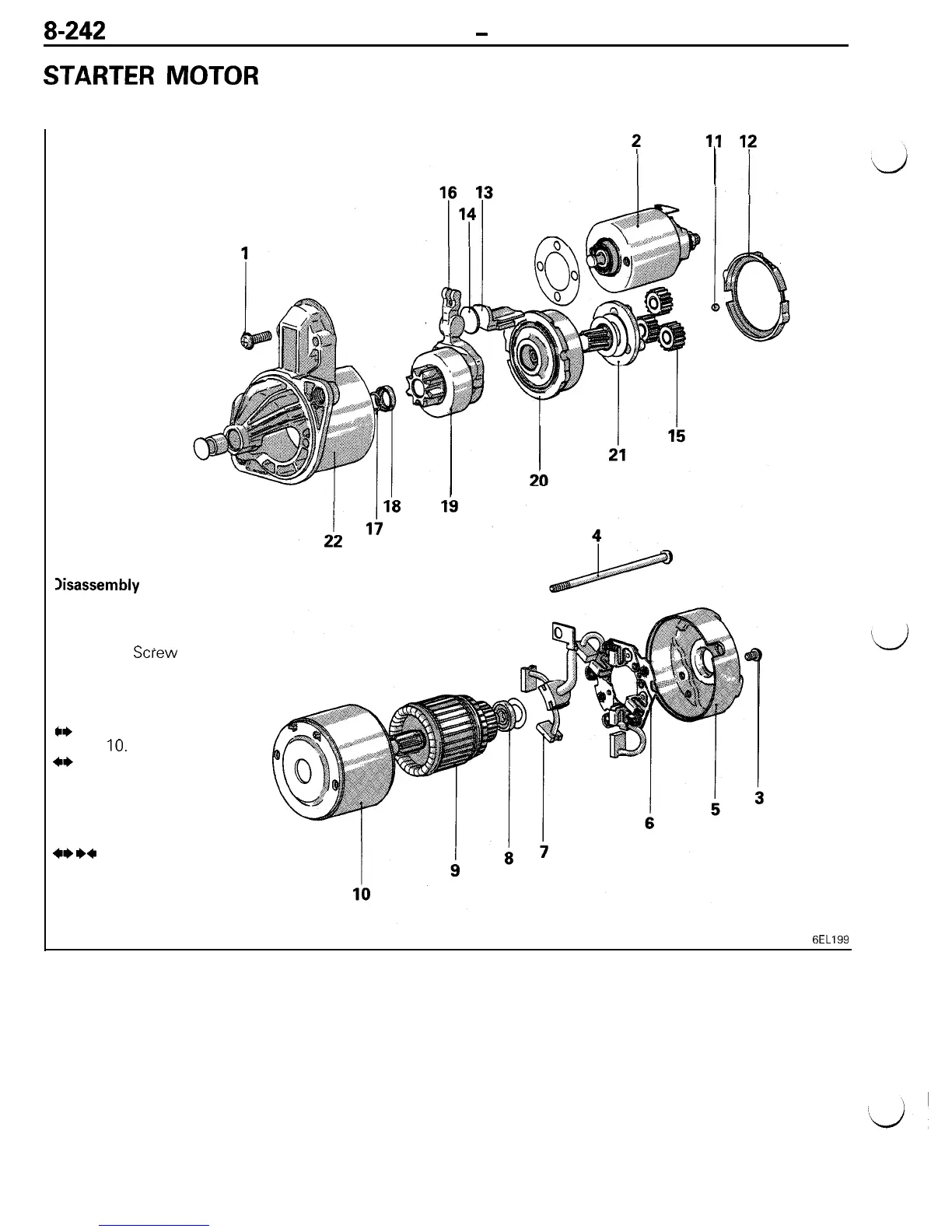

STARTER MOTOR
DISASSEMBLY AND REASSEMBLY
<EXCEPT CALIFORNIA VERSION>
Disassembly steps
1. Screw
2. Magnetic switch
3. Screw
4. Screw
5. Rear bracket
6. Brush holder
7. Brush
8. Rear bearing
c*
9. Armature
10. Yoke assembly
+*
11. Ball
12. Packing A
13. Packing B
14. Plate
15. Planetary
gear
16. Lever
** I)* 17. Snap ring
l * l + 18. Stop ring
19. Overrunning clutch
20. Internal gear
21. Planetary gear holder
22. Front bracket
6EL199
