CHASSIS ELECTRICAL - Meters and Gauges

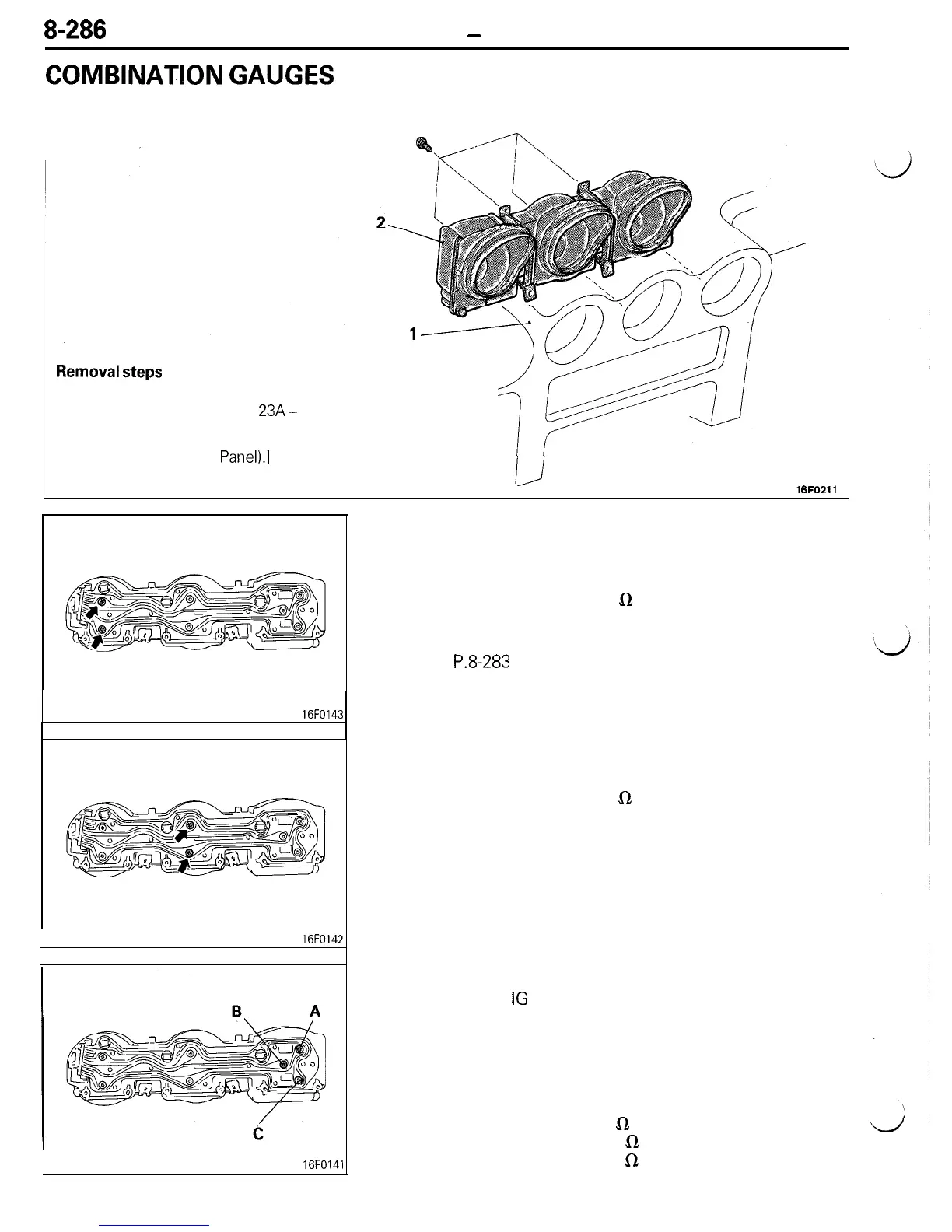

COMBINATION GAUGES
REMOVAL AND INSTALLATION
Removal steps
1. Instrument panel
(Refer to GROUP 23A- lnstriment Panel.)
Distribution duct
[Refer to GROUP 24 -Ventilators
(Instrument Panel).]
2. Combination gauge
16FO211
16FO143
I 16FO14;
16FO141
INSPECTION
PRESSURE GAUGE INSPECTION <Turbo>
Measure resistance between terminals with circuit tester.
Standard value: Approx. 72 fi
VOLTAGE GAUGE INSPECTION <Non-Turbo>
Refer to P.8-283
OIL PRESSURE GAUGE INSPECTION
Measure resistance between terminals with circuit tester.
Standard value: Approx. 42 R
ENGINE COOLANT TEMPERATURE GAUGE INSPECTION
(1) Remove the IG terminal screw from area A.
(2) Measure resistance between terminals with circuit tester.
Caution
For inspection, use a circuit tester which uses a
measurement current of 4mA or less.
Standard value:
A-B Approx. 51 fl
A-C Approx. 139 R
B-C Approx. 190 R
