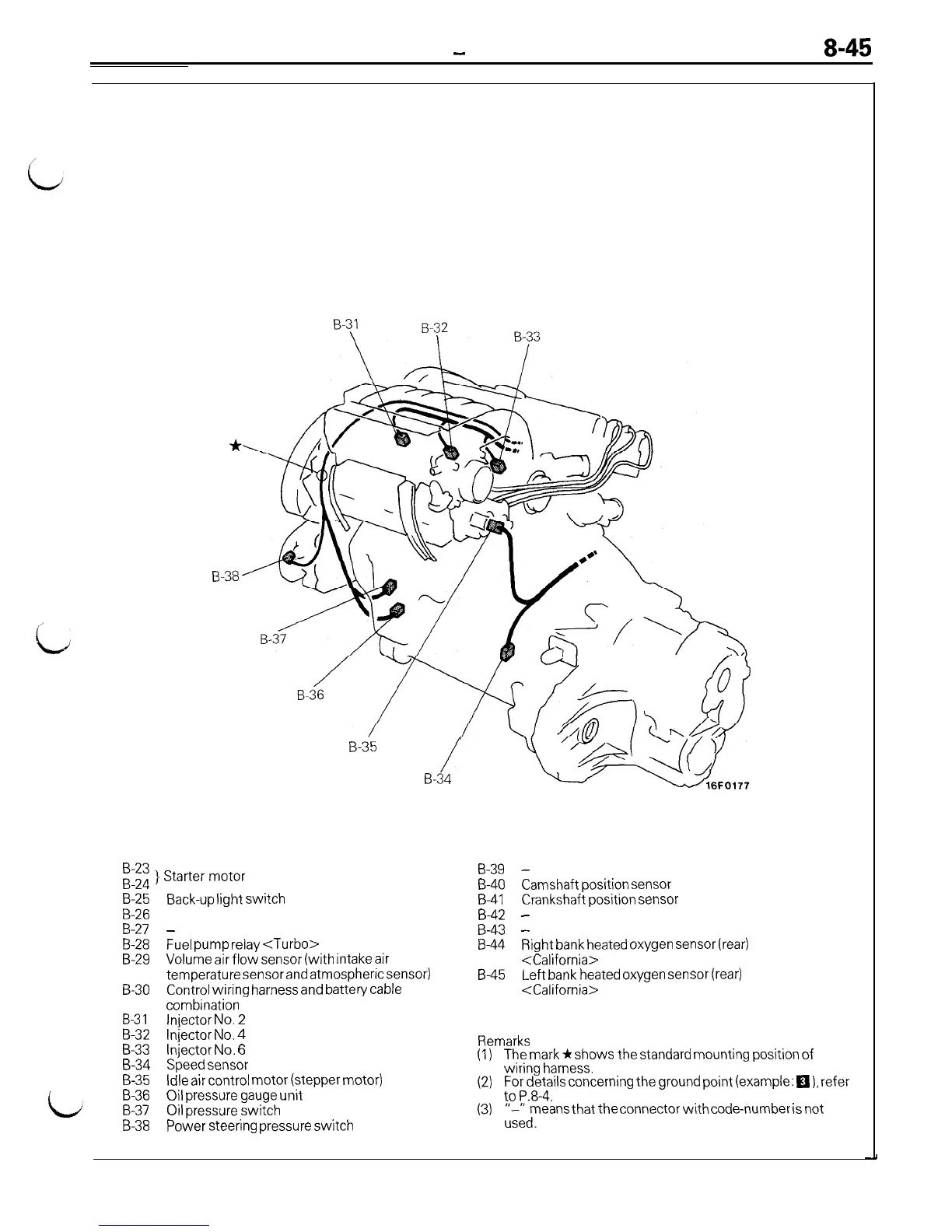

CONFIGURATION DIAGRAMS -
Engine and Transaxle <DOHC-M/T>
8-45
Rear View
,
i,
B-38
B-35
/
B--34
!I$: } Starter motor
B-25
B-26
B-27
B-28
B-29
B-30
B-3 1
B-32
B-33
B-34
B-35
LJ
B-36
B-37
B-38
Back-up light switch
-
Fuel pump relay <Turbo>
Volume air flow sensor (with intake air
temperature sensor and atmospheric sensor)
Control wiring harness and battery cable
combination
Injector No. 2
Injector No. 4
Injector No. 6
Speed sensor
Idle air control motor (stepper motor)
Oil pressure gauge unit
Oil pressure switch
Power steering pressure switch
B-39 -
B-40
Camshaft position sensor
B-41
Crankshaft position sensor
B-42 -
B-43 -
B-44
Right bank heated oxygen sensor (rear)
<California>
B-45
Left bank heated oxygen sensor (rear)
<California>
Remarks
(1) The mark t shows the standard mounting position of
wiring harness.
(2) For details concerning the ground point (example: a), refer
to P.84.
(3) ;;idmeans that the connector with code-number is not
