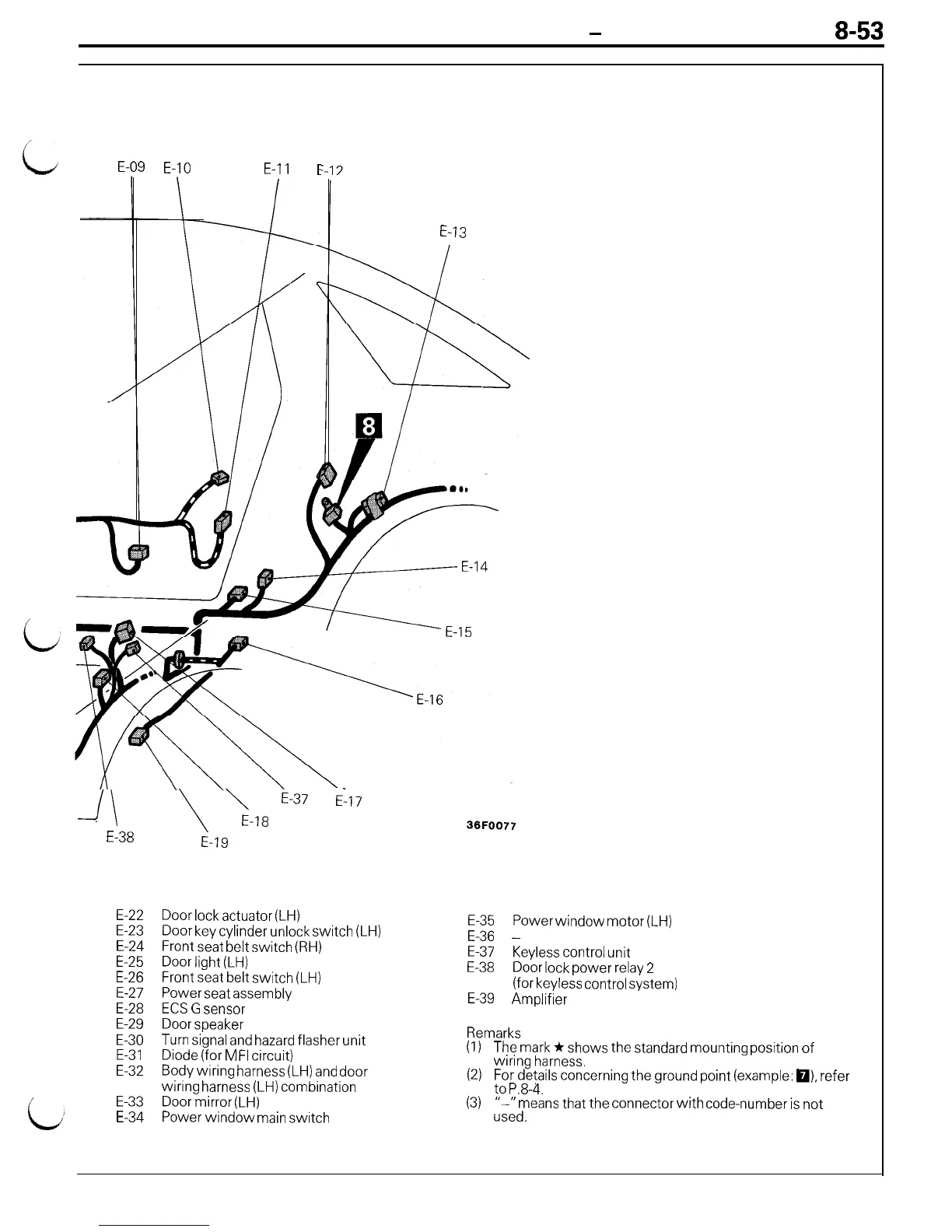

CONFIGURATION DIAGRAMS - Interior
8-53
E-09 E-IO
E-II E
E-13
J\
E-38
E-22
E-23
E-24
E-25
E-26
E-27
E-28
E-29
E-30
E-31
E-32
E-33
E-34
\
\
E-37
E:17
E-18
E-19
Door lock actuator (LH)
Door key cylinder unlock switch (LH)
Front seat belt switch (RH)
Door light (LH)
Front seat belt switch (LH)
Power seat assembly
ECS G sensor
Door speaker
Turn signal and hazard flasher unit
Diode (for MFI circuit)
Body wiring harness (LH) and door
wiring harness (LH) combination
Door mirror (LH)
Power window main switch
36FOO77
E-35
Power window motor (LH)
E-36 -
E-37
Keyless control unit
E-38
Door lock power relay 2
(for keyless control system)
E-39 Amplifier
Remarks
(1) The mark * shows the standard mounting position of
(2)
wiring harness.
For details concerning the ground point (example: 0). refer
to P.8-4.
(3) U-” means that the connector with code-number is not
used.
