Dodge Stealth 1994 - Page 53

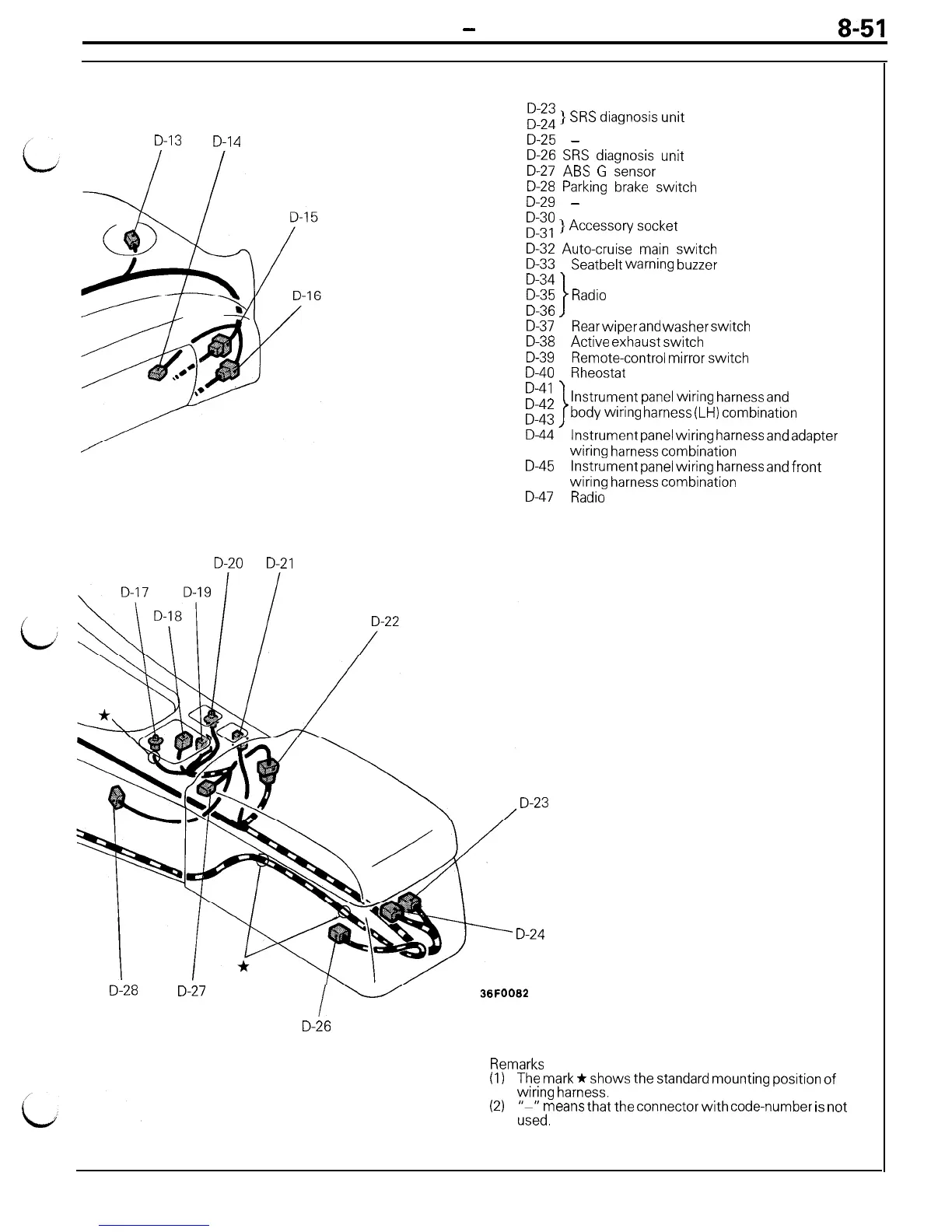

CONFIGURATION DIAGRAMS - Instrument Panel and Floor Console
8-51
D-l 3
D-l 4
EIgi } SRS diagnosis unit
D-25 -
D-26 SRS diagnosis unit
D-27 ABS G sensor
D-28 Parking brake switch
D-29 -
E$$ } Accessory socket
D-32 Auto-cruise main switch
D-33 Seatbelt warning buzzer
D-34
D-35 Radio
D-36
1
D-37 Rear wiper and washer switch
D-38 Active exhaust switch
D-39 Remote-control mirror switch
D-40 Rheostat
D-41
D-42 Instrument panel wiring harness and
D-43 body wiring harness (LH) combination
D-44
D-45
D-47
D-20
D-21
D-23
D-24
D-28
D-27
36FOO62
D-26
Instrument panel wiring harness and adapter
wiring harness combination
Instrument panel wiring harness and front
wiring harness combination
Radio
Remarks
(I) The mark * shows the standard mounting position of
wiring harness.
(2) “L”
means that the connector with code-number is not
used.
