CIRCUIT DIAGRAMS - How to Read Circuit Diagrams
HOW TO READ CIRCUIT DIAGRAMS

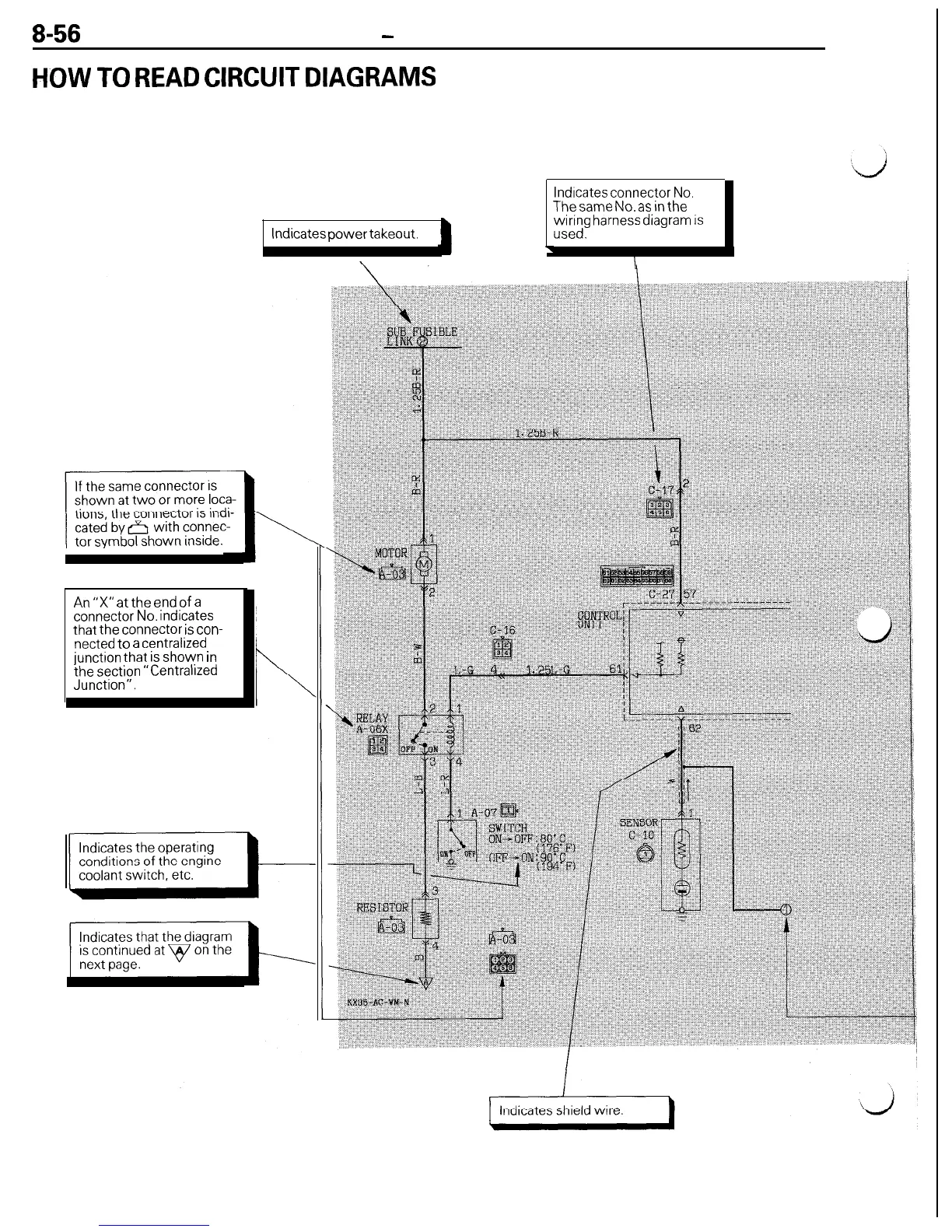

The circuit of each system from the fuse (or fusible link) to ground is shown. The power supply is shown at
the top and the ground at the bottom to facilitate understanding of how the current flows.
Indicates power takeout.
An “X” at the end of a
connector No. indicates
that the connector is con-
nected to a centralized
junction that is shown in
the section “Centralized
Junction”.
Indicates connector No.
The same No. as in the
wiring harness diagram is
used.
\
I
