Dr.coffee Product Maintenance Manual 101
7.3 Cleaning of powder silo
7.3.1 Disassembly method of powder silo

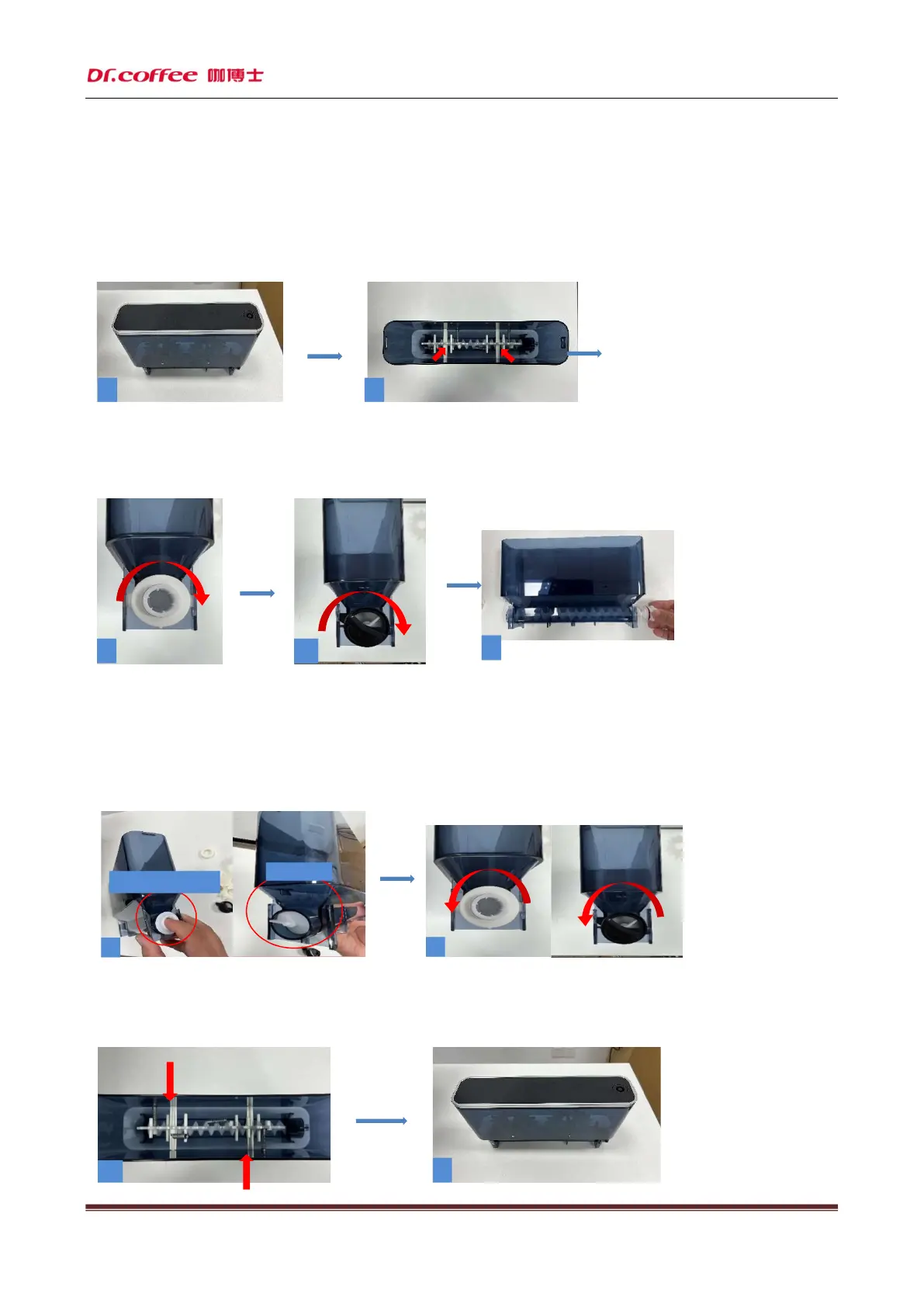

Step 1: first open the powder bin cover, take out the two powder mixing gear discs as shown in Figure 2, and take down
the two powder mixing rods as shown in Figure 3;
Step 2: (as shown in Figure 1 and Figure 2) Rotate the fasteners clockwise and take out the fasteners, and then (as shown
in Figure 3) take out the powder feeding rod. The other two powder silos operate in the same way, and the powder silo
disassembly is completed.
7.3.1 Installation method of powder silo
Step 1: Install the powder feeding rod into the bin, and then install it in the direction and position shown in Figure 1,
and then install the fasteners counterclockwise (as shown in Figure 2);
Step 2: (as shown in Figure 1) Install the mixing gear plate back, note that the two gear plates are opposite, and then
(as shown in Figure 2) install the powder box cover back, and the installation of the powder bin is completed.
