Dr.coffee F20 - Internal Component Introduction

Rev 00
Dr.coffee Product Maintenance Manual 13

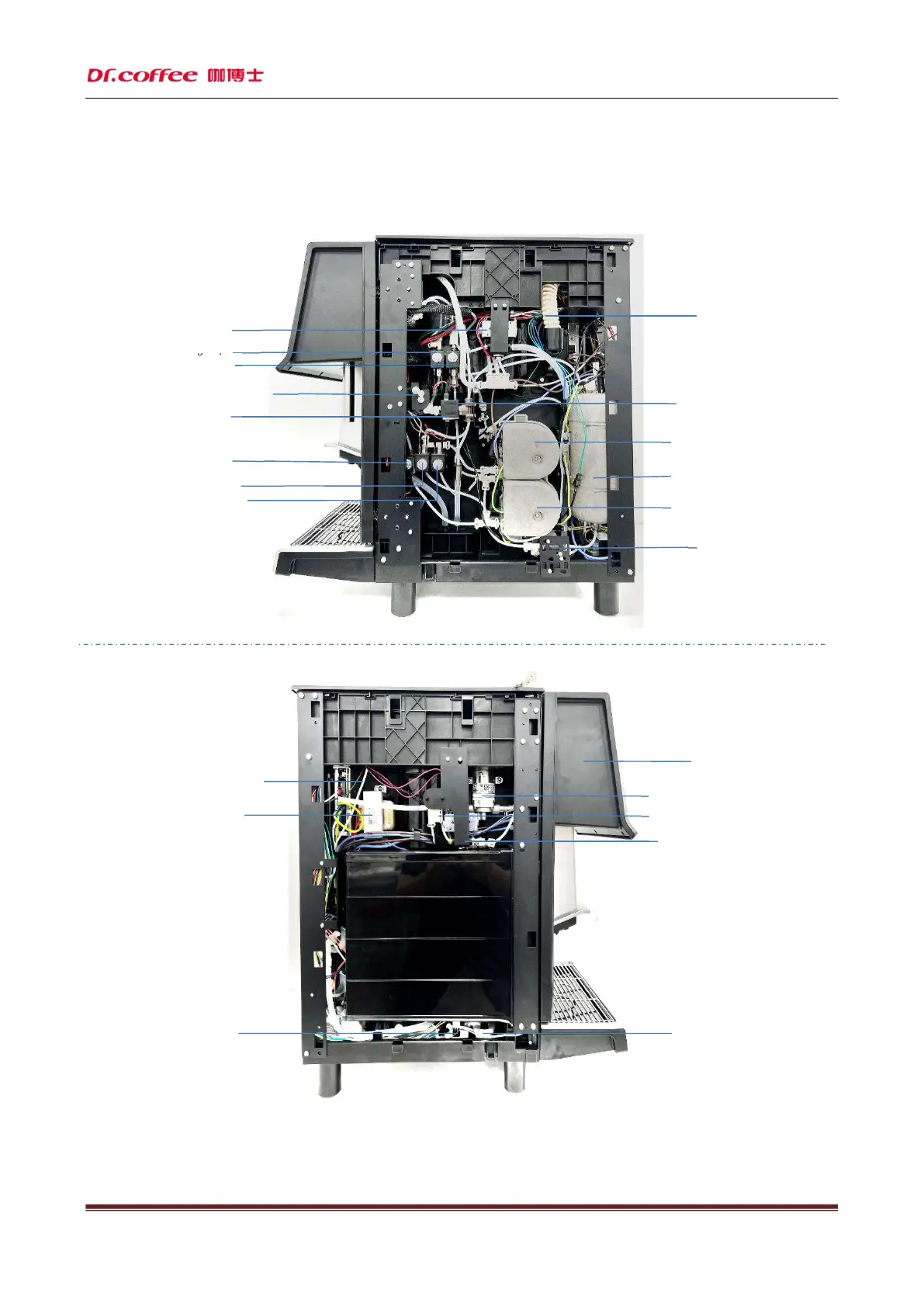

3.2 INTERNAL COMPONENT INTRODUCTION
3.2.1 F20 Coffee Machine
Exhaust duct
Steam boiler group
Ice coffee valve group
Steam valve group
Hot water wand valve
Pressure Releasing Solenoid Valve
Water supply valve for steam
Hot water valve
Hot water thermoblock
Coffee thermoblock
3-way milk valve
Hydraulic cleaning valve
Powerful hot water valve
Powder drinks outlet connection
Milk pump group
Transformer
HMI group
Flow meter
Flow meter
Switching power supply
Air valve
2-way valve
