Dr.coffee Product Maintenance Manual 85

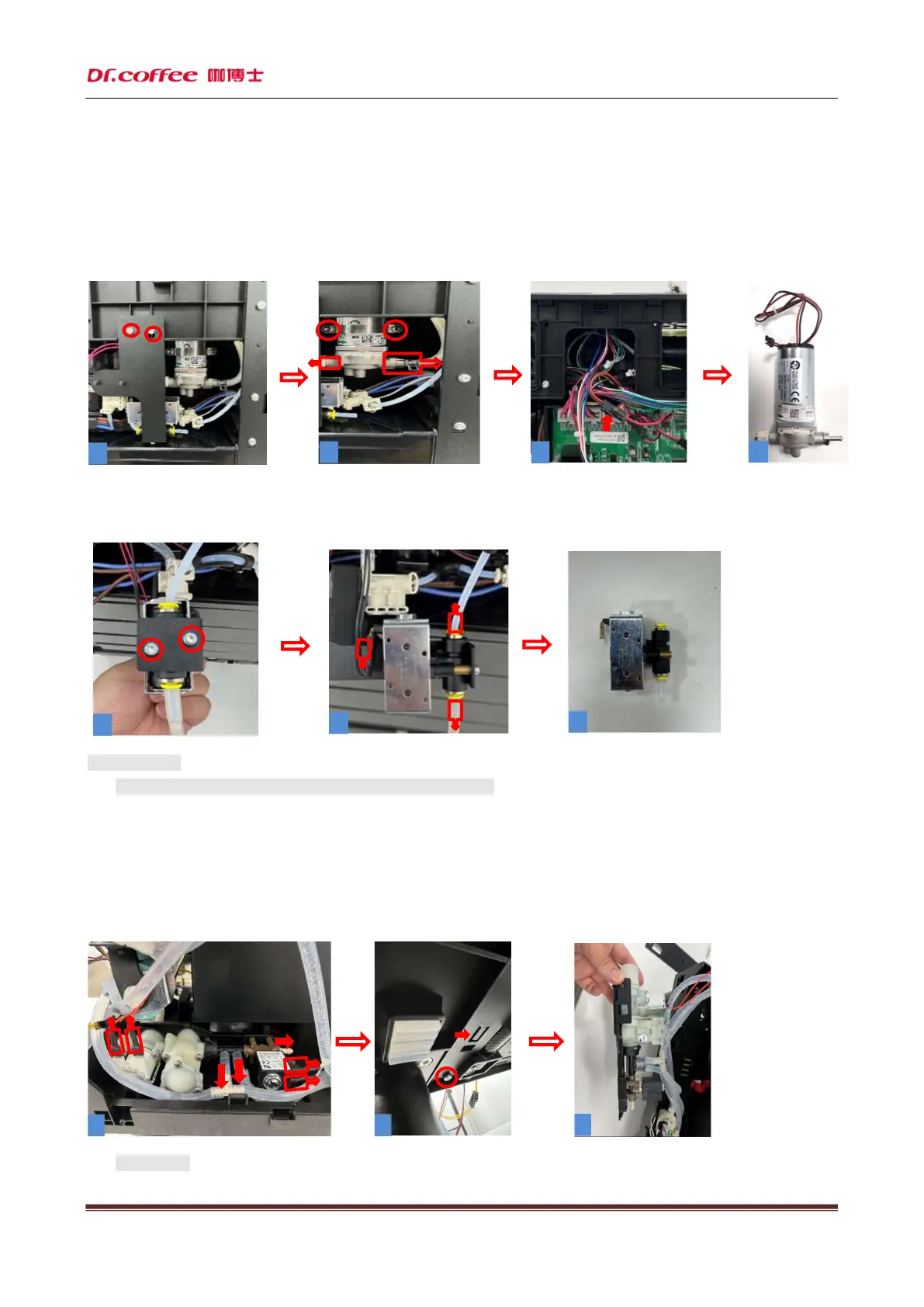

6.2.15 Remove milk pump unit
Step 1: (as shown in Figure 1) Unscrew the left screw, loosen the right fixing screw, remove the valve block, (as shown in Figure
2) unplug the water pipe and solenoid valve wiring plug, (as shown in Figure 3) position wiring plug, take out the milk
pump, and remove the milk pump.
Step 2: (as shown in Figure 1) Unscrew two fixing screws, remove the two-way milk valve, (as shown in Figure 2) Unplug the water
pipe and solenoid valve wiring plug, take out the two-way milk valve, and remove the two-way milk valve.
★ Precautions:
1. Be careful during disassembly to avoid scratching fingers!
6.2.16 Remove the inlet valve group
Step: First (as shown in Figure 1) pull out the four wiring plugs of the inlet valve group, and then pull out the three connecting
water pipes, and then (as shown in Figure 2) loosen the bottom screws and press the snap, take out the inlet valve group, and
disassemble the inlet valve group.
★ Precautions:
1
2
3
4
1
2
3
1
2
3
