HMI
communicati
on
abnormality
a) The
communication line between the
main board and the display board
falls off or is damaged;
b)
The program version of main control
system and display system does not
match;
c) HMI board is damaged;
d) The main control board is damaged;
 Check the harness plug and plug
it
in again;
 Re-
upgrade the main control and
display system;
 Replace with a new HMI board;

Replace the main control board with
a new one;

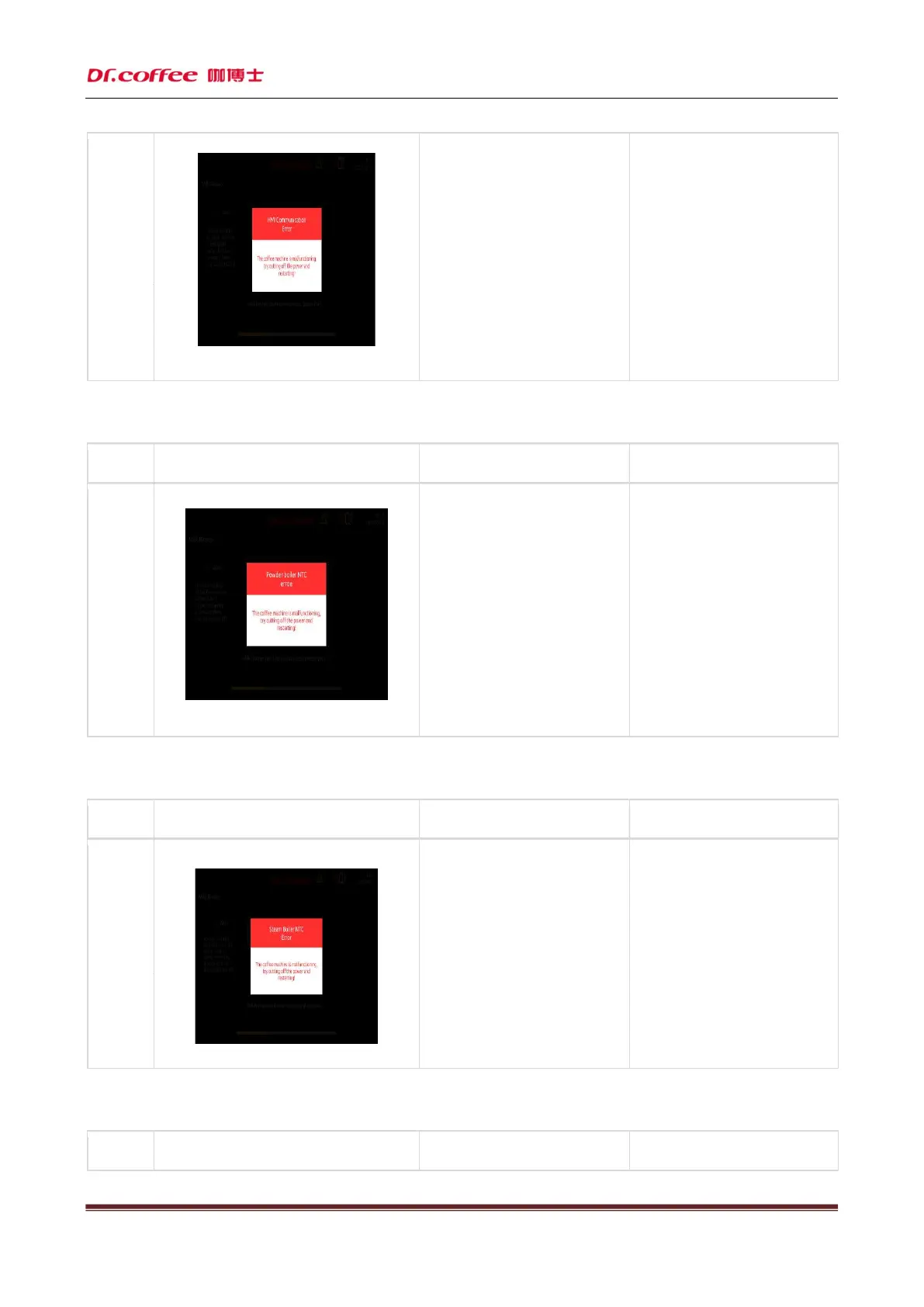

5.1.7 Abnormal NTC of powder boiler
Name
Display prompt Reason Solution
Abnormal
NTC of
powder
boiler
a) The
connecting wire of NTC
temperature sensor of powder boiler
falls off or breaks;
b)
NTC temperature sensor of powder
boiler is damaged;
c)
The temperature of powder boiler
exceeds the upper limit of alarm;

Check the connecting wire and
reinstall or replace it;
 Re
place the NTC temperature sensor
with a new one;

Turn off the machine power and wait
for about 30 minutes before
restarting;
 Replace with a new powder boiler;
5.1.8 Steam boiler NTC abnormality
Name
Display prompt Reason Solution
Steam
boiler NTC
abnormality
a)
The NTC temperature sensor of the
steam boiler and the connecting
wire fall off or break;
b)
The NTC temperature sensor of steam
boiler is damaged;
c)
The steam boiler temperature
exceeds the alarm upper limit;

Check the connecting wire and
reinstall or replace it;

Replace the NTC temperature sensor
with a new one;

Turn off the machine power and wait
for about 30 minutes before
restarting;

Replace the steam boiler with a new
one;
5.1.9 Coffee hot plate NTC abnormality
Name
Display prompt Reason Solution
