Dr.coffee Product Maintenance Manual 72
6.2 F20 component disassembly steps
6.2.1 Dismantling appearance
6.2.1.1 Remove the rear cover plate

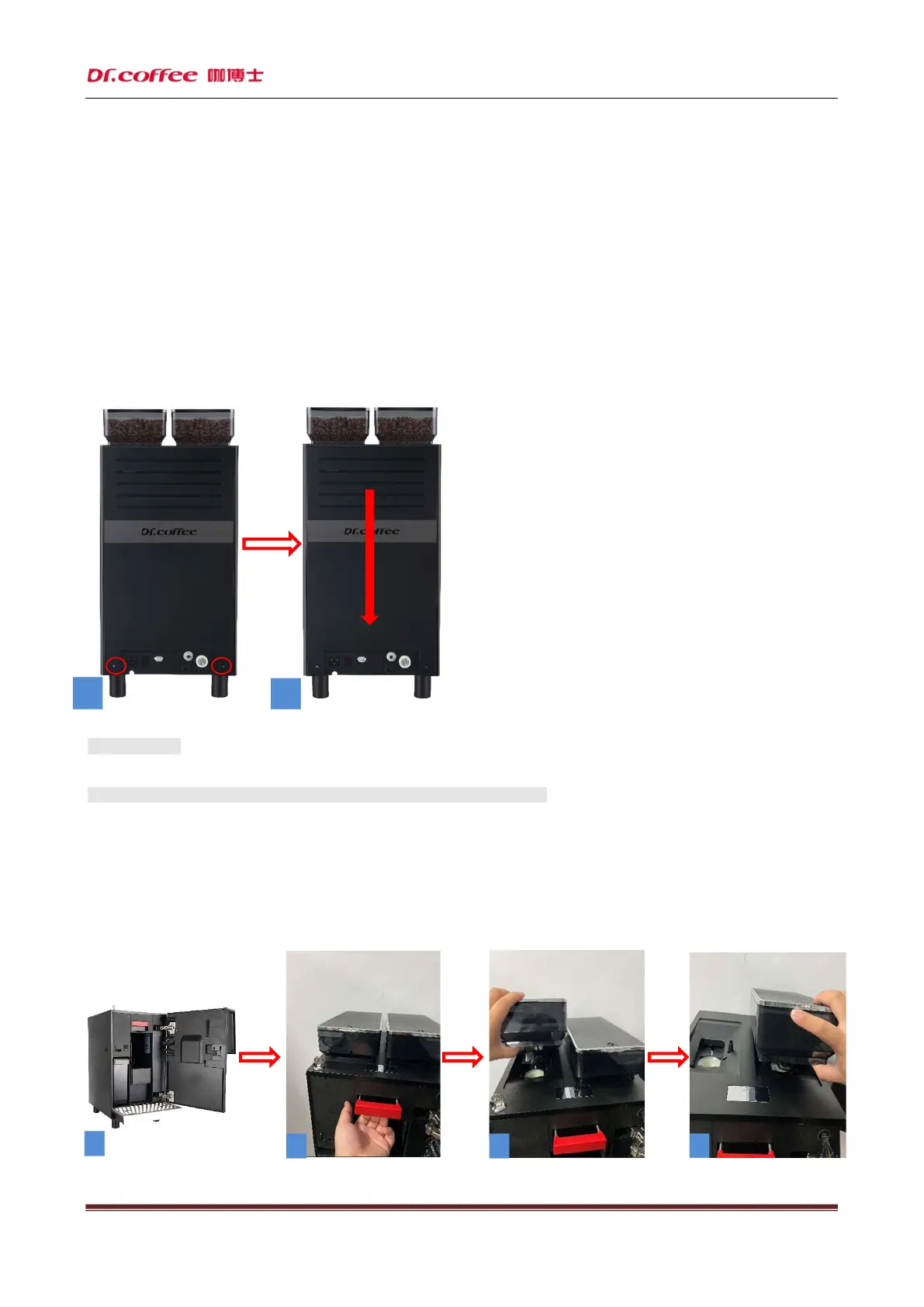

F20 coffee machine: first remove the two screws at the position shown in the red circle (as shown in Figure 1) with a T20
screwdriver, and then (as shown in Figure 2) push out the rear cover plate from top to bottom and remove it, and then
remove the rear cover plate.
F20 coffee machine
★ Precautions:
1. Handle with care during disassembly to avoid scratching the appearance!
6.2.1.2 Remove the cover plate
Step 1: first open the coffee machine door, (as shown in Figure 2) take down the coffee bean box, then pull out the pull
rod, and take down the two coffee bean boxes;
1
3
2
4
2
1
