Dr.coffee Product Maintenance Manual 92

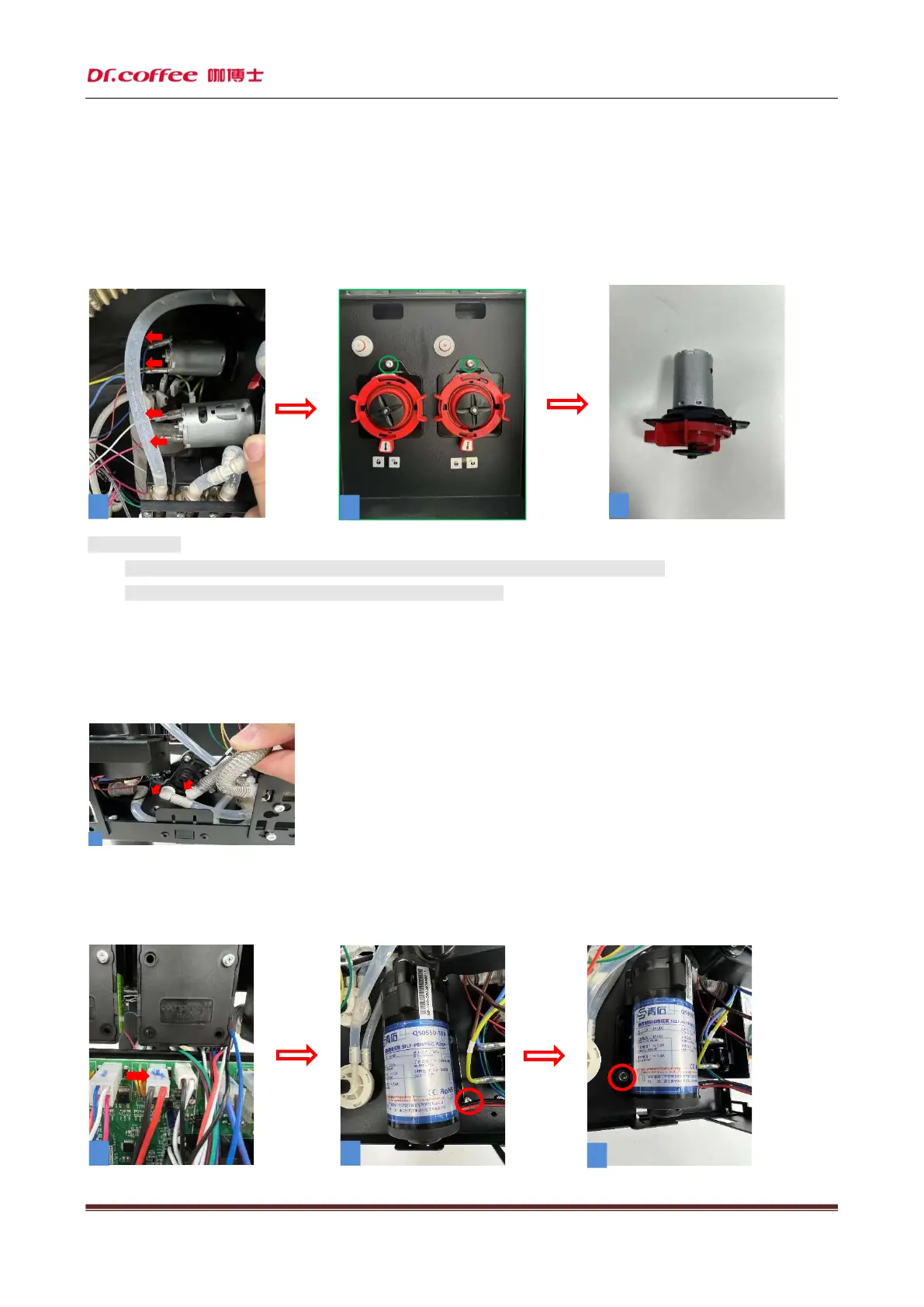

6.3.5 Dismantle the mixing motor set
Step: first pull out the four electrode plugs of the mixing motor as shown in Figure 1; Next, use a T20 screwdriver to remove the
two screws in the green circle (as shown in Figure 2), and finally pull out the mixing motor outward in order to complete
the removal of the powder feeding motor set.
★ Precautions:
1. Please unplug the power plug of the powder machine before performing this operation!
2. Be careful during disassembly to avoid scratching fingers!
6.3.6 Dismantle the diaphragm pump set
Step 1: First pull out the water inlet and outlet pipe of the water pump (as shown in Figure 1). When the water pipe is a quick-
plug connector, press the fixed clamp ring
Step 2: Unplug the quick-insert connector at the position shown by the red arrow (as shown in Figure 1), remove the fixing screws
at the position shown in Figure 2 and 3), and disassemble the diaphragm pump;
1
2
3
1
2
3
