Dr.coffee F20 - Remove the Left and Right Side Panels

Rev 00
Dr.coffee Product Maintenance Manual 73

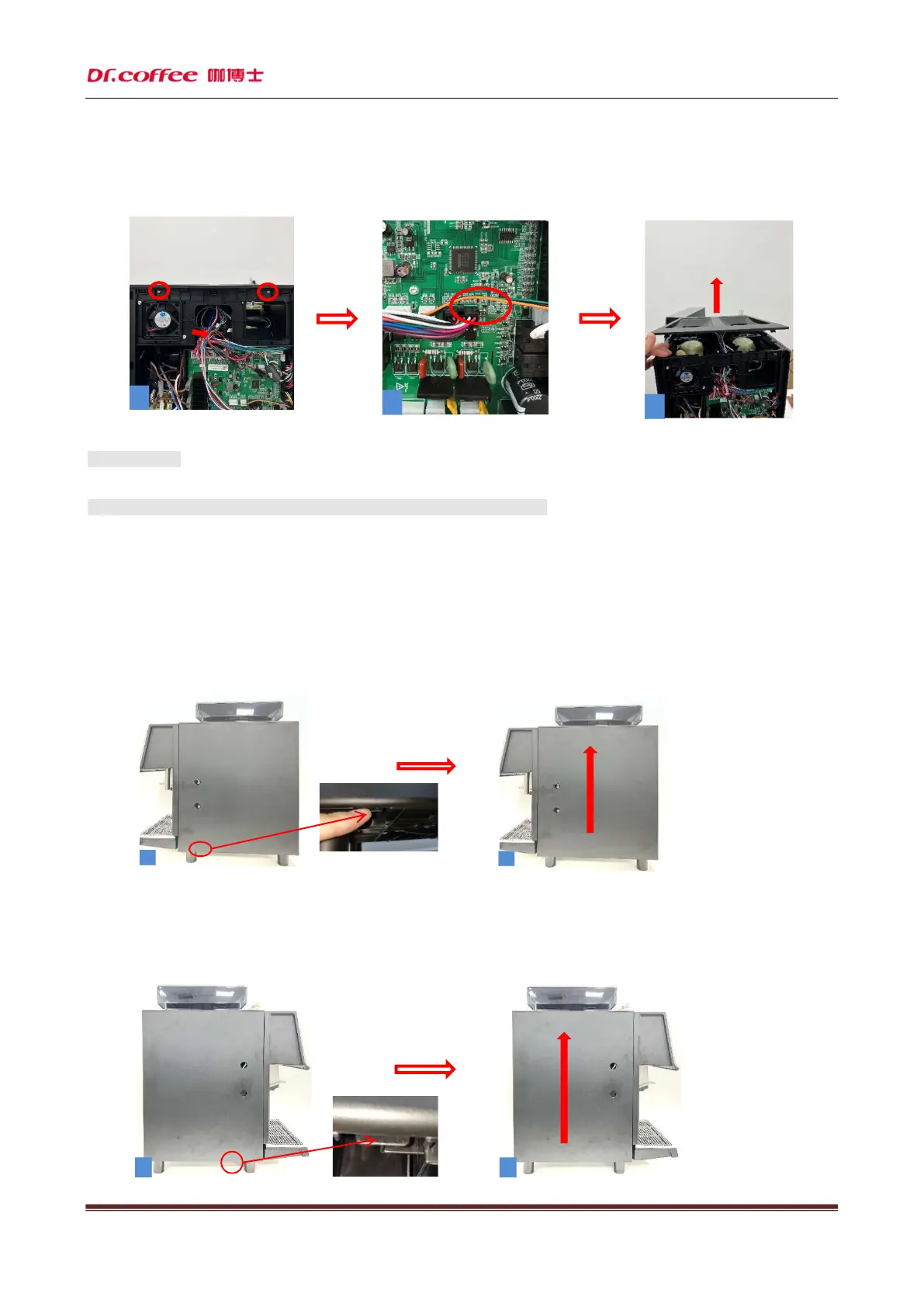

Step 2: Use a T10 screwdriver to remove the two screws (as shown in Figure 1), and then (as shown in Figure 2) unplug the
harness plug. Finally, push the upper cover forward and remove the cover upwards. The upper cover is removed.
★ Precautions:
1. Handle with care during disassembly to avoid scratching the appearance!
6.2.1.3 Remove the left and right side panels
Step 1: First press the buckle at the position shown in the red circle (as shown in Figure 1) inward with your fingers,
and then (as shown in Figure 2) push out the side cover plate from the bottom to the top and remove it, and then remove
the right side plate.
Step 2: Press the buckle at the position shown in the red circle (as shown in Figure 1) inwards with your fingers, and
then (as shown in Figure 2) push out the side cover plate from the bottom to the top and remove it, and then remove the
left side plate.
1
2
1
2
1
2
3
