7.1 Cleaning of the bubbler
7.1.1 Removal method of the bubbler

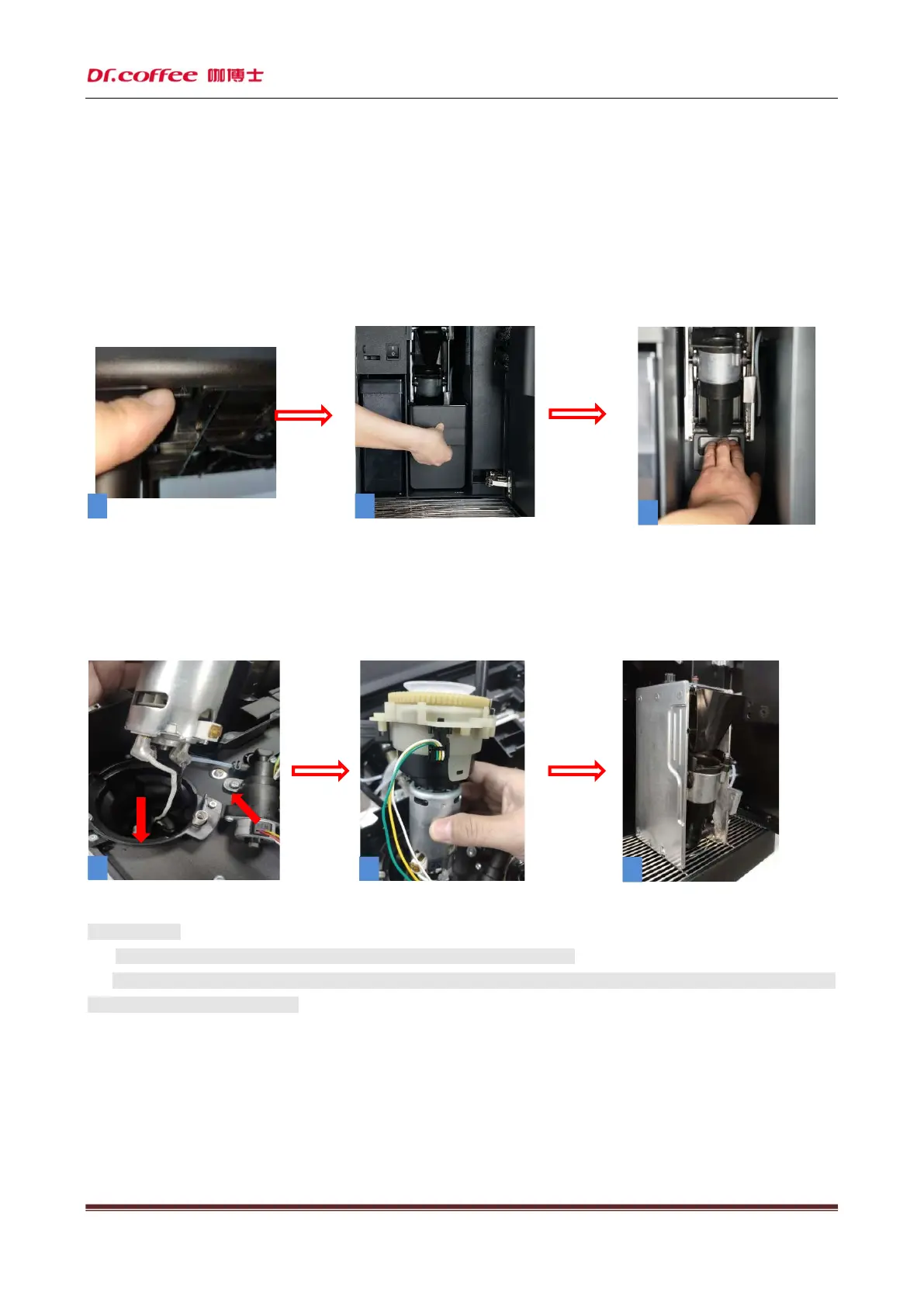

Step 1: first open the door of the coffee machine, hold the handle of the residue box and take out the residue box (as
shown in Figure 2);
Step 2: (as shown in Figure 1) Push the buckle inwards with your fingers, then press the clamp downward, and then (as
shown in Figure 2) grasp the body of the bubbler with your hands, take out the bubbler outward, and disassemble the
bubbler.
★ Precautions:
1. Please disassemble the machine after it cools down to prevent scalding!
2. The bubbler is made of metal and weighs a lot. In the process of disassembly, you can properly use your hands to
help you take it, to avoid injury!
1
3
2
3
2
1
