Dr.coffee Product Maintenance Manual 83
6.2.13 Dismantle steam boiler unit

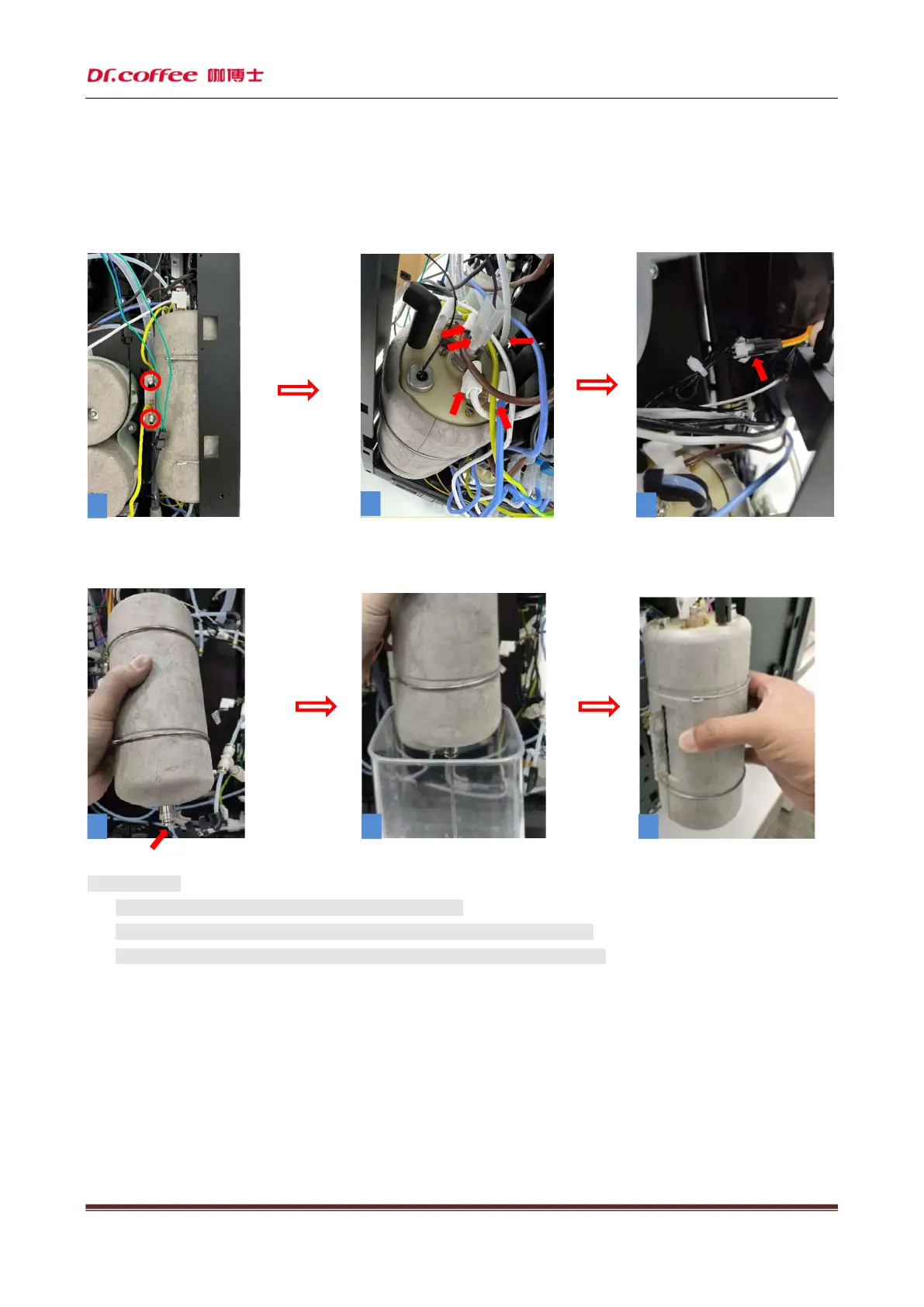

Step 1: First loosen the fixing screws of the boiler (as shown in Figure 1), then (as shown in Figure 2) pull out the wire plug
and outlet pipe connector, and (as shown in Figure 3) pull out the NTC connector of the steam boiler;
Step 2: first prepare a water container, (as shown in Figure 1) pull out the water inlet pipe under the boiler, drain the water
in the boiler, and disassemble the steam boiler set.
★ Precautions:
1. Please unplug the coffee machine before doing this!！
2. Please cool the machine thoroughly before disassembly to prevent scalding!
3. There is water in the boiler. Please prepare the water container in advance!
1
3
2
2
3
1
