Rev 00
Dr.coffee Product Maintenance Manual 90

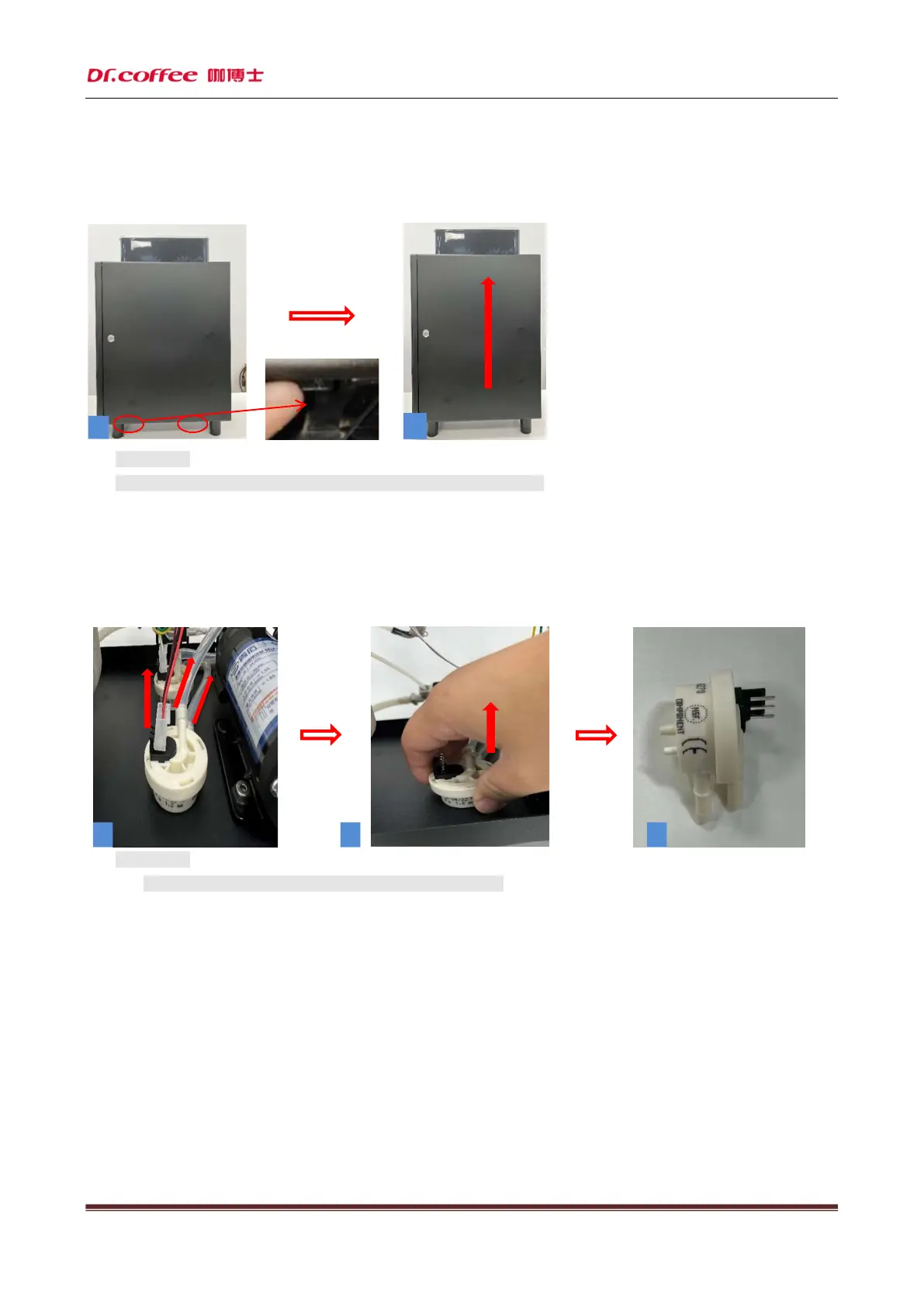

Step 2: First press the buckle at the position shown in the red circle (as shown in Figure 1) inward with your fingers,
and then (as shown in Figure 2) push out the side cover plate from the bottom to the top and remove it, and then remove
the right side plate.
★ Precautions:
1. Handle with care during disassembly to prevent scratching fingers!
6.3.2 Dismantle the flowmeter
步 Step: First (as shown in Figure 1) pull out the two water pipes and plug wires connecting the flow meter in the direction of
the arrow, and then (as shown in Figure 2) pull out in the direction of the arrow to complete the removal of the flow meter.5
★ Precautions:
Be careful during disassembly to avoid scratching fingers!
3
1
2
1
2
