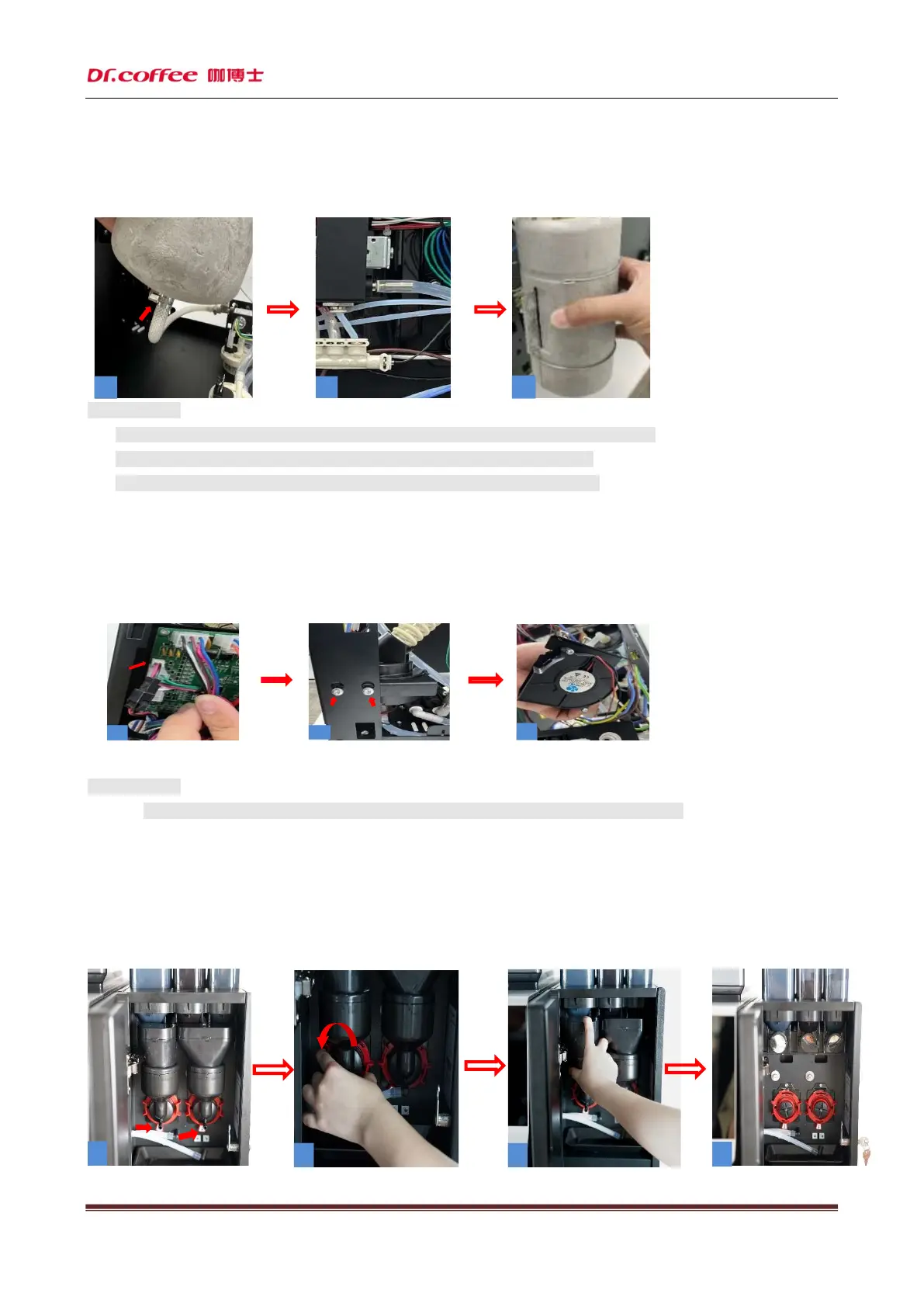

Step 2: first prepare a water container, (as shown in Figure 1) pull out the water inlet pipe under the boiler, drain the water
in the boiler, and disassemble the powder boiler group.
★ Precautions:
1. Please unplug the power plug of the powder machine before performing this operation!
2. Please cool the machine thoroughly before disassembly to prevent scalding!
3. The boiler is full of water. Please prepare the water container in advance!
6.3.10 Remove the blower
Step: First unplug the harness plug connecting the blower to the main board as shown in Figure 1, and then (as shown in Figure 2)
loosen the two fixing screws, and then remove the blower. The blower is removed.
★ Precautions:
1. Please unplug the power plug of the powder machine before performing this operation!
6.3.11 Dismantling agitator
Step: First pull off the hose on the beverage outlet of the blender (as shown in Figure 1), then (as shown in Figure 2)
rotate the lock anticlockwise, and then (as shown in Figure 3) pull out the blender. The left and right blenders are
removed in the same way, and the blender is removed.
1
2
3
4
