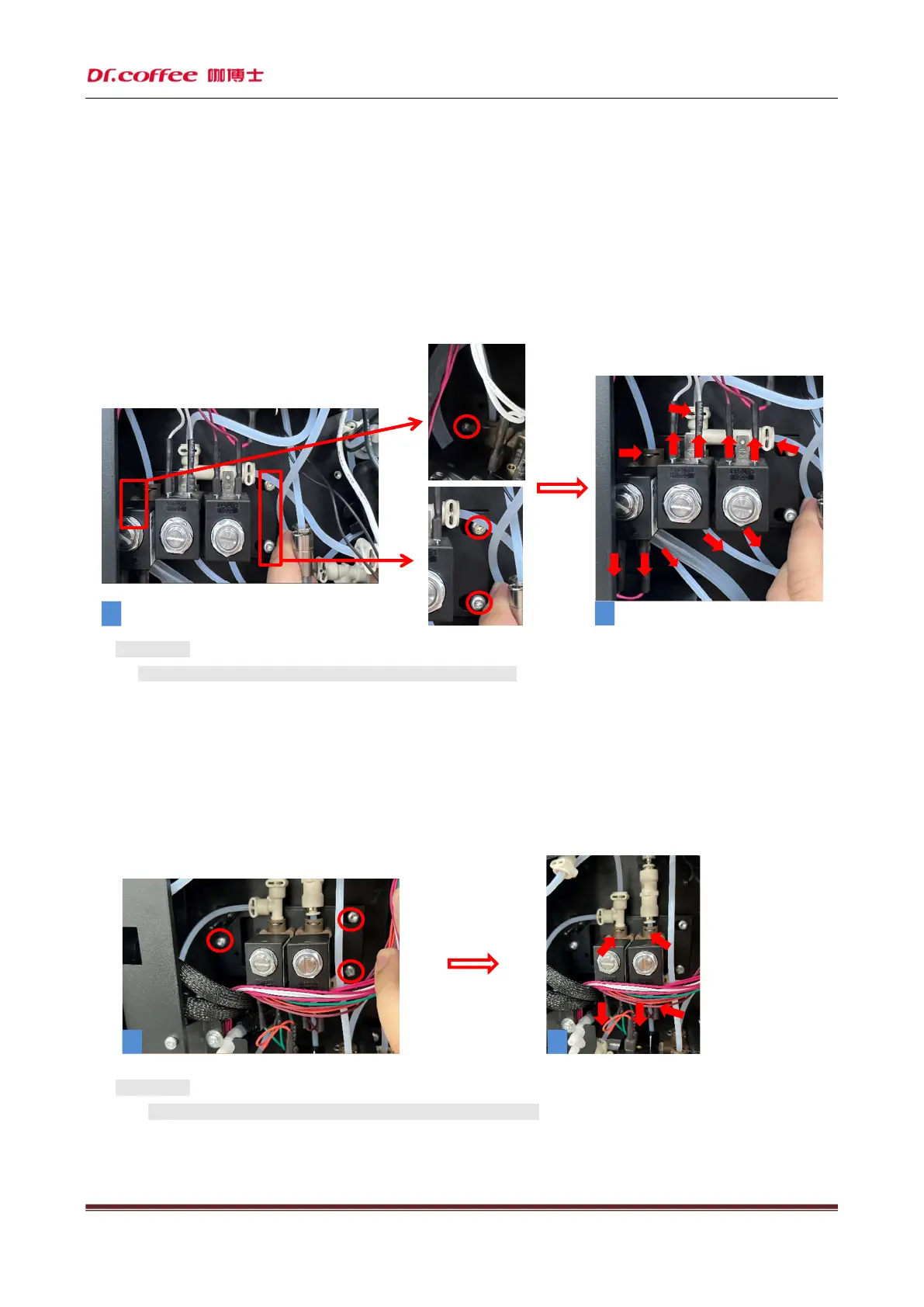

6.2.17 Remove the solenoid valve group
6.2.17.1 Remove the hot water (rod) solenoid valve group
Step: First loosen the three screws at the position shown in Figure 1, then remove the solenoid valve group, and then (as shown
in Figure 3) unplug the corresponding water pipe plug and wiring plug on each solenoid valve, and then remove the hot water
(rod) solenoid valve group.
★ Precautions:
1. Be careful during disassembly to avoid scratching fingers!
6.2.17.2 Remove the steam/ice coffee solenoid valve group
Step: First loosen the three screws at the position shown in Figure 1, then remove the solenoid valve group, and then (as shown
in Figure 2) unplug the corresponding water pipe plug and wiring plug on each solenoid valve, and then remove the steam/ice
coffee solenoid valve group.
★ Precautions:
1. Be careful during disassembly to avoid scratching fingers!！
1
2
1
2
