Temperature
Temperature Display
On the Cockpit, the temperature display consists of
a parameter box. You can select which
temperature values are displayed in the parameter
box (see page 202).
When the dual-temperature cable is connected, the
parameter box displays either the corresponding
temperature values (for example, Ta and Tb) or
one direct and one calculated delta value (for
example, Ta and ΔT). The symbol ΔT represents
the absolute value of the difference between the
two direct values.
Any temperature values originating from the MPod
- QuadHemo, the Hemo2
®
pod, or the Hemo4
®
pod
are labelled T1a, T1b, and ΔT1. Any temperature
values originating from a single- or dual-
temperature cable, that is connected to the M540
temperature connector, are labelled Ta, Tb, and
ΔT.
When only a single-temperature sensor is
connected, only one temperature value is
displayed. The values for the second temperature
appear blank.

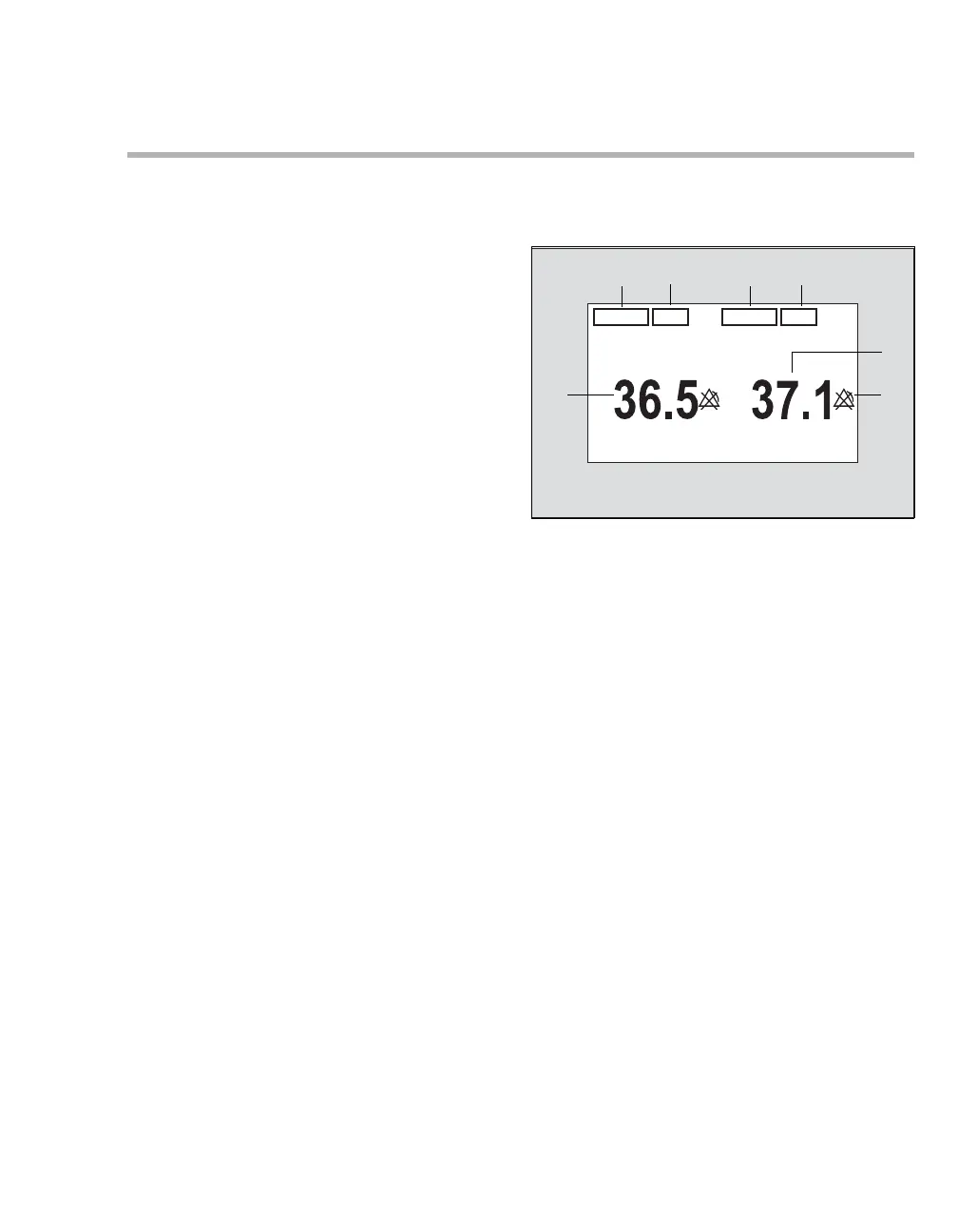

The following diagramme shows a temperature
parameter box.
A Direct-temperature label
B Units of measure (can be turned on/off)
C Delta-temperature parameter label or second
direct-temperature label.
D Calculated delta value or second direct-
temperature value
E Upper/lower alarm limits or crossed-triangle
symbols when alarms are turned off.
F Direct temperature value
