Configuring the Parameter Priority and Display
In the parameter-selection window, one of the
following three display symbols appears next to
each parameter label identifying how the parameter
will be displayed on the screen:
the parameter appears as a waveform
and as a parameter box.
the parameter appears as a parameter
box.
the parameter will not be displayed.
Parameters are arranged in descending order in
the window and occupy the same position on the
screen. For example, the top parameter in the
parameter-selection window occupies the top
location on the screen.
If you are in the auto-display mode, you can
configure a parameter in two ways:
– From the Auto-view setup page.
– From the auto-view setup toolbar which
appears at the bottom of the screen if enabled .
In the manual display mode, you can configure a
parameter only from the Auto-view setup page.
To configure the parameter priority and display
from the Auto-view setup page
In the following steps, the letters in parentheses
correspond to the diagram for the Auto-view setup
page (see page 277).
1 Access the Auto-view setup page (see
page 274).
2 Select the number of waveforms to be
displayed using the Waveforms button (D).
3 Select the number of parameter boxes to be
displayed using the Parameter boxes button
(G).
4 Select the parameter and use the rotary knob to
move it up or down the parameter-selection
window to the desired position. As you move
the parameter up or down the list, the display
symbol next to the parameter may change. For
example, a parameter that was previously set to
be displayed as a parameter box and a
waveform , will only appear as a parameter
box as you are moving it down the list.
5 Press the rotary knob to confirm the selection.
To configure the parameter priority and display
from the auto-view setup toolbar.
When enabled (see page 277), the auto-view setup
toolbar appears along the bottom of the screen
whenever you activate a View with an auto-view
component. The auto-view setup toolbar functions
dynamically with the parameter-selection window
of the Auto-view setup page (see page 279).
Whatever changes you make in one place is
reflected in the other.

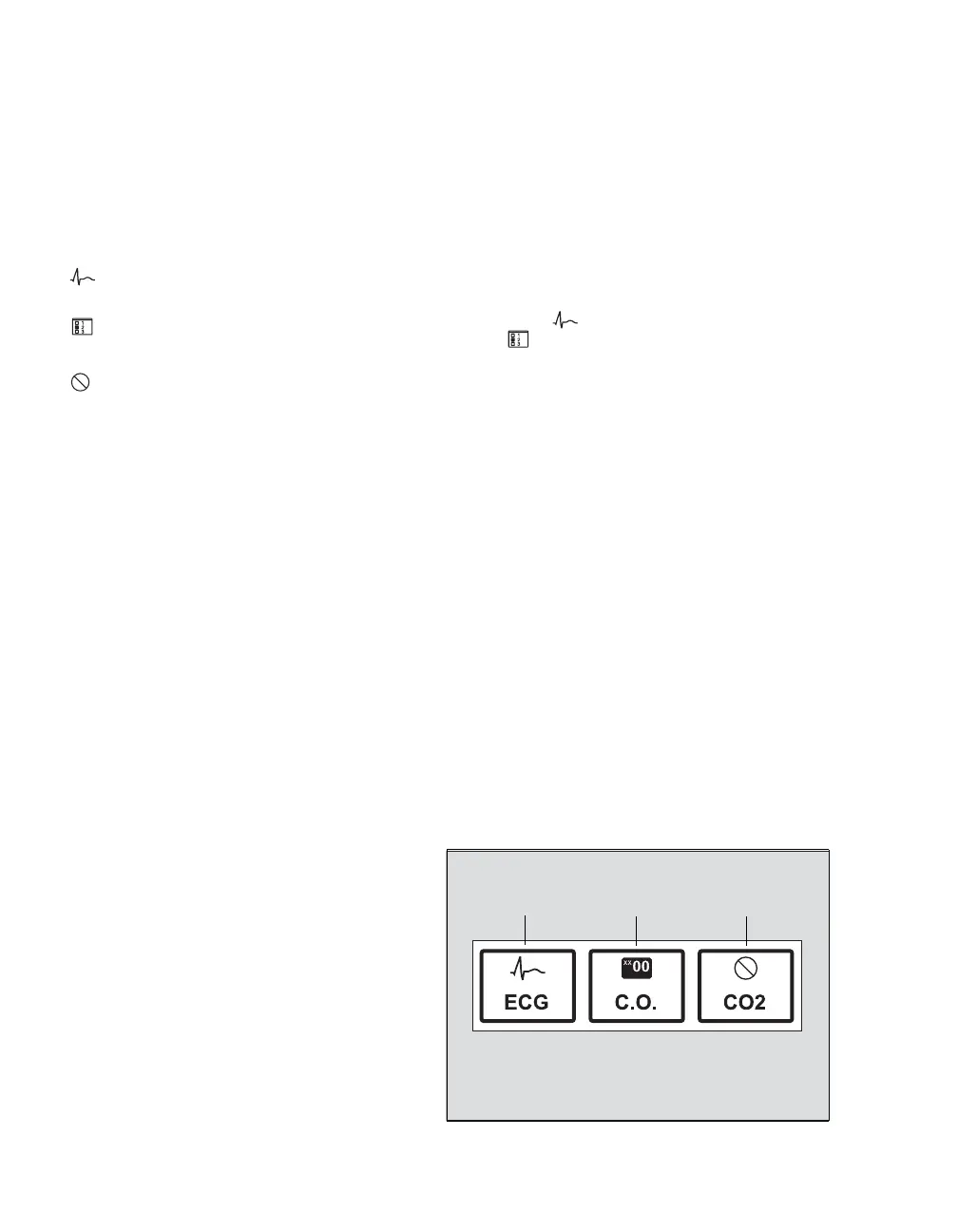

Each connected parameter is represented as a
small field on the auto-view setup toolbar. The
following illustration is an example of how the auto-
view setup toolbar identifies the display mode of
parameters on the main screen. The symbols
above the parameter label identify the three
different display modes and are identical to the
symbols in the parameter-selection window in the
Auto-view setup page.
051
A
B
C
