DURKOPP ADLER 745-34-2 Installation Instructions

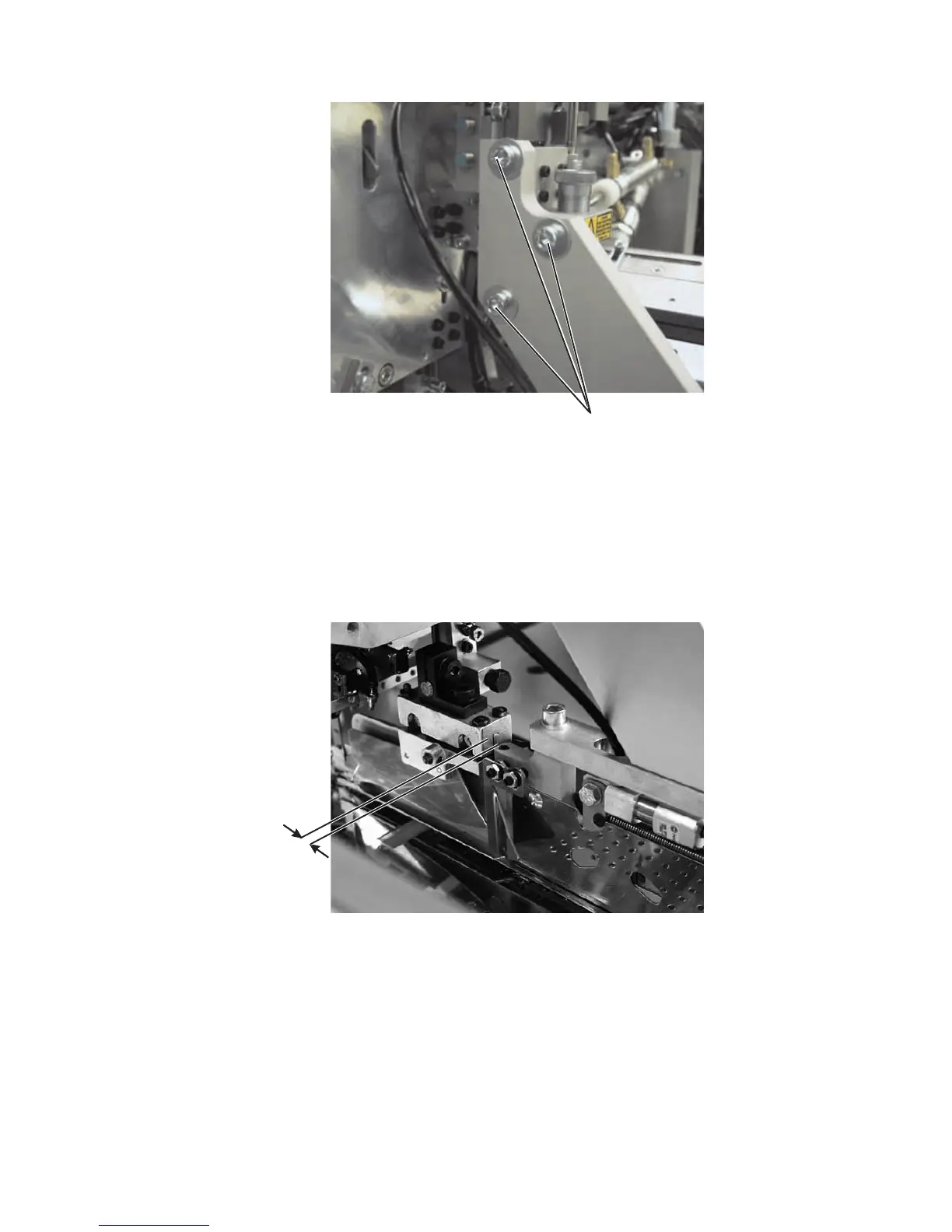

12.7.3 Position of the pick-up folder in sewing direction
–
Slightly loosen the screws 3 at the mounting plate.
–
Shift the lowered pick-up folder in sewing direction so that there is
a distance of 0.5 mm between folder and pick-up folder. Take care
that the sole of the pick-up folder rests on the fabric sliding sheet
over its whole length.
–
Tighten the screws 3.
102
0,5 mm
3
