12.9 Stop screw for the pick-up folder
Caution: Danger of injury !
Adjust the stop screw for the pick-up folder with utmost caution
when the sewing unit is running.
Standard checking
The stop screw 10 has to be adjusted in such a way that - with the
folder lowered - the distance between the folder sole and the sliding
sheet amounts to approx. 1 - 2 mm. (dependent on the fabric).
The incorporated spring presses the folder back s o that the piping s trip
is safely seized when sewing (during the last section of the backward
movement the cylinder is pressureless).
–
Switchonthemainswitch!
–
Activate the adjustment program “ Checking the pick-up folder
w ithout feeding clamp ”.
–
Press key F5 .
The pick-up folder moves in vertical position and lowers down on
the fabric sliding sheet.
Correction
–

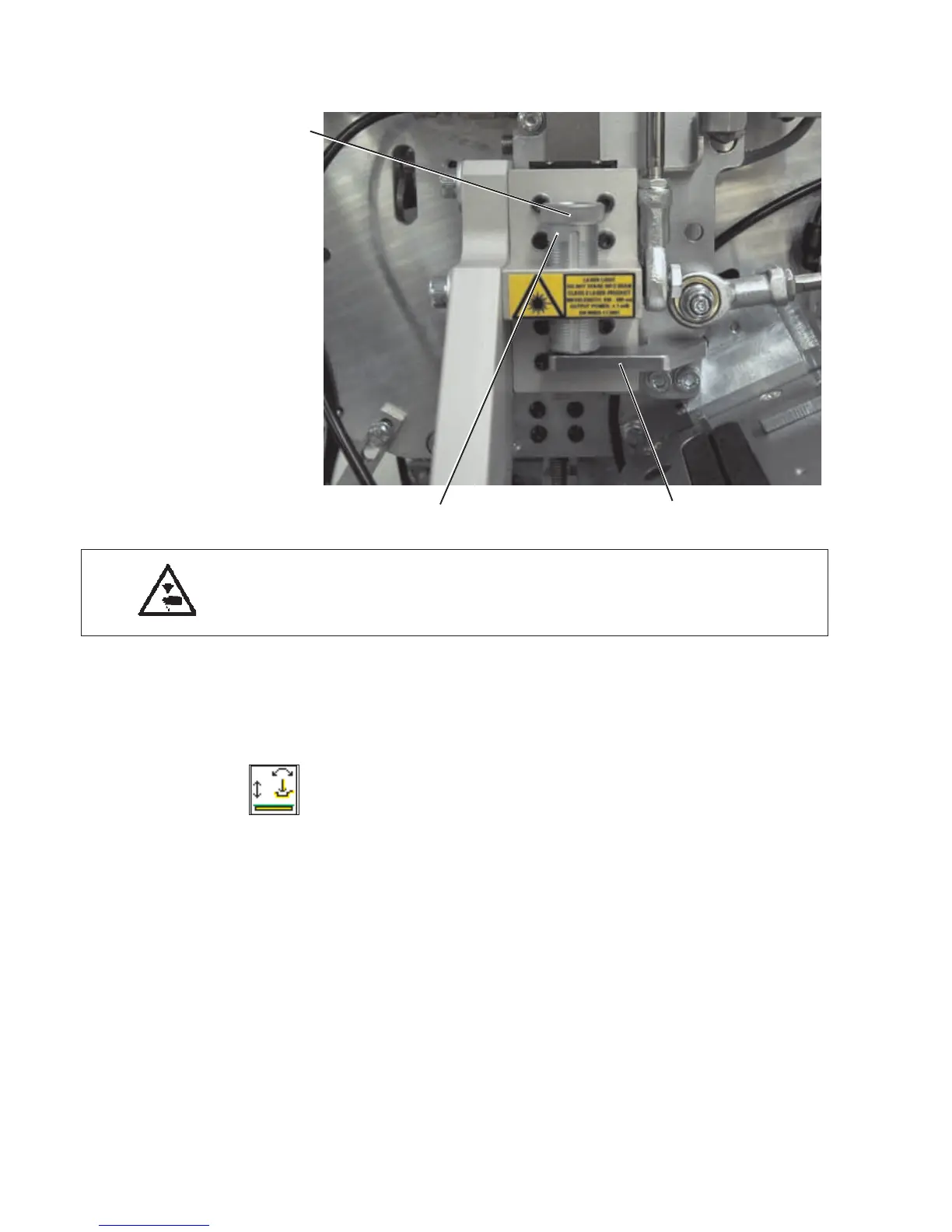

Turn the stop screw 2 in such a way that - when the pick-up folder
is lowered - the stop screw abuts on stop 1 (make sure that is
snaps in).
–
Adjust the spring pressure with screw 3 (within stop screw 2) so
that the pick-up folder is pressed back.
104
21
3
