DURKOPP ADLER 745-34-2 Installation Instructions

3
6. Laser markings
Class 745-34-2 is equipped with 5 standard lasers for marking the
positioning points. Laser 1 marks the front positioning point for the left
or right workpiece, laser 5 marks the rear positioning point. Laser 3
marks the middle of the pocket opening.
The sewing area is limited by the markings 1 and 5.
Three further lasers can be mounted additionally.
The fastening positions of the lasers are described in chapter 6.1.
An adjustment template is available under order number 0745 290020.

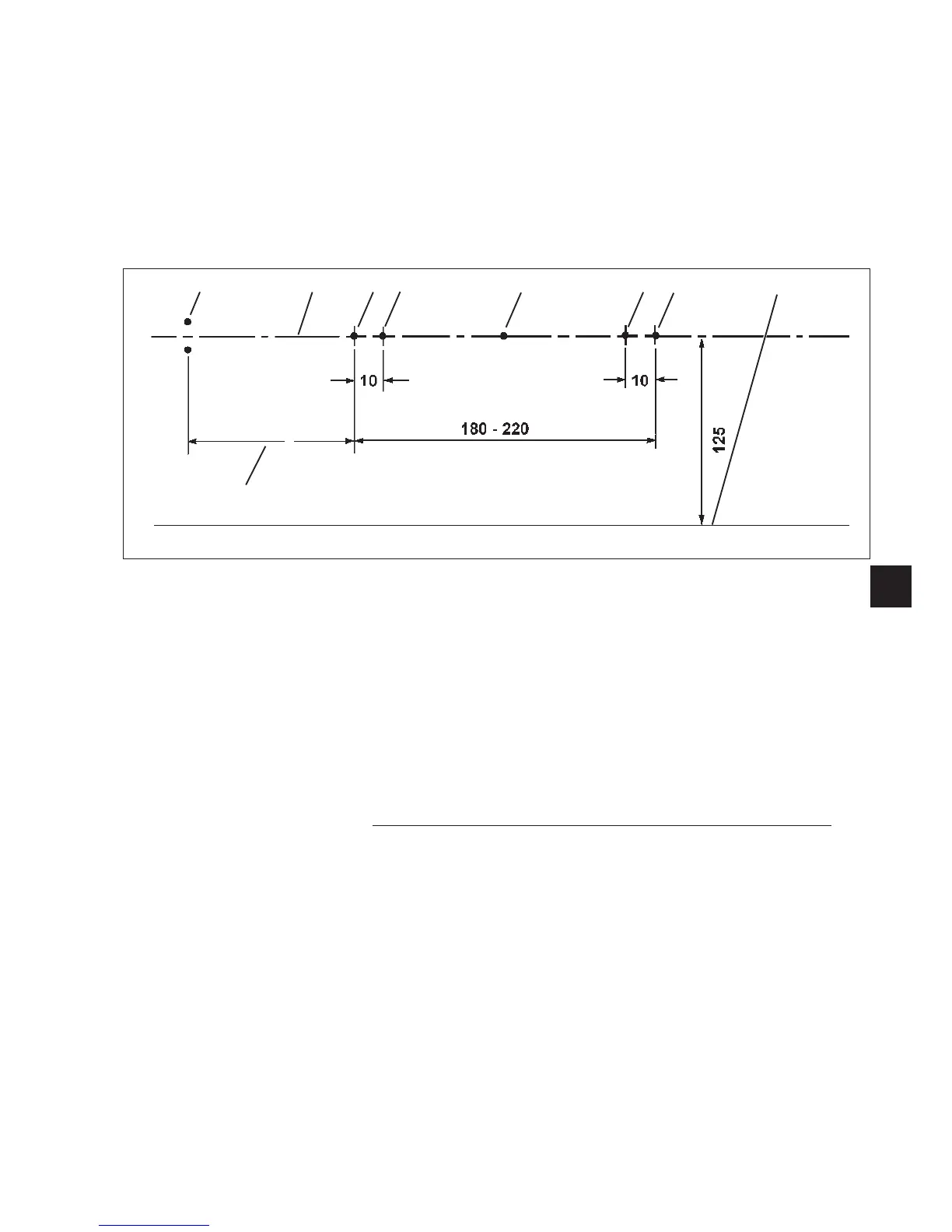

Spacing A
1 : Marking of the front positioning point
3 : Middle of pocket opening
5 : Marking of the rear positioning point
6 : Measuring line
7 : Needles
8 : Cutting line
2 : Auxiliary line for positioning
4 : Auxiliary line for positioning
Spacing A
Class Sew ing length (mm) Spacing A (mm)
745-34-2 A 180 111
745-34-2 A 200 91
745-34-2 A 220 141
745-34-2 B 180/200/220 166
745-34-2 B 200 146
745-34-2 D 180 132
745-34-2 F 180/200/220 166
745-34-2 F 200 146
75
7812 3 456
