2.5.6 Needle protection
Standard checking

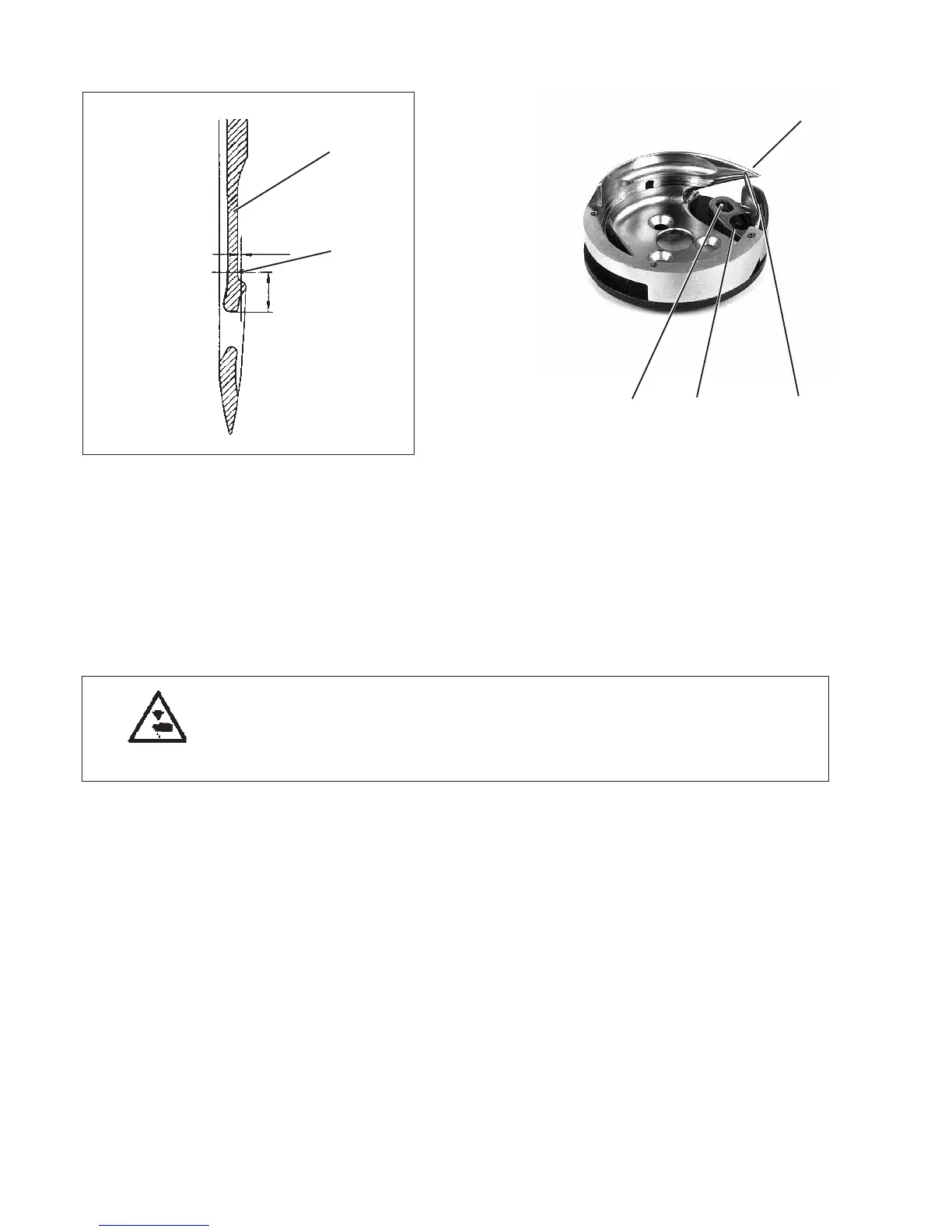

The needle protection 1 avoids that the needle 4 is deflected into the
path of the hook tip 5.
Before the hook tip 5 reaches the needle, the needle point must abut
on the needle protection 1.
It must not be possible to push the needle into the path of the hook
tip 5.
When the hook tip is at the level of the middle of the needle, there must
be a distance of 0.1 mm between the hollow groove of the needle and
the hook tip 5.
Caution: Danger of injury !
Switch off the main switch.
Check and adjust the needle protection only with the sewing unit
switched off.
–
Move the needle in the hook tip area and check whether it abuts on
the needle protection.
Correction
–
Screw off the throat plate.
–
Remove the hook cover and the bobbin case bottom parts
(see chapter 2.5.5).
–
Loosen screw 2.
–
Adjust the needle protection 1 by turning the eccentric bolt 3.
–
Tighten screw 2.
–
Mount the bobbin case bottom parts and the hook cover.
–
Screw on the throat plate.
34
32 1
4
5
0,1 mm
5
