DURKOPP ADLER 745-34-2 Installation Instructions

2.4 Needle bar linkage and disconnectable needle bars
2.4.1 Removing the needle bar linkage
Caution: Danger of injury!
Switch off the main switch.
Remove the needle bar linkage only with the sewing unit switched off.
–

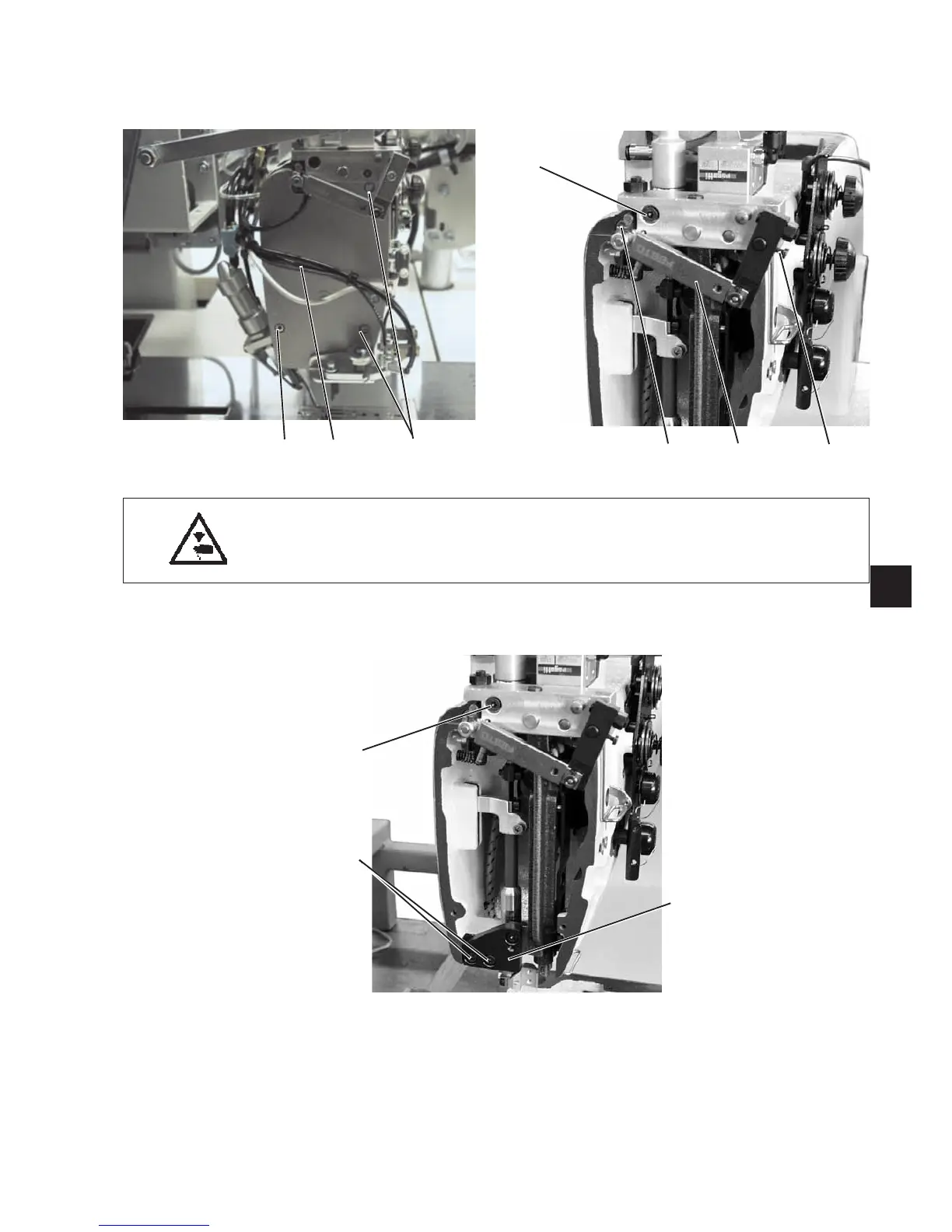

Unscrew the screws 1 and take off head cover 2.
–
Loosen the screws 3 and 5 and pull off the thread puller 4.
–
Unscrew screws 8.
–
Unscrew screw 6.
15
3
54 3
6
6
8
7
12 1
