5.6 Exchanging the corner knives
Caution: Danger of injury !
Switch off the main switch.
Exchange the corner knife station only with the sewing
unit switched off.
Danger of cuts.
Do not reach into the sharp edges of the corner knives.
Blunt knives are to be exchanged against a set of knives included in
the accessories.
The corner knives can be ordered under the following order numbers:
Set of corner knives Order number
Needle distance = 10mm 2 x 0745 339100, 2 x 0745 339110
Needle distance = 12mm 2 x 0745 339120, 2 x 0745 339130
Needle distance = 14mm 2 x 0745 339140, 2 x 0745 339150
Needle distance = 16mm 2 x 0745 339160, 2 x 0745 339170
Needle distance = 20mm 2 x 0745 339200, 2 x 0745 339210
Needle distance = 24mm 2 x 0745 339240, 2 x 0745 339250
Needle distance = 26mm 2 x 0745 339240, 2 x 0745 339250
Needle distance = 30mm 2 x 0745 339240, 2 x 0745 339250
–

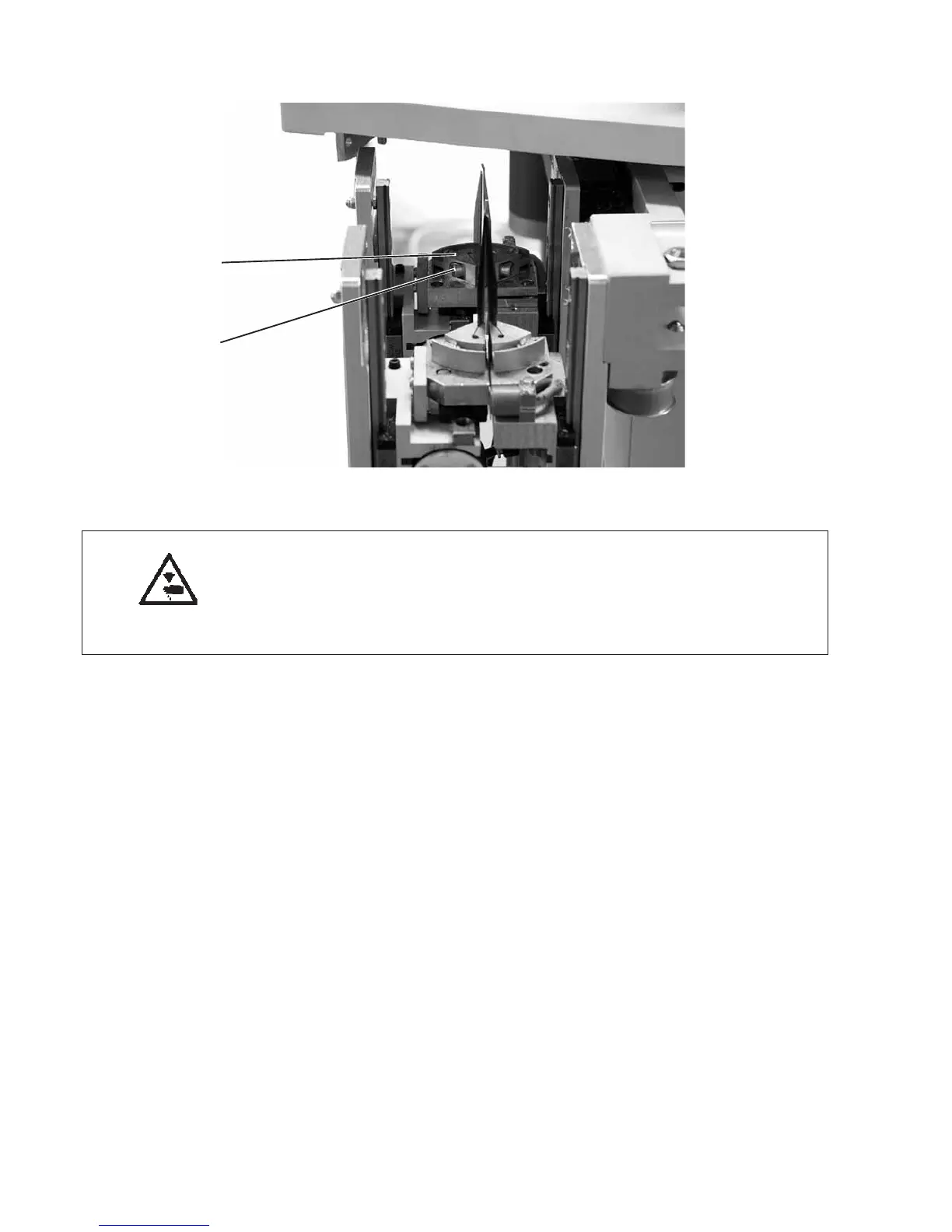

Swing the corner knife station out.
–
Loosen screw 2.
–
Take off the old corner knife.
–
Insert a new corner knife in the knife holder 3.
–
Tighten screw 2.
–
Swing the corner knife station back.
74
3
2
