2.4.10 Exchanging the needle holder
Caution: Danger of injury !
Switch off the main switch.
Check and exchange the needle holder only with the sewing unit
switched off.
ATTENTION !

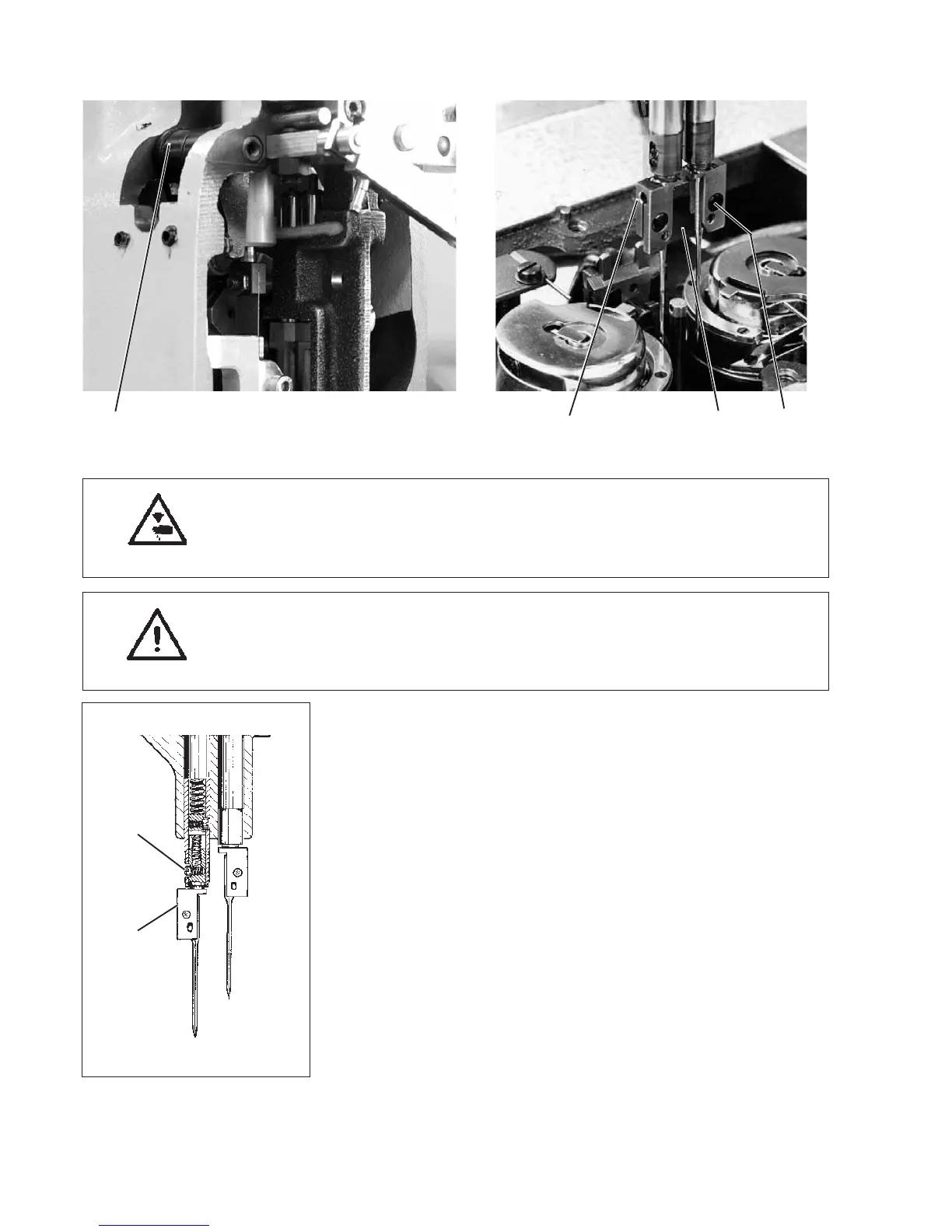

For changing a needle holder the needle bar in question must be in
position “down”.
The other needle bar has to be disconnected.
–
Loosen the screw 3.
–
Remove the needle from needle holder 2.
–
Press down latch 1 for connection of the needle bar and hold it
pressed.
–
Switch off the needle bar by turning the handwheel.
–
Keep on turning the handwheel.
The actuated needle bar switches off.
–
Keep on turning the handwheel until the needle bar is in position
“down”.
–
Loosen the screw 4.
–
Unscrew the needle holder 2 from the needle bar.
–
Screw in new needle holder.
–
Adjust the height of the needle holder (see chapter 2.5.4).
–
Tighten the screw 3.
–
Check the penetration of the needle into the needle hole.
–
Check lateral distance of the needle to the hook
(see chapter 2.5.5).
The exchange of the second needle holder is done likewise.
