5. Knives for corner incision
Caution: Danger of injury !
Do not reach into the area of the corner knives.
The corner knives shooting up can cause severe cuts.
Carry out adjusting operations with utmost caution when the s ewing
unit is running.

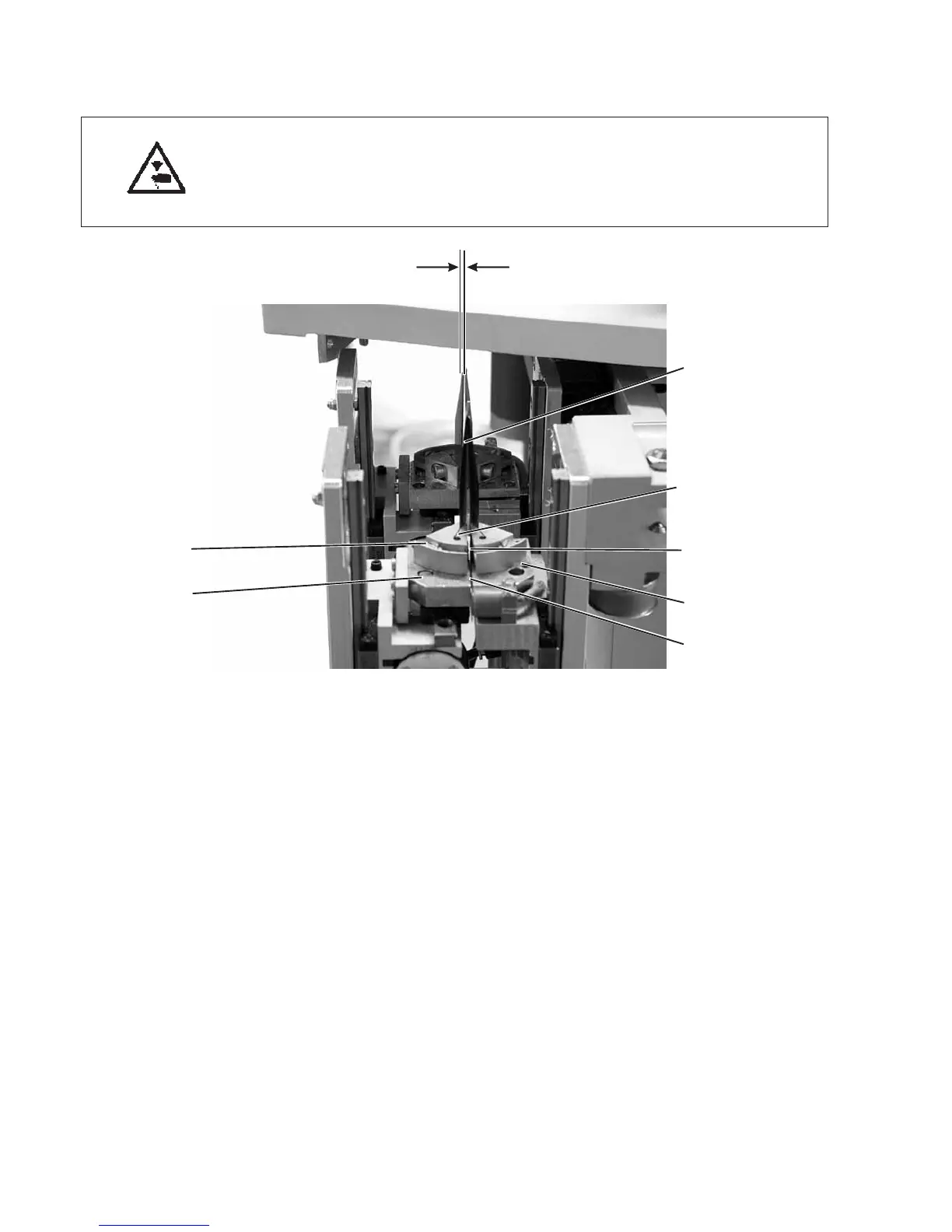

5.1 Presetting
In order to be able to precisely adjust the position of the corner
knives 1 all four corner knives are at first brought in a basic position.
–
Loosen screw 6.
–
Turn the corner knife holder 2 in such a way that the face side 3 is
in a line with the face side 4 of the knife support 5.
–
Tighten screw 6.
–
Adjust the other three knife holders as described.
–
Adjust the grub screw 7 in such a way that the edges of the
opposite knives have a distance of 0.1 to 0.3 mm.
–
Grub screw 7 to the right: knives closer together
–
Grub screw 7 to the left: knives wider apart
–
Adjust the other knives likewise.
68
6
5
1
2
3
7
4
0,1 - 0,3 mm
