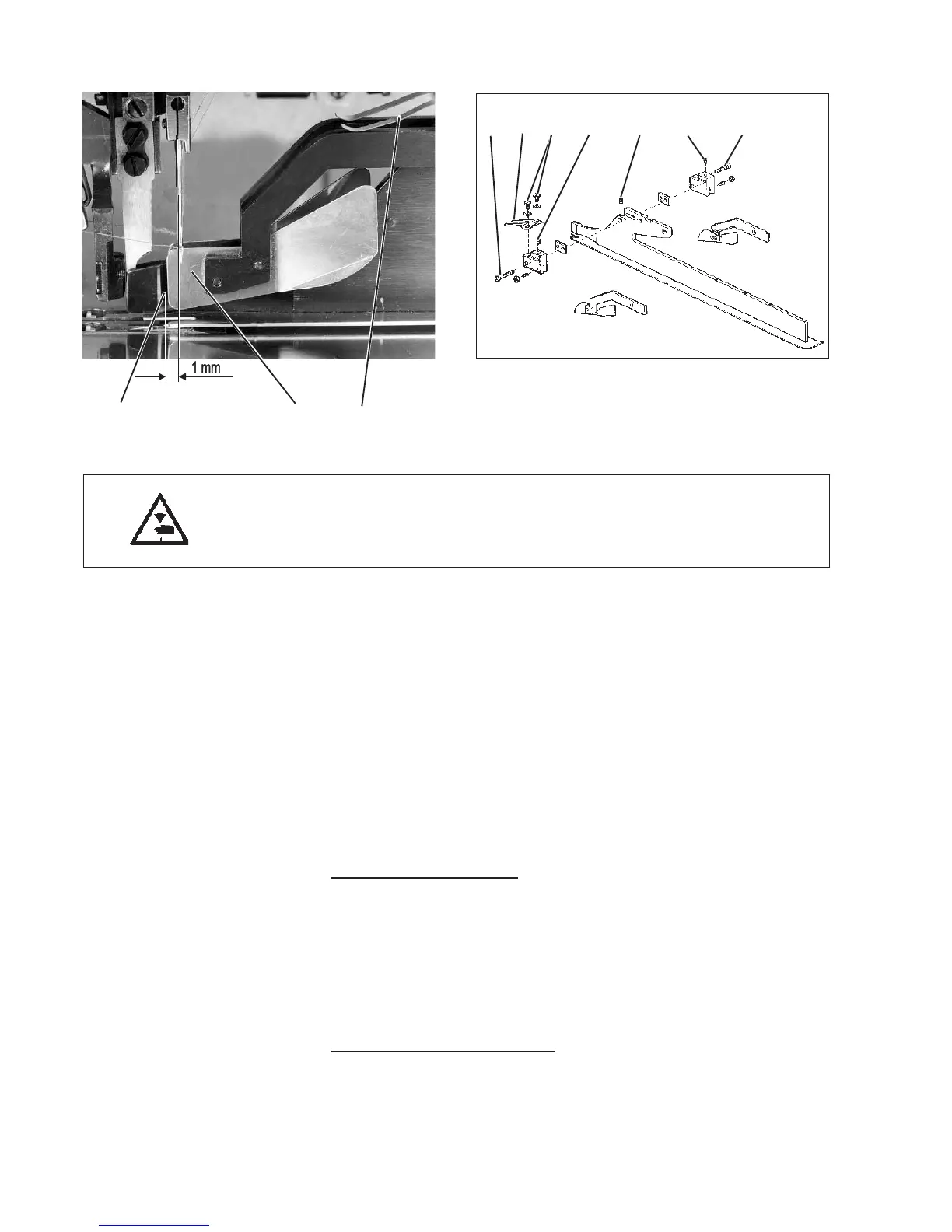

11.5 Aligning the guide plates at the folder
Caution: Danger of injury!
Switch off the main switch.
Adjust the guide plates only with the sewing unit switched off.
Standard checking
When the folder is lowered, the edges 3 of the guide plates 2 must
project from the needles by approx. 1 mm to the back.
The leaf springs 1 hold the guide plates down by a low pressure on the
folder sole.
The pressure must be set in such a way that the springy guide plates
can be easily lifted by the fed piping strip or by the flap. The height of
the guide plates over the soles has to be set in accordance with the
fabric.
–
Lower the folder.
–
Check the position of the guide plates to the needles.
–
Check the spring pressure of the guide plates.
Correction
Aligning the guide plates
–
Loosen screws 4.
–
Loosen core pin 7.
–
Adjust the guide plates in longitudinal direction.
–
Adjust the height of the guide plates with core pin 6.
–
Tighten screws 4.
–
Tighten core pin 7.
Adjusting the spring pressure
–
Loosen screws 5.
–
Adjust the pressure by aligning the leaf springs 1.
–
Tighten screws 5.
90
321
415676 4
