DURKOPP ADLER 745-34-2 Installation Instructions

11. Folder (working method A)
11.1 Proper fastening
Caution: Danger of injury !
Switch off the main switch.
Remove and mount the folder only with the sewing unit s witched off.
Standard

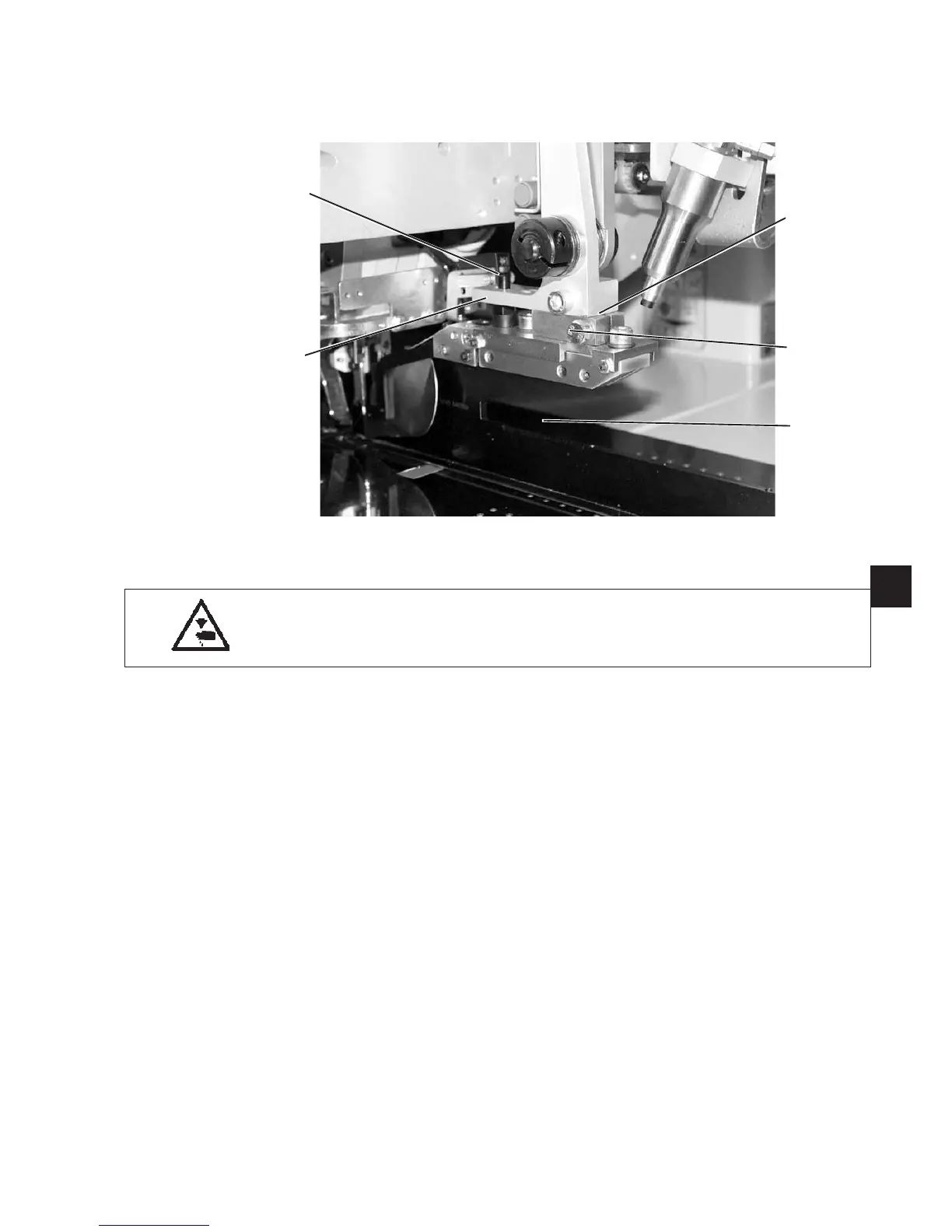

The folder 3 has to be pushed upwards until it abuts on the clamping
collar 1.
The pin 5 must stick in the drill-hole of the operating lever 4.
Correction
–
Loosen screw 2.
–
Push the folder 3 upwards as far as it will go.
–
Tighten screw 2.
3
85
5
4
1
2
3
