DURKOPP ADLER 745-34-2 Installation Instructions

12. Folders and pick-up folders (working methods B, D, F)
12.1 Proper fastening
Caution: Danger of injury !
Switch off the main switch.
Remove and mount the folder only with the sewing unit s witched off.
Standard

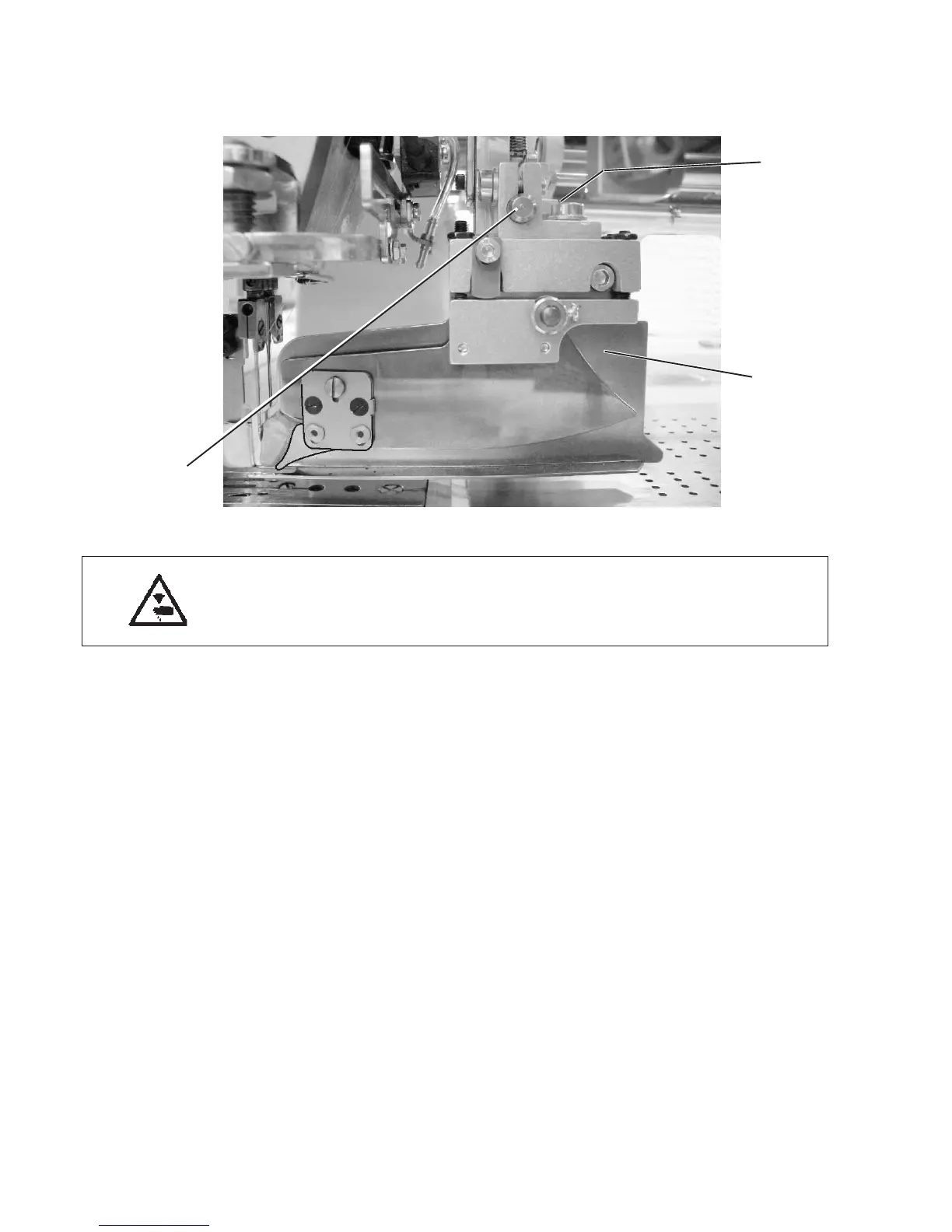

Folder 2 is positioned correctly when the fastening screw 1 pushes into
the insertion bore of pin 3.
Correction
–
Loosen screw 1.
–
Pull the folder 2 out.
–
Check whether the insertion bore of pin 3 points towards the
fastening screw 1.
–
Reinsert the folder and tighten with screw 1.
92
1
2
3
