12.8 Adjusting the guide plates at the pick-up folder
Standard checking
The guide plates at the pick-up folder have to be adjusted in such a
way that the workpieces can pass the junction between folder and
pick-up folder without hindrance. When the pick-up folder is moving,
the guide plates must never touch.
The distance between the guide plates at folder 3 and pick-up folder 2
should amount to approx. 0.3 - 0.5 mm. The guide plate height above
the sole has to be set according to the material thickness / flap. The
standard dimension is 8 mm.
Correction
–
Loosen four nuts 1.
–
Adjust the guide plates laterally in such a w ay that the inner
surfaces of the guide plates at the pick-up folder and the folder are
flush.
–
Adjust the guide plate height so that there is a distance of 8 mm
between the lower edge of the guide plate and the sole.
–
Set the guide plate distance to 0.3 - 0.5 mm.
–
Tighten four nuts 1.
–
Adjust the other guide plate likewise.

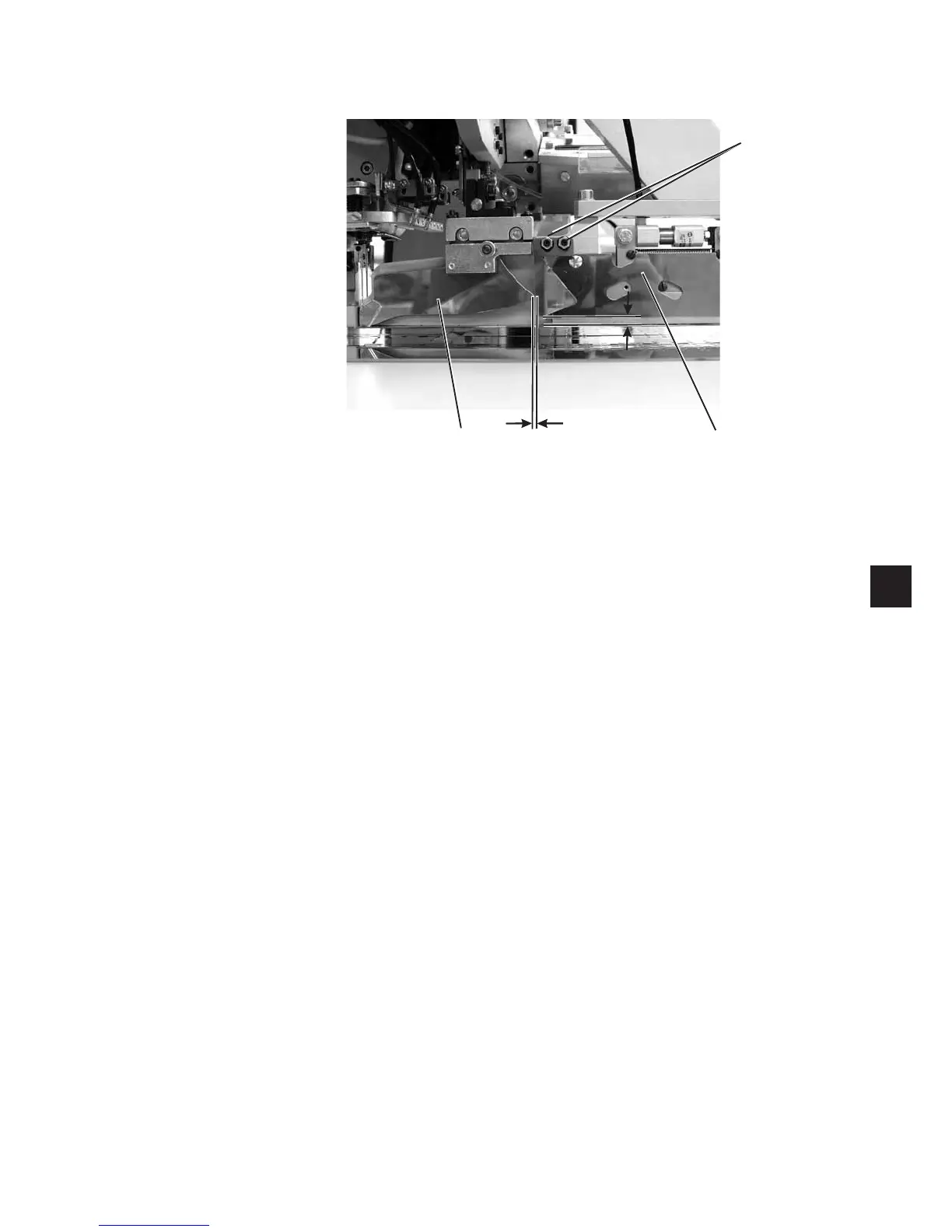

3
103
3 0,3-0,5 mm 2
1
8mm
