2.12 Oil lubrication
Caution: Danger of injury !
Oil can cause skin rashes.
Avoid longer skin contact.
After contact wash yourself thoroughly.
ATTENTION !
The handling and disposal of mineral oils is subject to legal
regulations.
Deliver used oil to an authorized collecting station.
Protect your environment.
Be careful not to spill any oil.
Oil the sewing unit exclusively with lubricating oil DA-10 or an
equivalent oil with the following specification:
–
Viscosity at 40° C: 10 mm²/s
–
Ignition point: 150° C
DA-10 is available from the DÜRKOPP ADLER AG sales offices under
the following parts numbers:
250-ml-Container: 9047 000011
1-Litre-Container: 9047 000012
2-Litre-Container: 9047 000013
5-Litre-Container: 9047 000014

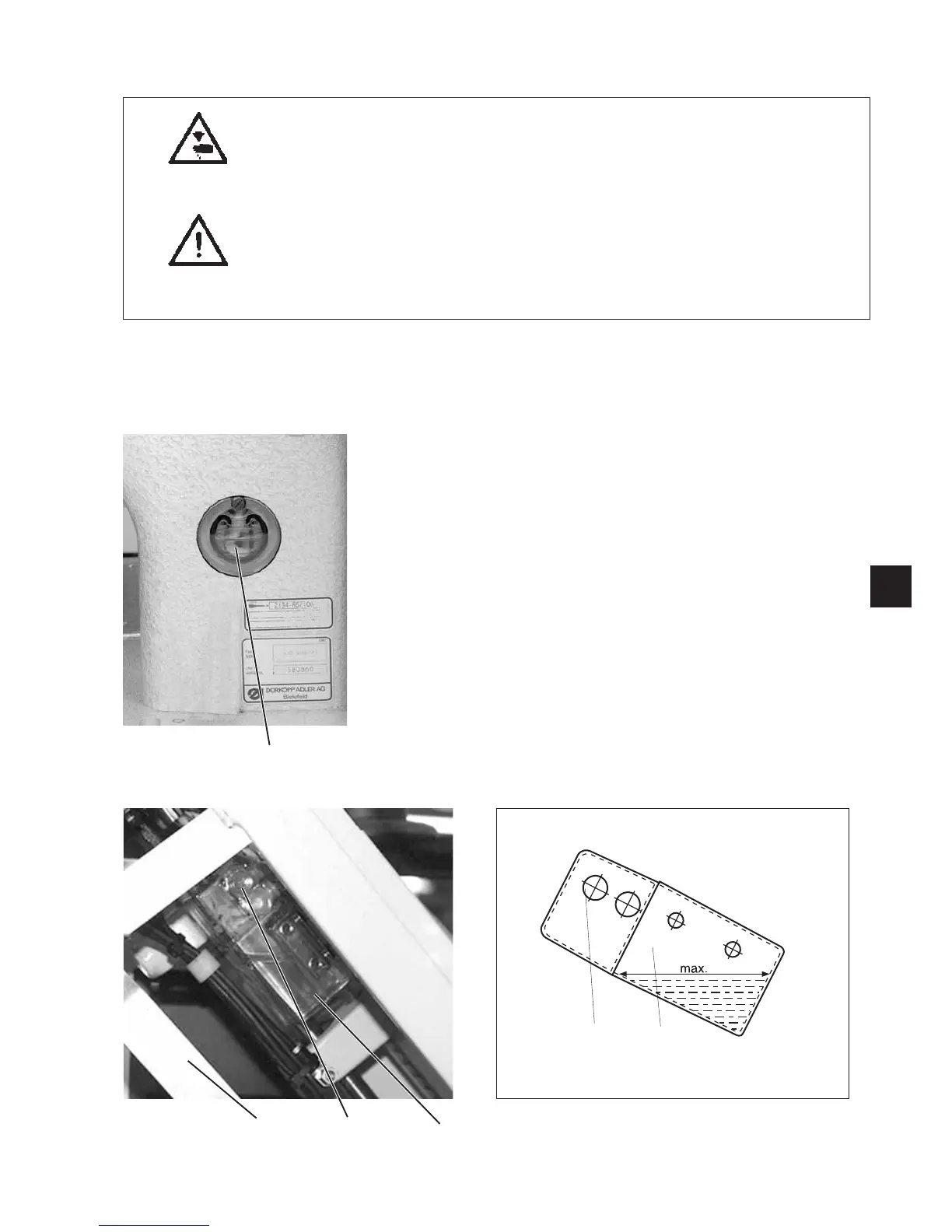

Checking the oil supply in the oil reservoir 3 for lubrication of the
machine head
–
Raise the machine head (see chapter 2.1).
–
The oil level in the oil reservoir 3 must not drop below the marking
“Min”.
–
If necessary, fill up oil up to the marking “Max” through the
drill-hole in the inspection glass.
Checking the oil supply in the oil reservoir 6 for the hook
lubrication
–
Raise the machine head (see chapter 2.1).
Fill the oil reservoir 6 with oil through nipple 5 up to the marking “Max”.
(see sketch).
53
3
3
45 6
5
6
