DURKOPP ADLER 745-34-2 - 8 Aligning the Folding Station Plate as to the Measuring Line

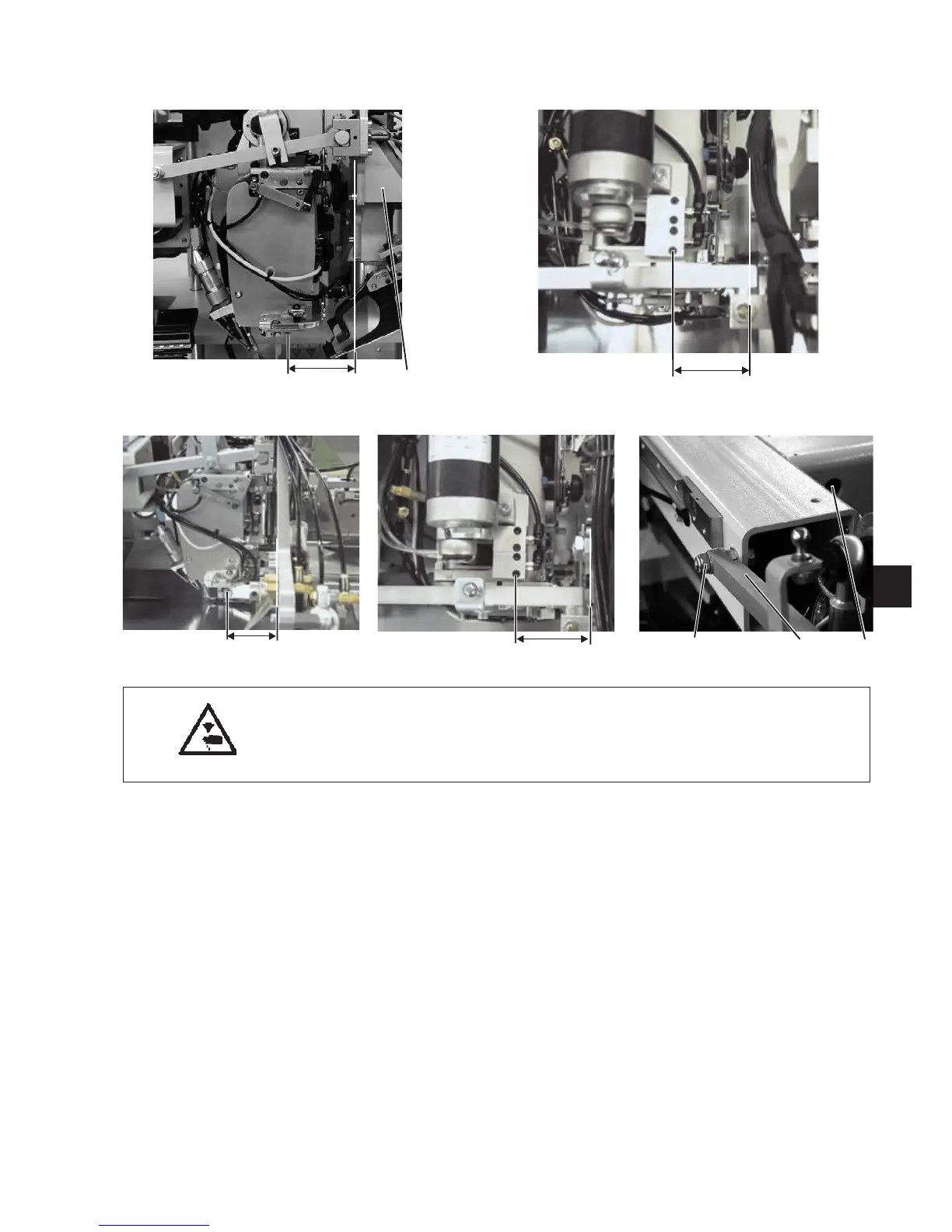

8. Aligning the folding station plate as to the measuring line
Method A
Method D, B, F
Caution: Danger of injury !
Switch off the main switch.
Adjust the folding station plate of the loading station only with the
sewing unit switched off.
Standard checking
The distance between the middle of the needle and the inner side
of the folding station plate 1 must amount to 75 mm or 79 mm.
Between the bores on the machine arm and the inner side of
the folding station plate 1 there should be a distance
of 60 mm or 64 mm ± 0 .5.
–
Measure the distance between the folding station plate 1 and the
bores when the loading station is swung in.
Correction
–
Push the covering cap to the back.
–
Loosen the bolt.
–
Loosen the bolts 5.
–
Shift the ratchet lever 4 to the elongated hole 3.
–
Tighten the bolts 5.
–
Push the covering cap forward.
3
81
64 +/- 0,5 mm
60 +/- 0,5 mm
75 mm
543
79 mm 1
