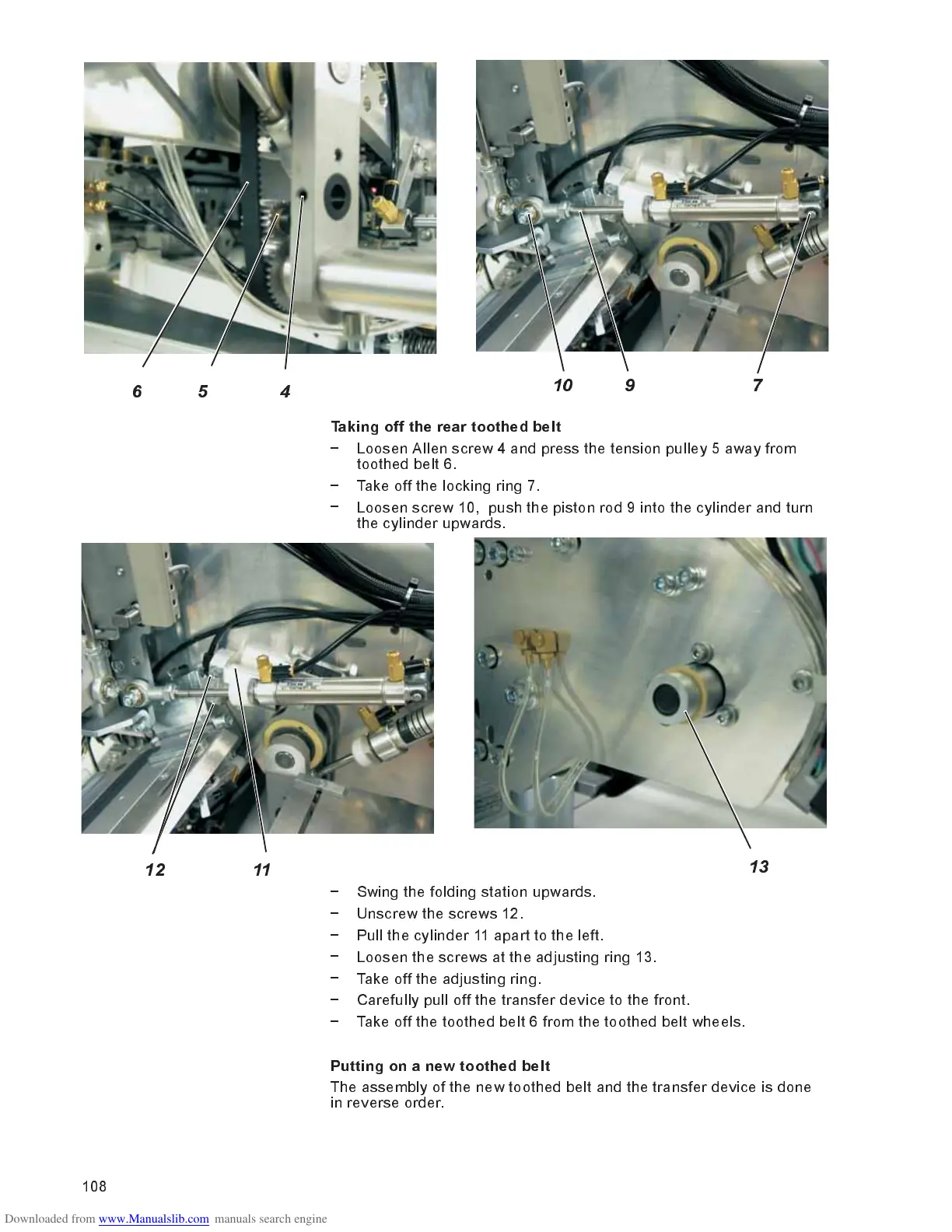

Taking off the rear toothed belt
Loosen Allen screw 4 and press the tension pulley 5 away from
toothed belt 6.
Take off the locking ring 7.
Loosen screw 10, push the piston rod 9 into the cylinder and turn
the cylinder upwards.
Swing the folding station upwards.
Unscrew the screws 12.
Pull the cylinder 11 apart to the left.
Loosen the screws at the adjusting ring 13.
Take off the adjusting ring.
Carefully pull off the transfer device to the front.
Take off the toothed belt 6 from the toothed belt wheels.
Putting on a new toothed belt
The assembly of the new toothed belt and the transfer device is done
in reverse order.
108
65 4
10 9 7
13
12 11
