Correction
–
Remove the throat plate.
–
Remove the needles from the needle holders.
Hint
For turning the needle holders one needle bar each has to be
disconnected.
–
Move the needle bars by handwheel nearly up to the upper dead
center.
–
Press down pawl 6 with a screwdriver and hold it pressed.
–
Turn handwheel again.
The pawl pressed down switches the needle bar off.
–
Release pawl 6.
–
Push the adjusting pin 4 into the needle holder as far as it will go.
–
Tighten the screw 7.
–

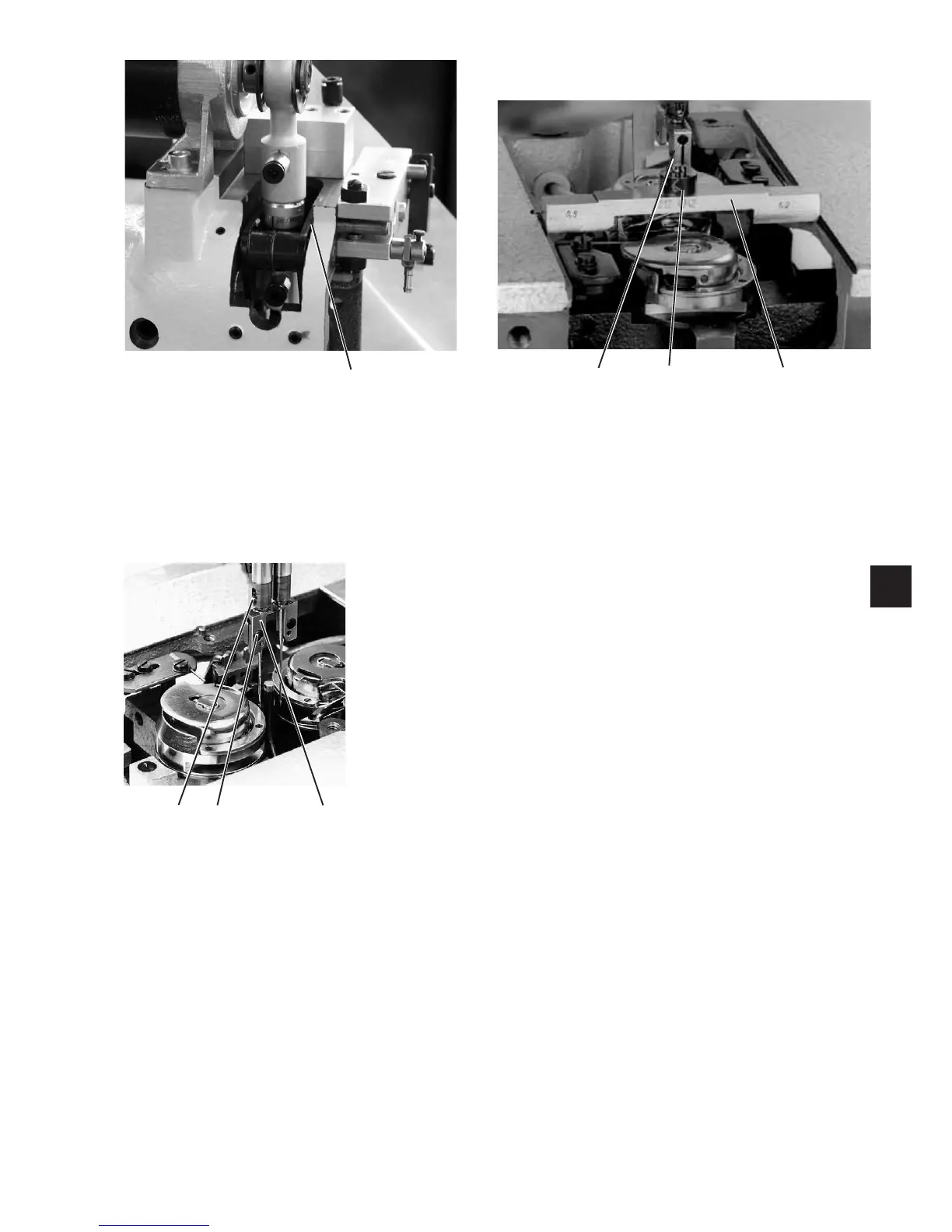

Place the measuring bridge 3 on the throat plate support.
–
Move the needle bar in looping stroke position and arrest it with the
locking pin.
It should be possible to push the measuring bridge under the
adjusting pin 4 with the smallest possible clearance.
–
Unscrew screw 8.
–
Set the height of needle holder 9 correspondingly.
For this purpose turn the needle holder. A complete rotation (360°)
is possible.
–
Align the needle holders.
The fronts of the needle holders must point to the front and be at
the same level.
–
Insert screw 8 in the needle holder and tighten.
–
Remove the locking pin and the adjusting pin.
–
Reconnect the needle bar.
For this purpose move the needle bar by handwheel above the
upper dead center (pawl 6 not actuated).
–
Adjust the second needle holder likewise.
31
3
6
87 9
54 3
