DURKOPP ADLER 745-34-2 - Page 63

Setting the toothed belt course
–

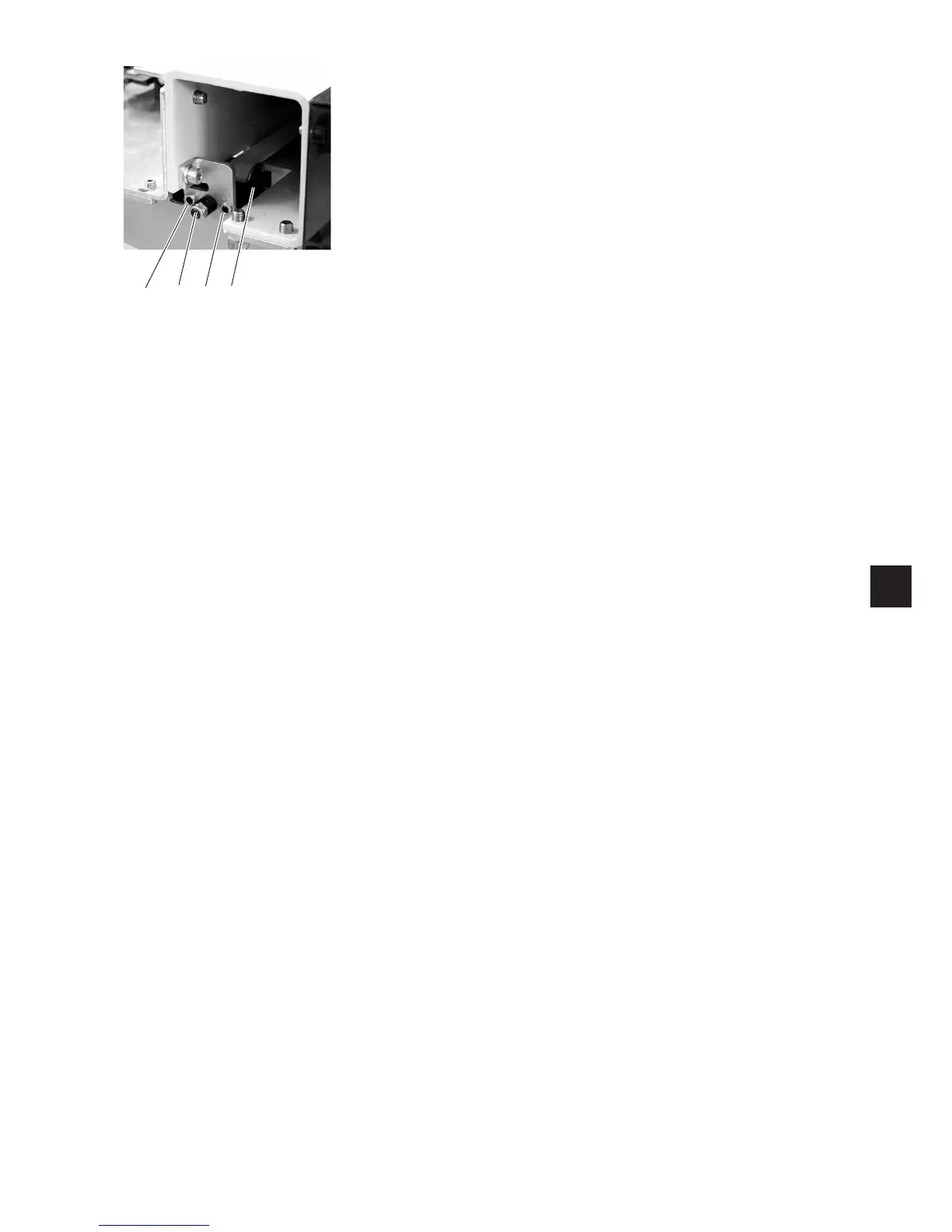

It is possible to adjust the course of the toothed belt on the belt
pulley 5 through the screws 6 and 8. The toothed belt 3 should
run in the middle of the belt pulley.
–
Set the belt pulley through screws 6 and 8.
