3.3.5 Removing and installing the handwheel and drive belt cover

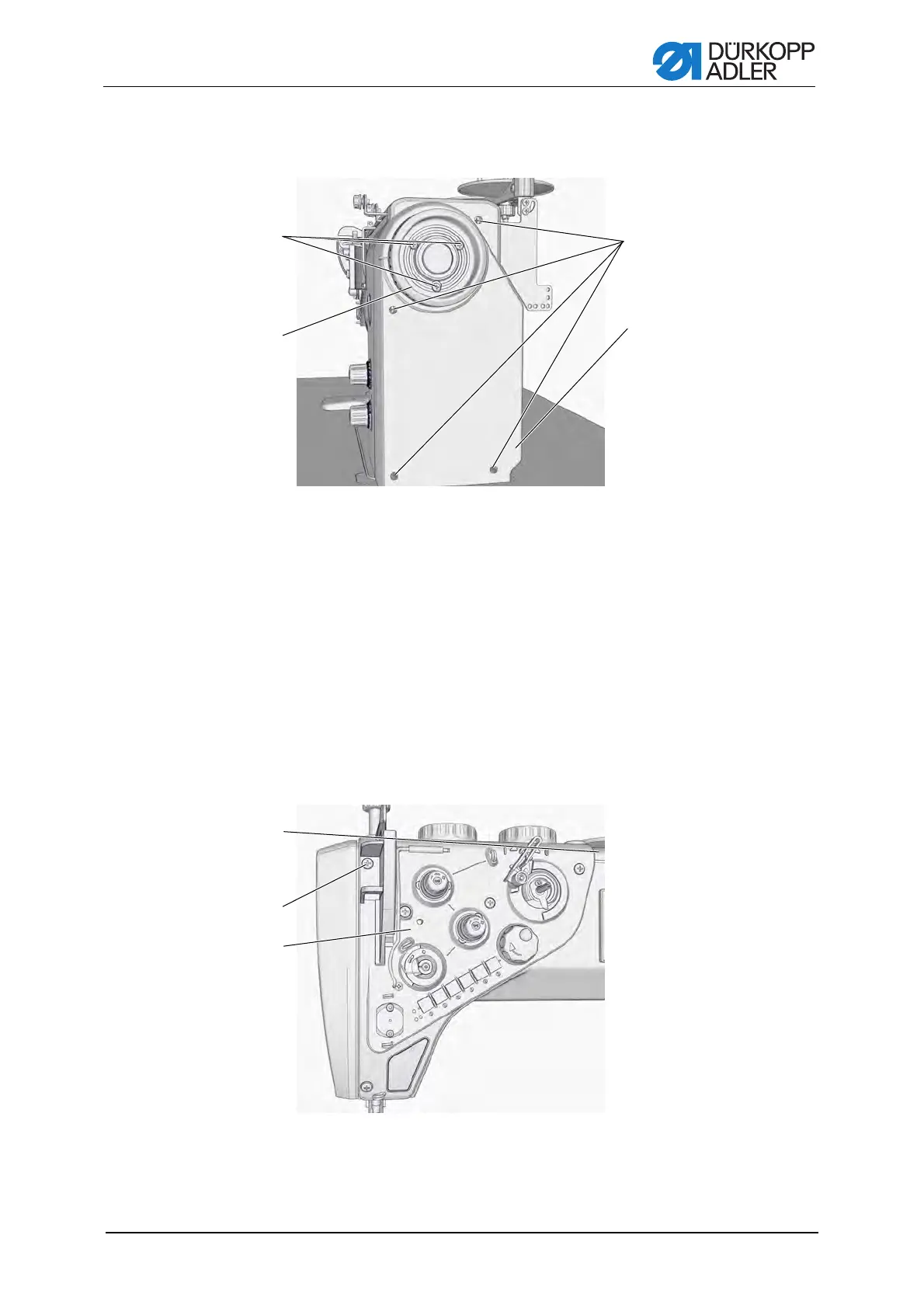

Figure 5: Removing the drive belt cover
Removing the drive belt cover
1. Loosen the screws on the handwheel (1).
2. Remove the handwheel (2).
3. Loosen the screws on the drive belt cover (4).
4. Remove the drive belt cover (3).
3.3.6 Removing and installing the thread tension plate
Figure 6: Removing the thread tension plate
(1) - Handwheel securing screws
(2) - Handwheel
(3) - Drive belt cover
(4) - Drive belt cover securing screws
཰
ཱ
ི
ཱི
(1) -Upper right cover
(2) - Thread tension plate securing screws
(3) - Thread tension plate
཰
ཱ
ི
