3.3.9 Removing and installing the feed dog

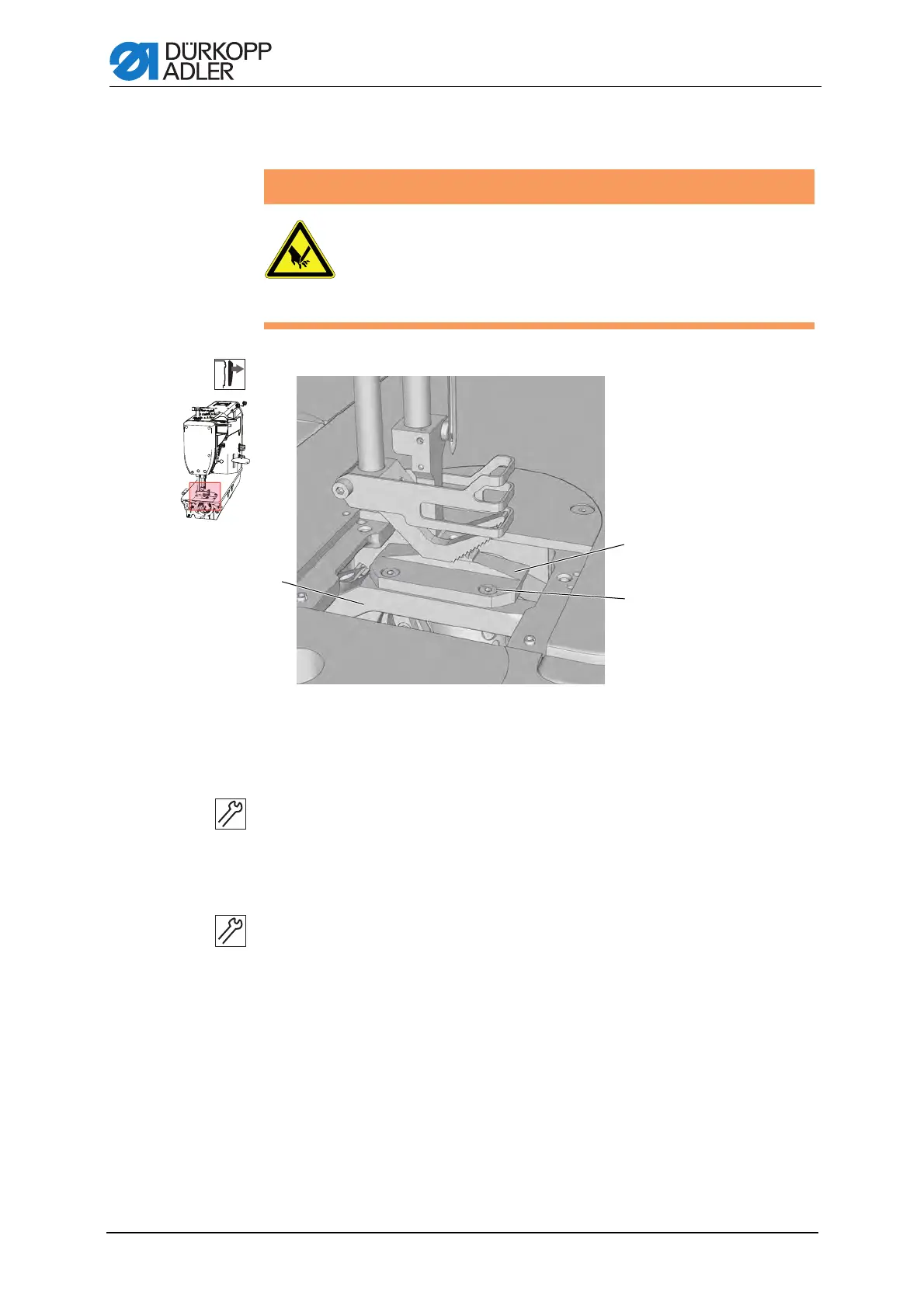

Figure 9: Removing and installing the feed dog
Removing the feed dog
1. Remove the throat plate ( page 15).
2. Loosen the screws (2).
3. Take the feed dog (3) off the feed dog carrier (1).
Installing the feed dog
1. Place the feed dog (3) on the feed dog carrier (1) and lightly tighten the
screws (2).
2. Installing the throat plate ( page 15)
3. Install the feed dog (3) so that the clearance from the throat plate is the
same on both sides.
4. Tighten the screws (2).
WARNING
Risk of injury
Risk of crushing injuries and stab wounds from moving and
sharp parts.
Switch the sewing machine off before you remove or refit the
feed dog.
(1) - Feed dog carrier
(2) - Screws
(3) - Feed dog
ཱ
ི
