12 Adjusting the foot stroke
12.1 Adjusting the foot stroke generated by the hand lever
The hand lever (1) permits the feet to be raised to the height of 14 and
20 mm. The extent of the two strokes is determined by the dimensions of
the elements of the lift mechanism.
Correct setting
The presser foot must lie on the throat plate, the hand lever (1) must be in
the inactive position:
The lift lever (3) has a guaranteed clearance of 0.3 to 0.5 mm to the
driving dog (4).
Cover
• Head cover (
page 12)

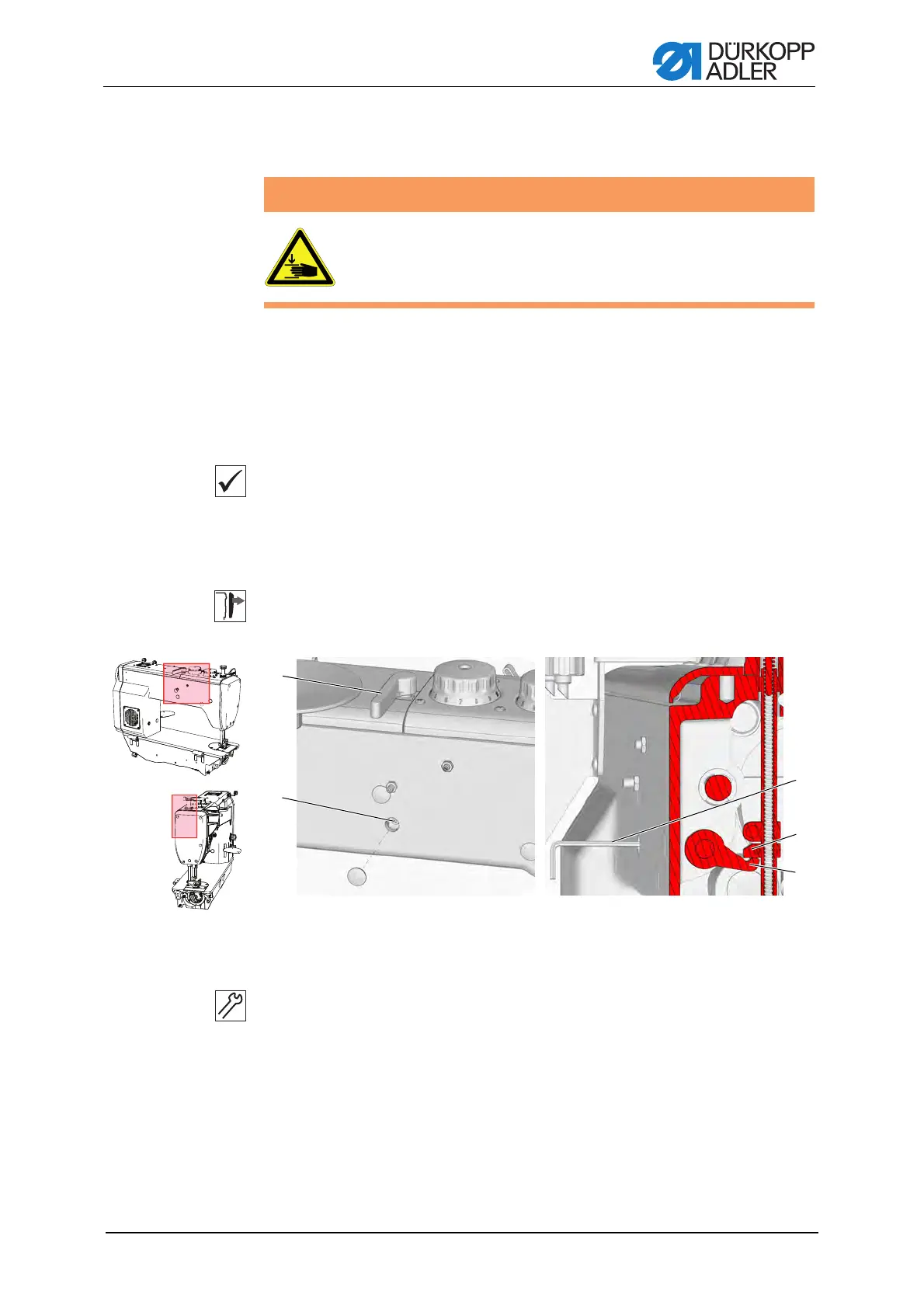

Figure 45: Setting the thrust movement of the feed dog
Setting steps
1. Put the handwheel into the 0° position ( page 20). The presser foot
must be lying against the throat plate.
2. Undo the screw (2) and leave the wrench (5) in it.
3. Turn the lift lever (3) so that there is a clearance of 0.3 to 0.5 mm between
the lift lever (3) and the driving dog (4).
4. Tighten the screw (2).
WARNING
Risk of injury
Switch the machine off before checking or adjusting the stroke
of the feet on the machine.
(1) - Hand lever
(2) - Screw
(3) - Lift lever
(4) - Driving dog
(5) - Hexagon wrench
ཱ
ི
ཱི
ུ
