Adjusting the thread cut-off
78
Service instructions 967 - 00.0 - 12/2014
14.3 Adjust the position of the movable knife.
Correct setting
The axis (tip) of the needle (1) is at the left edge of the gully of the movable
knife (2).
If the stop lever (3) is in the park position:
The marking of the movable knife (7) will be covered by the blade of
the fixed knife (8).
Cover
Throat plate ( page 15)
Feed dog ( page 16)
Tilt the upper section ( page 10).

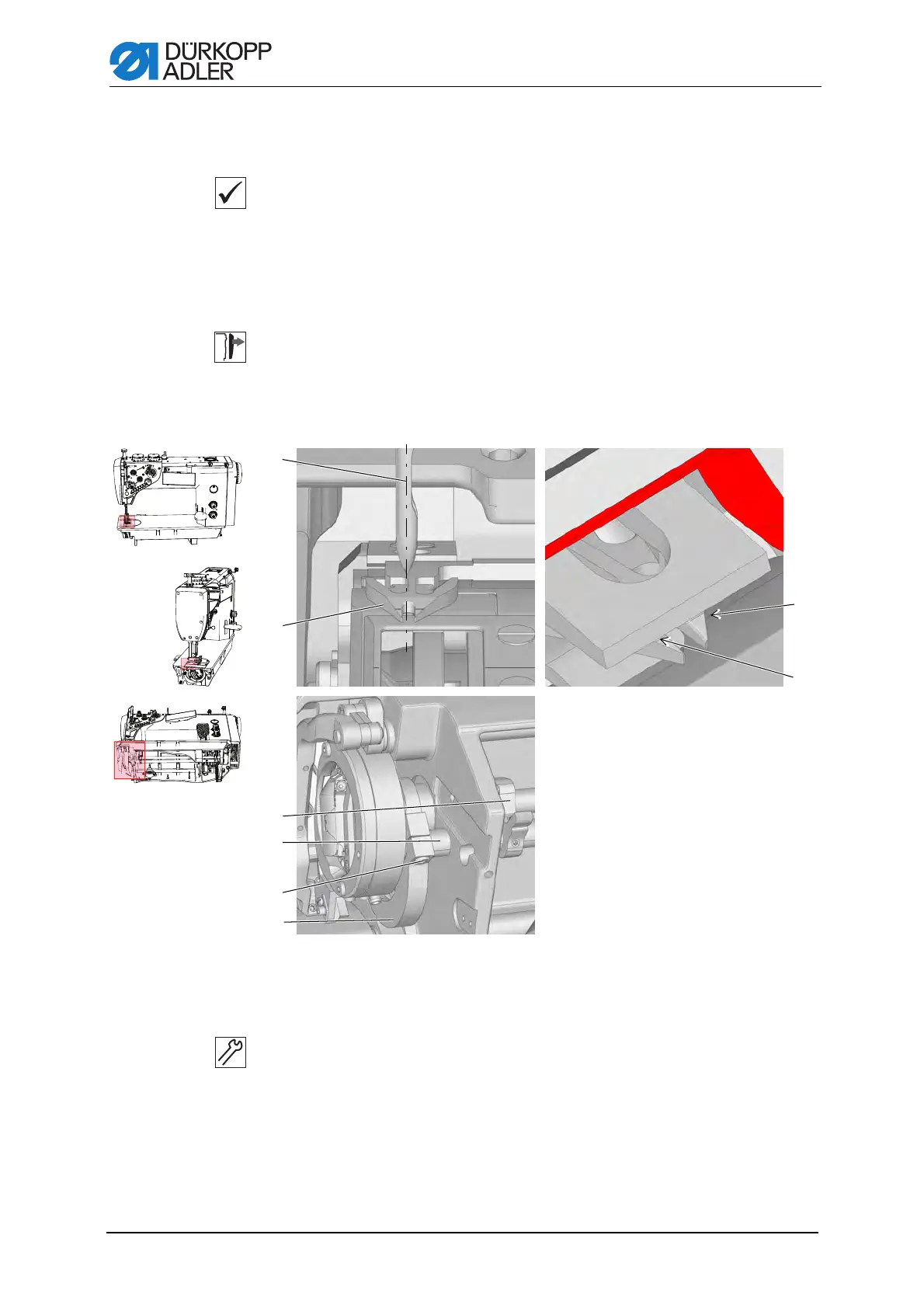

Figure 53: Adjusting the position of the movable knife.
Setting steps
1. Put the handwheel into the 270° position page 20.
2. Swing out the movable knife (2).
3. Loosen the screw (5).
4. Move the lever of the movable knife (6) aside, so that the axis (tip) of
the needle (1) is at the left edge of the gully of the movable knife (2).
(1) - Needle axis
(2) - Movable knife
(3) - Stop lever
(4) - Shaft
(5) - Screw
(6) - Lever of the knife
(7) - Marking on the knife
(8) - Fixed knife blade
